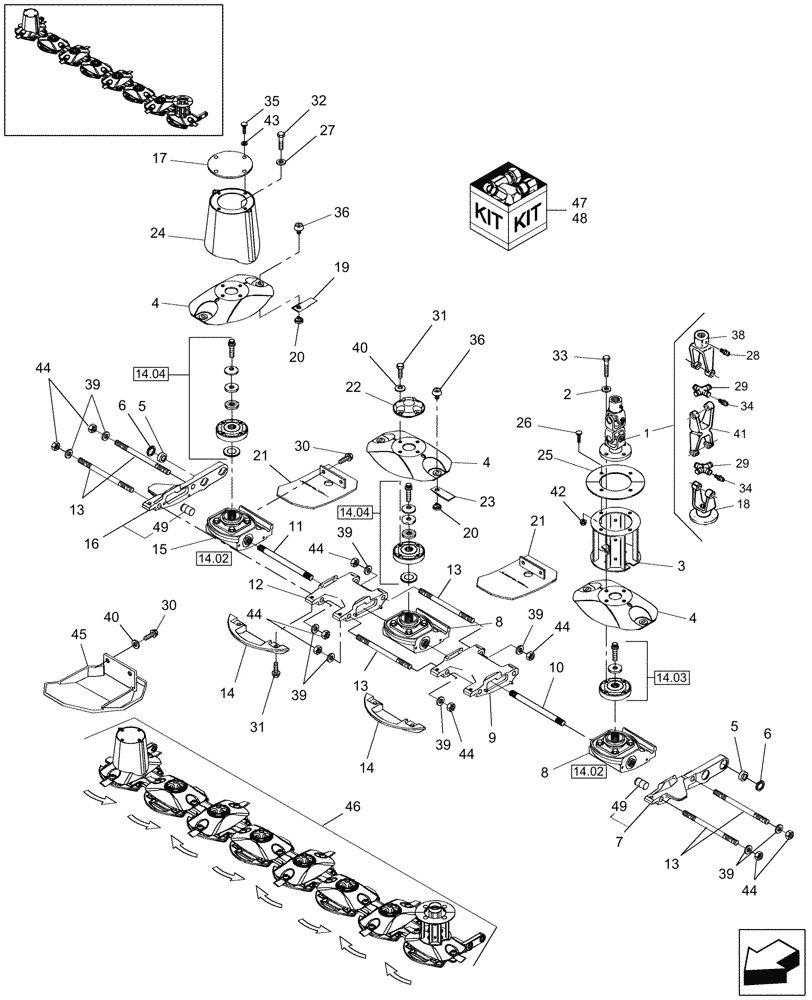

Запчасти Case IH TD102 (14.01) - CUTTERBAR (58) - ATTACHMENTS/HEADERS

1

87630200

PTO

1шт.

Not Included With Ref. 1 Cutterbar.

1шт.

2

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

8шт.

3

87040772

DRUM

1шт.

Not Included With Ref. 1 Cutterbar.

1шт.

4

87646406

DISC

8шт.

5

87659928

BUSHING,25.4mm ID x 36.5mm OD x 22.23mm L

Spherical

4шт.

6

271429

SNAP RING,1.625", Int, #162

4шт.

7

86640565

ARM

LH, Includes Ref. 49

1шт.

8

0C

ORDER COMPONENTS

Control, CW Module

4шт.

9

87044109

SPACER

Long, Includes Ref. 49

2шт.

10

86519039

SHAFT

268mm

2шт.

11

86519042

SHAFT

248mm

5шт.

12

87044107

SPACER

Includes Ref. 49

5шт.

13

86501934

THREADED ROD

16шт.

14

87047845

STONEGUARD

8шт.

15

0C

ORDER COMPONENTS

Control, CCW Module

4шт.

16

86631408

ARM

RH, Includes Ref. 49

1шт.

17

87014708

COVER

1шт.

18

87649389

YOKE

1шт.

19

86621873

BLADE

CCW, 14° Twist, Standard Equipment

8шт.

19

9847684

BLADE,Knife CCW

CCW, 7° Twist

8шт.

19

87029588

BLADE

CCW, 14° Twist, Over-serrated

8шт.

19

86532078

KNIFE

V

8шт.

20

87725066

NUT

16шт.

21

87047426

SKID/SHOE

8шт.

21

84141953

SKID/SHOE

HD HT, For Abrasive Soil Conditions

8шт.

22

87581143

CAP

See Fig. 14.03

6шт.

23

86621872

BLADE

CW, 14° Twist, Standard Equipment

8шт.

23

9847683

BLADE,Knife CW

CW, 7° Twist

8шт.

23

87029587

BLADE

CW, 14° Twist, Over-serrated

8шт.

23

86532078

KNIFE

V

8шт.

24

87014710

DRUM

1шт.

25

87473045

RING

2шт.

Not Included With Ref. 1 Cutterbar.

1шт.

26

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

4шт.

27

262183

WASHER

4шт.

28

87414

LUBE NIPPLE,1/4" - 28

1шт.

29

86515563

BEARING ASSY,27.03mm Cap Dia, 63.75mm L

2шт.

30

86533474

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 5

16шт.

31

9790143

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

40шт.

32

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

4шт.

33

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

4шт.

34

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

2шт.

35

87499

HEX SOC SCREW,BTN HD, 3/8" - 16 x 7/8"

4шт.

36

86543211

FLANGE BOLT,Self-Locking, G8, 1/2"-13 x 13/16"

16шт.

38

87042223

YOKE

UNIVERSAL JOINT YOKE

1шт.

39

86512328

WASHER,19.46mm ID x 35.05mm OD x 3.43mm Thk

32шт.

40

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

24шт.

41

87042224

YOKE

UNIVERSAL JOINT YOKE

1шт.

42

86521607

FLANGE NUT,Flg, 1/2"-13, G5

4шт.

43

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

44

86518194

NUT,3/4"-10, G8

32шт.

45

87622885

SHOE

High Stub

8шт.

46

84138422

CUTTERBAR

1шт.

47

47754477

KIT

Hi Stub, Includes: (8) Ref. 45 87622885 & Instructions

1шт.

48

86624751

KNIFE SET

Includes (10) 14° CW Blades, Ref 23 & (10) 14° CCW Blades, Ref 19

1шт.

48

86624752

KNIFE SET

Includes (16) 14° CW Blades, Ref 23 & (16) 14° CCW Blades, Ref 19

1шт.

49

86515496

GROOVED PIN,9.53mm OD x 19.05mm L

1шт.
