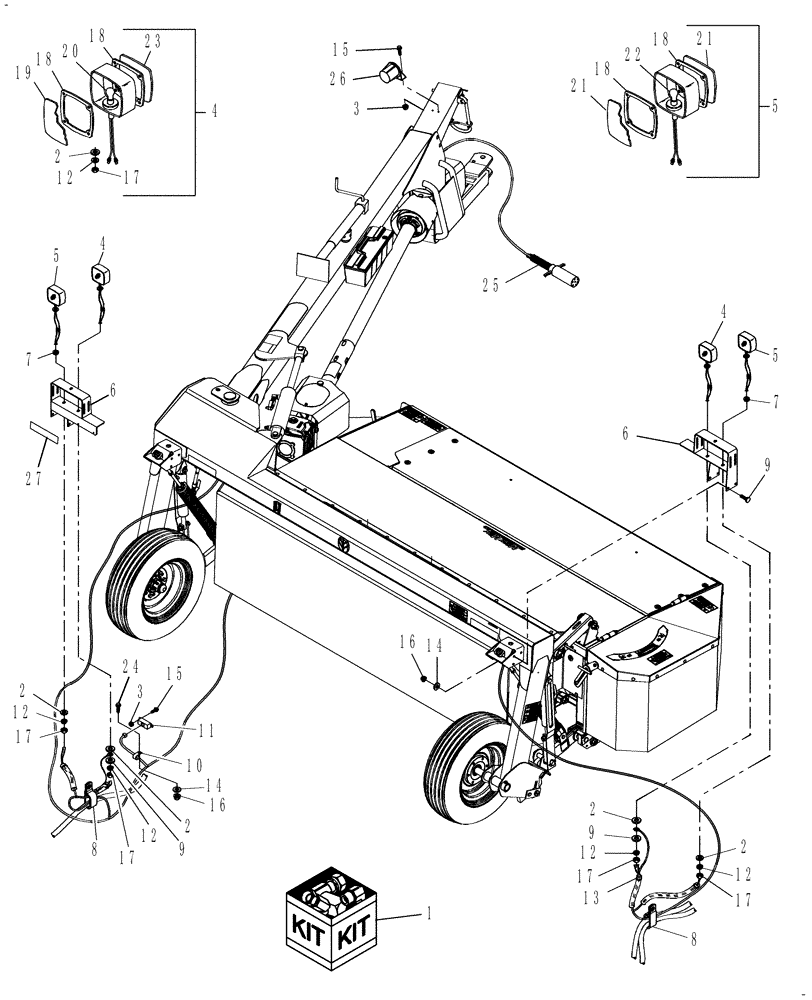

Запчасти Case IH TD102 (06.01) - LIGHT KIT (55) - ELECTRICAL SYSTEMS

1

87666925

LIGHT

Kit; Includes: Ref.s 3(4), 4(2), 5(2), 6(2), 7(2), 9(8), 10(1), 11(1), 12(2), 13(4), 14(9), 15(4), 16(9), 24(1), 25(1), 26(1), & 27(1)

1шт.

2

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

3

9626558

FLANGE NUT,Flg, 1/4"-20

2шт.

4

86514198

TAIL LAMP

2шт.

5

86536572

LAMP

2шт.

6

87701679

BRACKET

2шт.

7

138269

GROMMET

2шт.

8

578070

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

9

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

8шт.

10

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

11

86561136

MODULE

1шт.

12

86515458

WASHER,13mm ID x 22.22mm OD x 1.62mm Thk

4шт.

13

14560287

CABLE TIE,207.00mm L

COLLAR

4шт.

14

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

9шт.

15

86521550

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

16

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

9шт.

17

280963

NUT,Nut, 1/2-20 GR 5 ZND

4шт.

18

853709

GASKET,1.65mm Thk

8шт.

19

853711

LENS

Red; Includes: Ref. 18

2шт.

20

86537133

BULB,C6, #1157, 12.8V

2шт.

21

F0NN15N581BA

LENS

Lens, Amber; Includes: Ref. 18

2шт.

22

529068

BULB,#1156, 12V, 21W

2шт.

23

86537132

KIT

Lens, Black, Includes: Ref. 18

2шт.

24

9628510

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

25

86605903

WIRE HARNESS

Light Kit

1шт.

26

9611467

HOLDER

1шт.

27

86547781

REFLECTOR,RED

Tape, Red Retroreflective

1шт.
