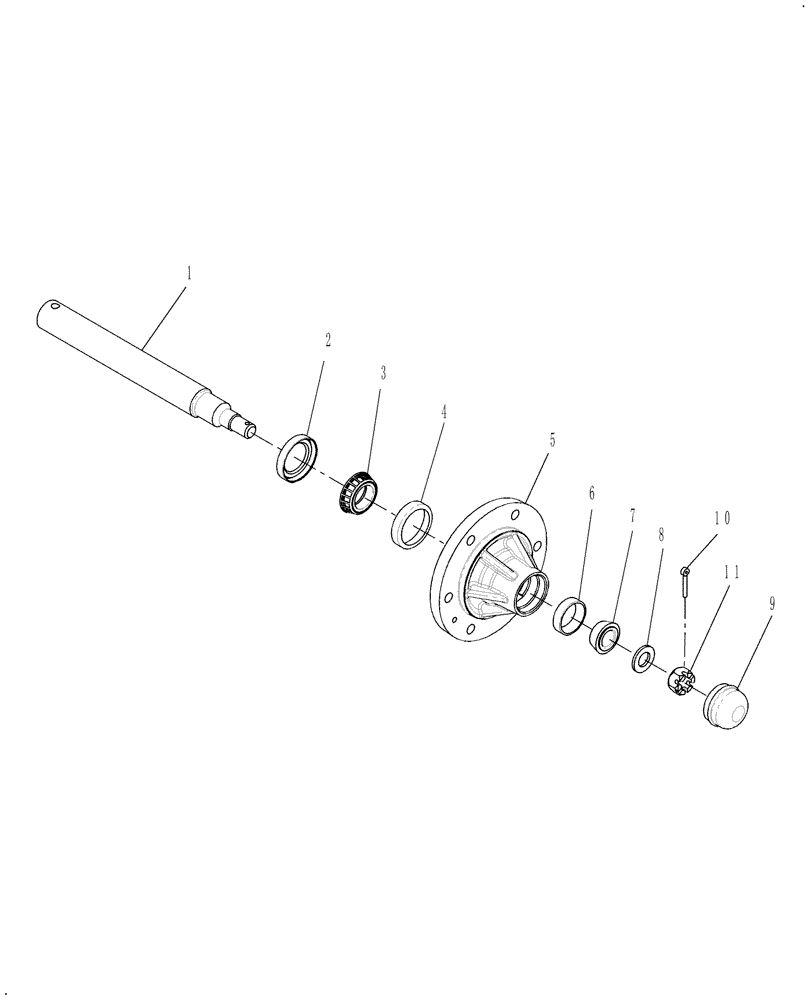

Запчасти Case IH TD102 (11.01) - WHEEL SPINDLE, RH & LH (44) - WHEELS

1

87657168

SPINDLE

2шт.

2

36727

OIL SEAL,38.1mm ID x 59.28mm OD x 13.11mm Thk

2шт.

3

36726

BEARING CONE,31.75mm ID x 16.76mm W

2шт.

4

36723

BEARING CUP,59.16mm OD x 11.81mm W

2шт.

5

86631051

HUB

2шт.

6

574810

BEARING CUP,45.26mm OD x 12.06mm W

2шт.

7

574809

BEARING CONE,21.98mm ID x 16.64mm W

2шт.

8

80011438

WASHER,19.45mm ID x 34.9mm OD x 2.59mm Thk

2шт.

9

26808

CAP

2шт.

10

80738

COTTER PIN,3/16" x 1 1/4"

2шт.

11

88886

SLOTTED NUT,3/4"-16

2шт.

12

87298555

KIT

Includes: 2 - 4 & 6 - 11

2шт.

Wheel Bearing Kit / Ship Direct Option

1шт.
