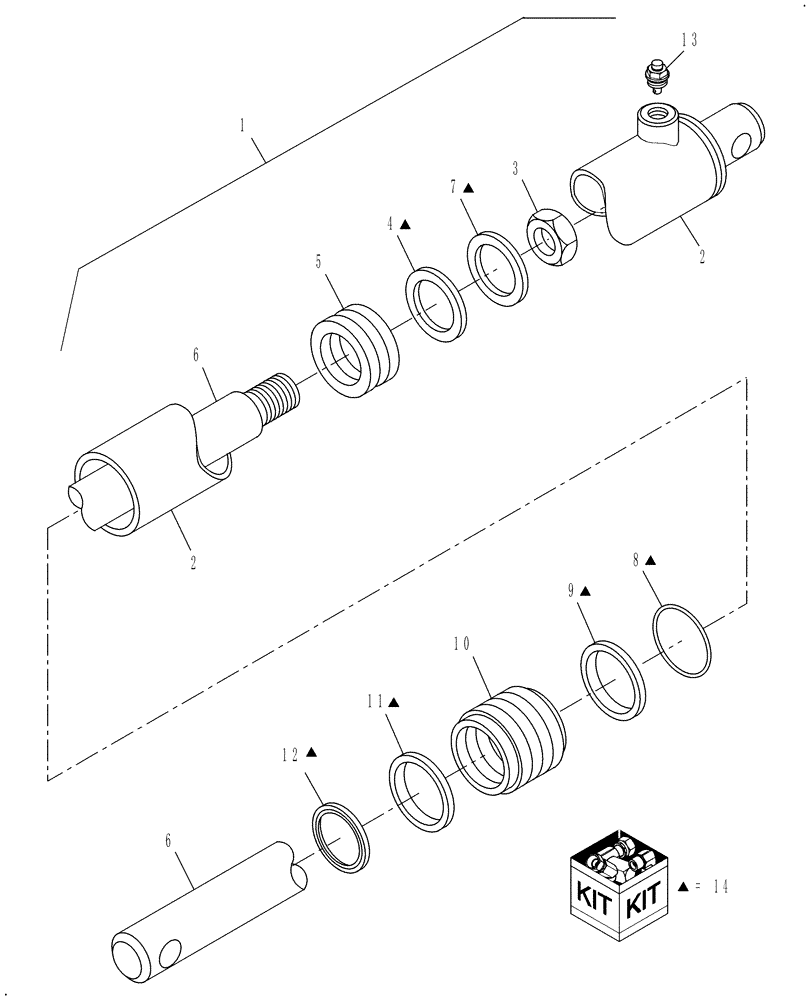

Запчасти Case IH TD102 (07.02) - CYLINDER, HYDRAULIC LIFT (35) - HYDRAULIC SYSTEMS

1

84137831

HYDRAULIC CYLINDER,Double Acting, 25.4mm Rod, 203.2mm Stroke

Lift

1шт.

2

NSS

NOT SOLD SEPARAT

Cylinder Barrel

1шт.

3

280724

LOCK NUT,3/4" - 16

1шт.

4

NSS

NOT SOLD SEPARAT

Piston Seal

1шт.

5

84140091

PISTON

1шт.

6

84140094

PISTON ROD

1шт.

7

NSS

NOT SOLD SEPARAT

Piston Wear Ring

1шт.

8

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

9

NSS

NOT SOLD SEPARAT

Back Up Washer

1шт.

10

84140089

CYLINDER END CAP

1шт.

11

NSS

NOT SOLD SEPARAT

Rod Seal

1шт.

12

NSS

NOT SOLD SEPARAT

Rod Wiper

1шт.

13

87706642

BREATHER

1шт.

14

84140096

SEAL KIT

Includes: Ref.s 4, 7 Thru 9, 11, & 12

1шт.
