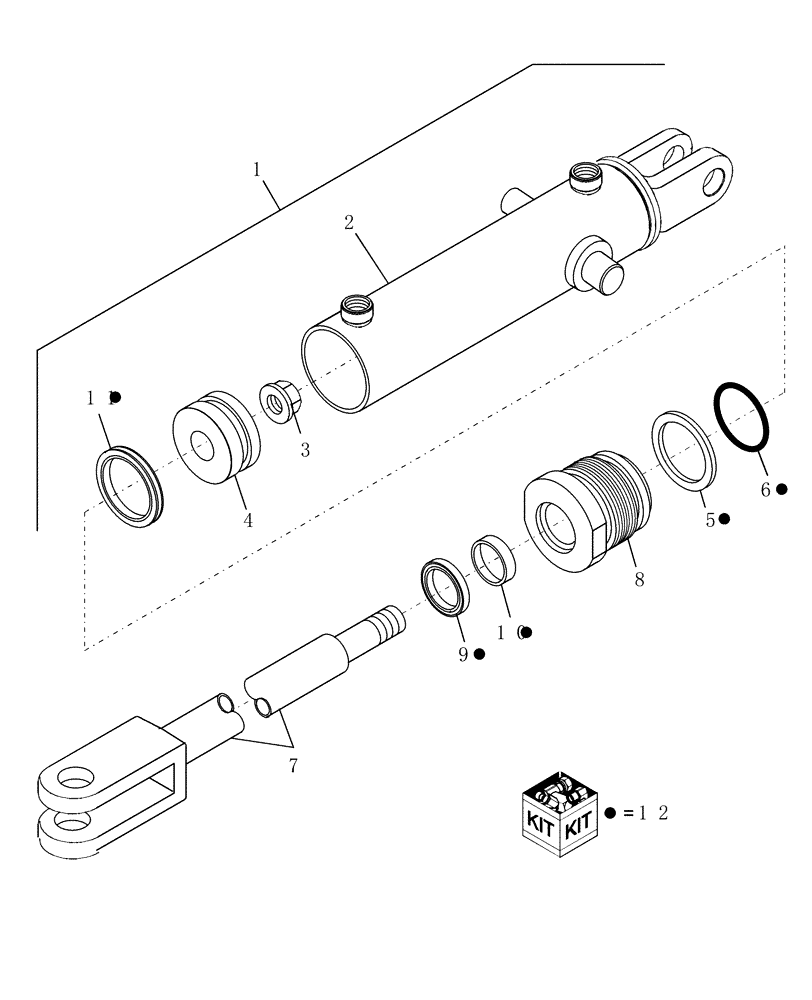

Запчасти Case IH TD102 (07.01) - CYLINDER, HYDRAULIC, TONGUE SWING (35) - HYDRAULIC SYSTEMS

1

87018072

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 292.1mm Stroke

1шт.

2

NSS

NOT SOLD SEPARAT

Barrel

1шт.

3

514101

LOCK NUT,Hex, 1" - 14

1шт.

4

87027944

PISTON

1шт.

5

270114

RUBBER WASHER

Back-up

1шт.

6

9843376

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

1шт.

7

87027948

PISTON ROD

1шт.

8

87027941

CYLINDER END CAP

1шт.

9

592955

FUSE

1шт.

10

511979

SEAL,38.1mm ID x 51mm OD x 6.35mm Thk

1шт.

11

86595542

SEAL

Piston

1шт.

12

87027952

SEAL KIT

Kit, Includes: Ref. 5, 6, 9, 10, & 11

1шт.
