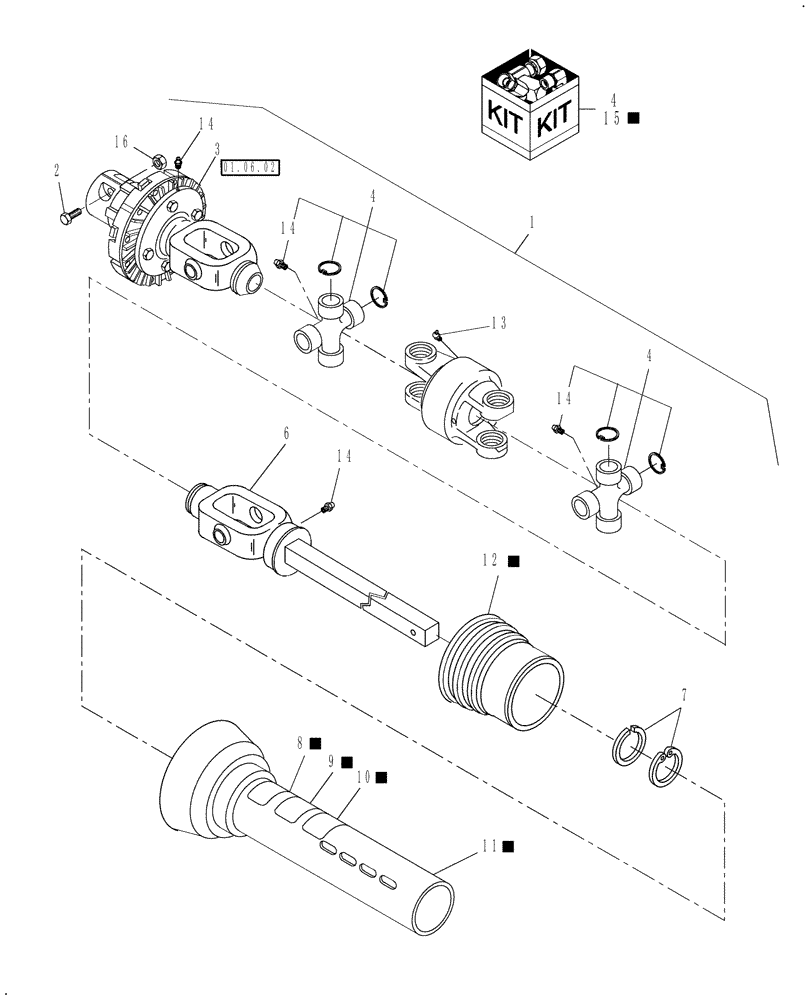

Запчасти Case IH TD102 (01.03[02]) - SECONDARY PTO, CV YOKE REAR HALF (OPTIONAL) (31) - IMPLEMENT POWER TAKE OFF

1

87748399

REAR PTO ASSY

80 CV

1шт.

2

281058

BOLT,Hex, 1/2" - 13 x 2", Gr 8

2шт.

3

84139384

PTO CLUTCH

For Component Breakdown, See Fig. 01.06[02]

1шт.

4

87047945

CROSS

2шт.

5

86526270

HOUSING

CV Yoke

1шт.

6

84139392

PTO SHAFT

1шт.

7

87039056

REPAIR KIT

1шт.

8

87042237

DECAL

540 RPM

1шт.

9

849471

DANGER DECAL

1шт.

10

86520249

DECAL

Lubrication

1шт.

11

NSS

NOT SOLD SEPARAT

Guard, Rear

1шт.

12

NSS

NOT SOLD SEPARAT

Extension, Bell

1шт.

13

80721

LUBE NIPPLE,1/4"-28 x 45 Degree

1шт.

14

88775

LUBE NIPPLE,1/4"-28

4шт.

15

87482820

GUARD

Set

1шт.

16

88871

NUT,1/2"-13, GC

2шт.
