(01.02) - PRIMARY PTO, REAR HALF, 540 RPM

Запчасти Case IH TD102 (01.02) - PRIMARY PTO, REAR HALF, 540 RPM (31) - IMPLEMENT POWER TAKE OFF

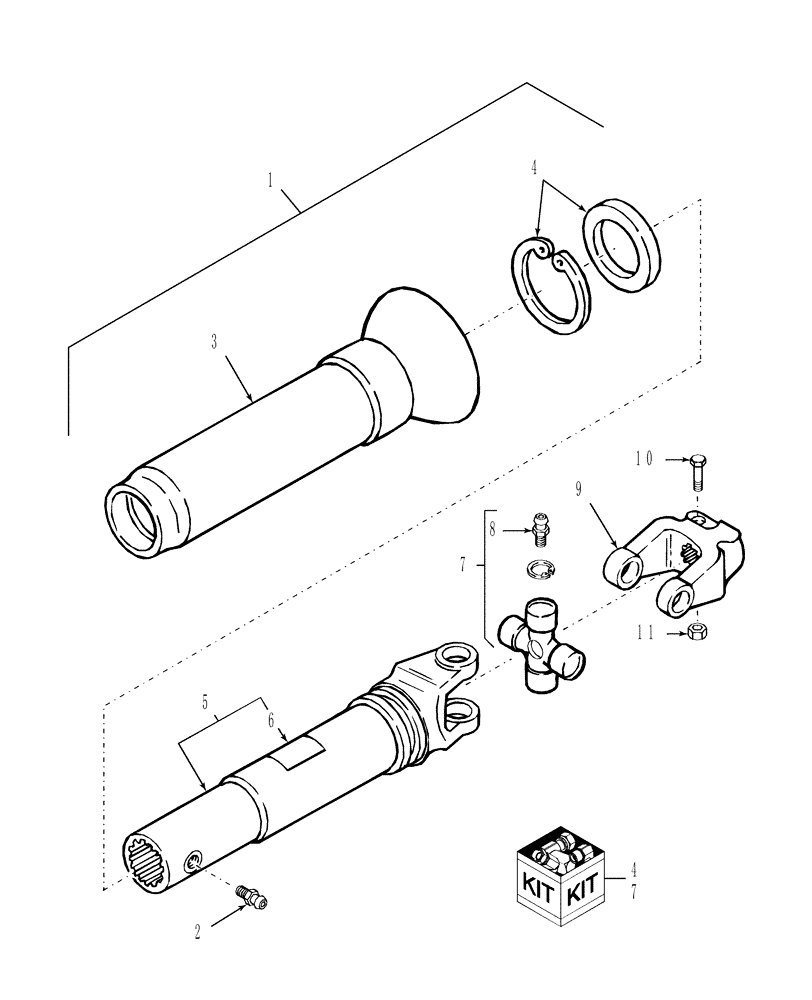

Схема запчастей Case IH TD102 - (01.02) - PRIMARY PTO, REAR HALF, 540 RPM (31) - IMPLEMENT POWER TAKE OFF
6
9
4
4
1
5
11
8
3
2
10
7
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87042258

REAR PTO ASSY

Includes: Ref. 2 - 11

1шт.

2

86542773

LUBE NIPPLE

1шт.

3

87042256

GUARD

Set; Includes: Ref. 4 & Outer Guard Assy On Fig. 01.01

1шт.

4

87039056

REPAIR KIT

1шт.

Includes: (1) Nylon Bearing & (1) Retaining Ring

1шт.

5

87042253

YOKE

& Tube

1шт.

6

849472

DANGER DECAL

Shield Missing, English

1шт.

7

87042232

CROSS

Spider

1шт.

8

88775

LUBE NIPPLE,1/4"-28

Straight

1шт.

9

87042245

YOKE

1шт.

10

84246779

BOLT

1шт.

11

87025806

LOCK NUT

1шт.
