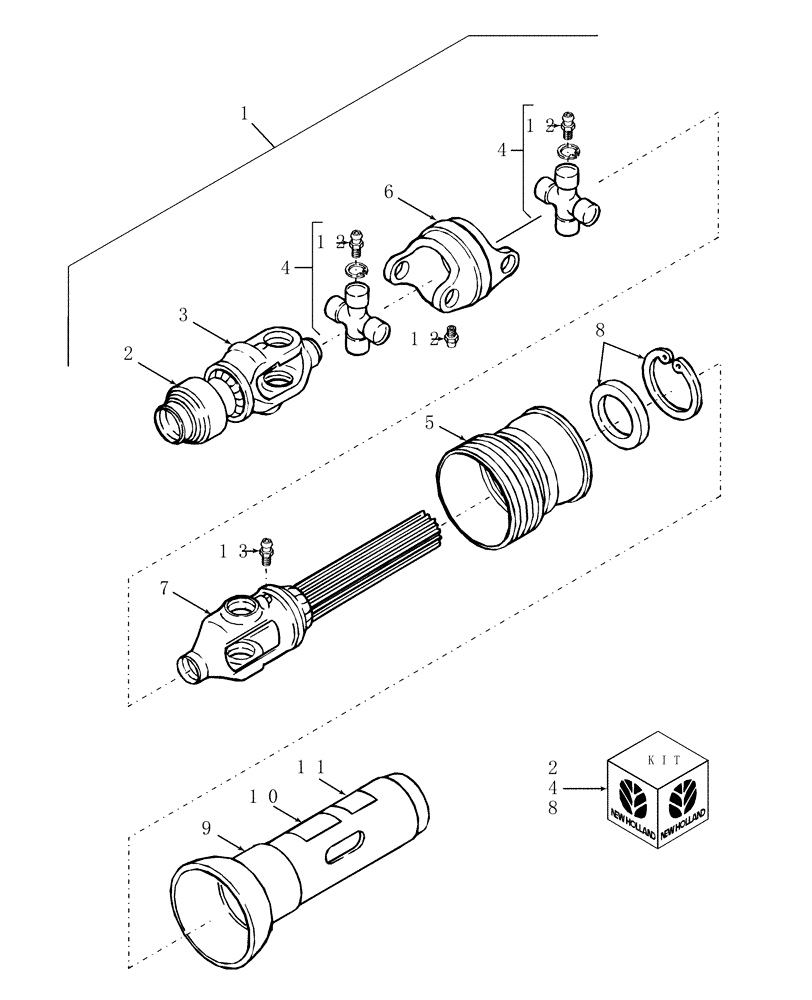

Запчасти Case IH TD102 (01.01) - PRIMARY PTO, FRONT HALF, 540 RPM (31) - IMPLEMENT POWER TAKE OFF

1

87042257

FRONT PTO ASSY

Includes: Ref. 2-13

1шт.

2

86534533

REPAIR KIT

Includes: (1) Coil Spring, (1) Collar (2) Pawl, Old Design, (2) Pawl, New Design (1) Retaining Ring & Instructions

1шт.

3

84524245

YOKE

Auto Lock

1шт.

4

84524262

CROSS

Spider

2шт.

5

NSS

NOT SOLD SEPARAT

Extension, Bell

1шт.

6

84367791

JOINT

CV Center

1шт.

7

84524266

YOKE

& Shaft

1шт.

8

87039056

REPAIR KIT

Includes: (1) Nylon Bearing & (1) Retaining Ring

1шт.

9

87042256

GUARD

Set, Primary; Includes Ref. 5, 8 (2), 10,11, & Inner Guard, Fig. 01.02

1шт.

10

849471

DANGER DECAL

Rotating Driveline

1шт.

11

86520249

DECAL

Lubrication

1шт.

12

88775

LUBE NIPPLE,1/4"-28

Straight

3шт.

13

80721

LUBE NIPPLE,1/4"-28 x 45 Degree

1шт.
