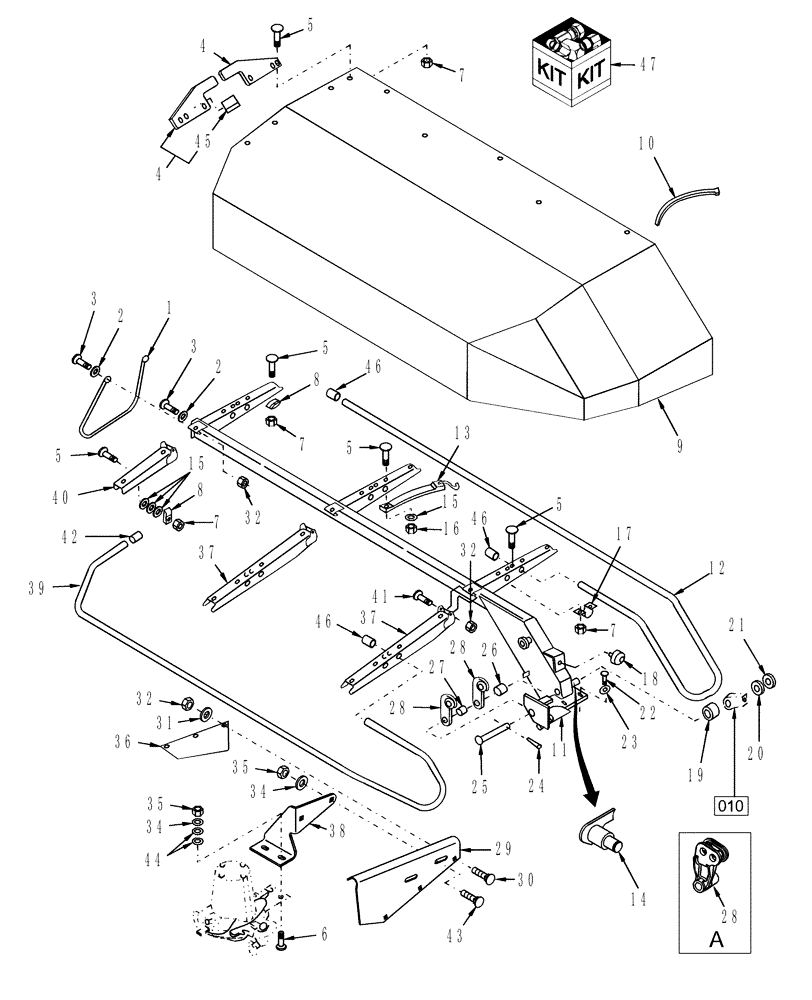

Запчасти Case IH MDX91 (001) - COVERS & SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87014802

SUPPORT

1шт.

2

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

3

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

4

87014622

GUARD

Includes: Decal, Ref 45

2шт.

5

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

9шт.

6

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

2шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

18шт.

8

86510639

CLAMP,27mm ID, 9mm Bolt Hole, J Type

7шт.

9

86622313

CURTAIN

MDX71

1шт.

9

86622314

CURTAIN

MDX81

1шт.

9

86622315

CURTAIN

MDX91

1шт.

10

529070

CABLE TIE,368.3mm L

CABLE STRAP

6шт.

11

87014809

SUPPORT ASSY.

MDX71

1шт.

11

87060334

SUPPORT ASSY.

MDX81

1шт.

11

87060335

SUPPORT ASSY.

MDX91

1шт.

12

87014565

PIPE

Rear, MDX71

1шт.

12

87014706

PIPE

Rear, MDX81

1шт.

12

87014564

PIPE

Rear, MDX91

1шт.

13

86518682

FASTENER

1шт.

14

86543045

PIN

(Weld On)

1шт.

15

495-21038

WASHER,5/16"

7шт.

16

280736

NUT,5/16"-18, GC

1шт.

17

86510640

BRACKET

2шт.

18

9605140

BUMPER

Rubber

1шт.

19

87014841

HUB

1-7/8" Lg

1шт.

20

27373

WASHER,29.37mm ID x 50.8mm OD x 3.17mm Thk

1шт.

21

100-16112

SNAP RING,#112, Ext

1шт.

22

86539437

LOCK BOLT,Hex, 1/2" x 1.25", Gr 8

Cap, HH, Self-Locking, G8, 1/2"-13 x 1-1/4"

6шт.

23

262183

WASHER

6шт.

24

432-1224

COTTER PIN,3/16" x 1-1/2"

1шт.

25

86510463

PIN

1шт.

26

87014794

HUB

1шт.

From PIN HCA0032113 used on MDX71 only

1шт.

27

767466

HUB

1шт.

From PIN HCA0032113 used on MDX71 only

1шт.

28

87014823

LINK

MDX71

2шт.

28

87014827

LINK

MDX81

2шт.

Prior To PIN HCA0033239

1шт.

28

87014825

LINK

MDX91

2шт.

Prior To PIN HCA0034383

1шт.

28

87047824

ARM ASSY.

MDX81 & MDX91

1шт.

From PIN HCA0033239 (MDX81) & HCA0034383 (MDX91)

1шт.

29

87014839

SWATHBOARD

RH, Use W/ Ref. 38 only.

1шт.

RH swathboard optional from TY06 on

1шт.

30

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3шт.

31

495-21044

WASHER,3/8"

3шт.

32

232-4146

NUT,3/8"-16, GC

7шт.

34

80679

LOCK WASHER,1/20.507 CST ZND

5шт.

35

425-108

NUT,1/2" - 13, Gr 5

5шт.

36

86515489

FLAP

1шт.

37

87025758

SUPPORT ASSY.

Front

2шт.

38

87014835

SUPPORT

RH, Use With Ref. 29 Only.

1шт.

39

87014811

PIPE

Front, MDX71

1шт.

39

87014562

PIPE

Front, MDX81

1шт.

39

87014816

PIPE

Front, MDX91

1шт.

40

87014563

SUPPORT

1шт.

41

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

3шт.

42

180418

PLUG

1шт.

43

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1шт.

44

495-21056

WASHER,1/2"

2шт.

45

86628571

WARNING DECAL

English

1шт.

45

86629518

WARNING DECAL

WARNING, French

1шт.

45

86629519

WARNING DECAL

WARNING, Spanish

1шт.

46

86528337

CAP

3шт.

47

717355006

DIA KIT, ADD PROD

RH Swathboard; Includes: Ref.s 6, 29 Thru 32, 34 Thru 36, 38, 43, & 44

1шт.

RH swathboard optional from TY06 (HCA0032113 (MDX71), HCA0033239 (MDX81), or HCA0034383 (MDX91) on

1шт.
