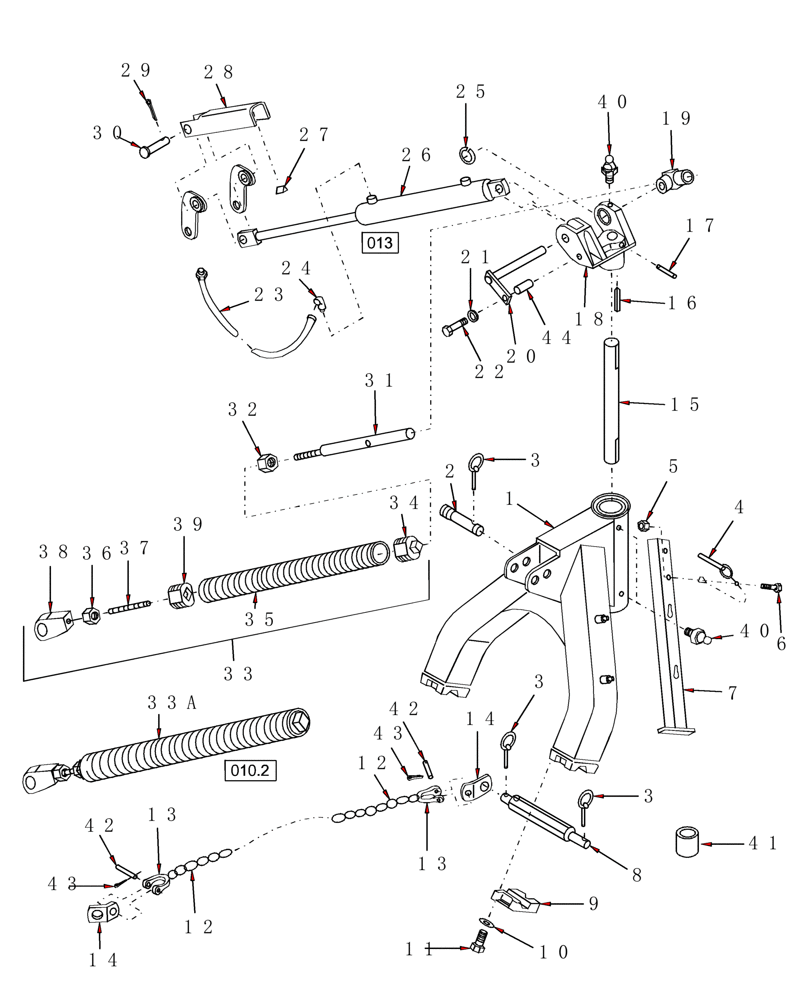

Запчасти Case IH MDX81 (010) - FRAME, MAIN, MDX81 & MDX91 (58) - ATTACHMENTS/HEADERS

1

87014566

FRAME

Main

1шт.

86517392

BUSHING,76.43mm ID x 89.23mm OD x 63.5mm L

Bushing; 3" ID x 3.5" OD x 2.5" L

2шт.

2

86523079

PIN

Cat. II

2шт.

3

132757

LINCH PIN,11.11mm OD x 44.45mm L

6шт.

4

86510262

PIN,15.88mm OD

1шт.

5

280129

NUT,1/4"-20

1шт.

6

413-456

BOLT,Hex, 1/4" - 20 x 3-1/2", Gr 5

1шт.

7

87014833

STAND

1шт.

8

86592586

PIN,28.57mm OD x 377mm L

Hitch, Cat. II

2шт.

9

86515228

SPECIAL CLAMP

2шт.

10

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

8шт.

11

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

8шт.

12

9826529

CHAIN,799mm L

2шт.

13

573120

SHACKLE

Chain Shackle, Includes Ref 42 & 43

4шт.

14

86573217

CONNECTING LINK

4шт.

15

86506573

PIN,44.45mm OD x 455mm L

1шт.

16

87496

KEY

Square, 3/8" x 2-1/2"

3шт.

17

280578

PIN,9.53mm OD x 69.85mm L

2шт.

18

86506848

PIVOT ASSY.

Top

1шт.

19

86515075

PIVOT ASSY.

Pivot

1шт.

20

87014810

PIN,25.4mm OD x 219mm L

1шт.

21

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

22

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

23

86513851

HOSE,9.53mm ID x 1828.8mm L, SAE 100R17

1шт.

24

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

1шт.

25

37185

SNAP RING

Ext, M50

1шт.

26

87018062

LIFT CYLINDER

1шт.

87515541R

REMAN-HYD CYLINDER

MDX81 (5/02-7/08), MDX91 (5/02-7/08), Reman For New P/N: 87018062

1шт.

87515541C

CORE-HYD CYLINDER

Return Number

1шт.

Refer To Component Breakdown

1шт.

26

87515541R

REMAN-HYD CYLINDER

MDX81, MDX91, Both (5/02 - 7/08), Reman For New P/N's 87018062 & 87515541

1шт.

87515541C

CORE-HYD CYLINDER

Return Number

1шт.

27

216328

BUMPER

1шт.

28

87014687

CHANNEL

1шт.

29

432-1224

COTTER PIN,3/16" x 1-1/2"

1шт.

30

514864

PIN

1" x 3-1/8"

1шт.

31

86515706

ROD

1шт.

MDX81 ONLY

1шт.

31

86540433

ROD

1шт.

MDX91 ONLY

1шт.

32

87919

JAM NUT,Jam, 1"-8, G2

1шт.

33

86515701

SPRING

1шт.

MDX81 ONLY

1шт.

33a

86543312

SPRING

For Component Breakdown, See Fig. 010[2]

1шт.

MDX91 ONLY

1шт.

34

86515704

SPRING NUT

Spring

1шт.

35

NSS

NOT SOLD SEPARAT

Spring, Extension

1шт.

36

425-1010

NUT,5/8"-11, G5

1шт.

37

86519106

ROD

180mm Lg

1шт.

38

86519104

EAR

Ear

1шт.

39

86515702

SPRING NUT

Spring

1шт.

40

219-87

LUBE NIPPLE,1/4" - 28 NPTF

3шт.

41

87014718

SPACER

Optional, for use W/Cat. III Tractors

2шт.

42

64162

CLEVIS PIN,12.6mm OD x 54.76mm L

1/2" x 2"

1шт.

43

432-816

COTTER PIN,1/8" x 1"

1шт.

44

87655399

SPACER

1шт.
