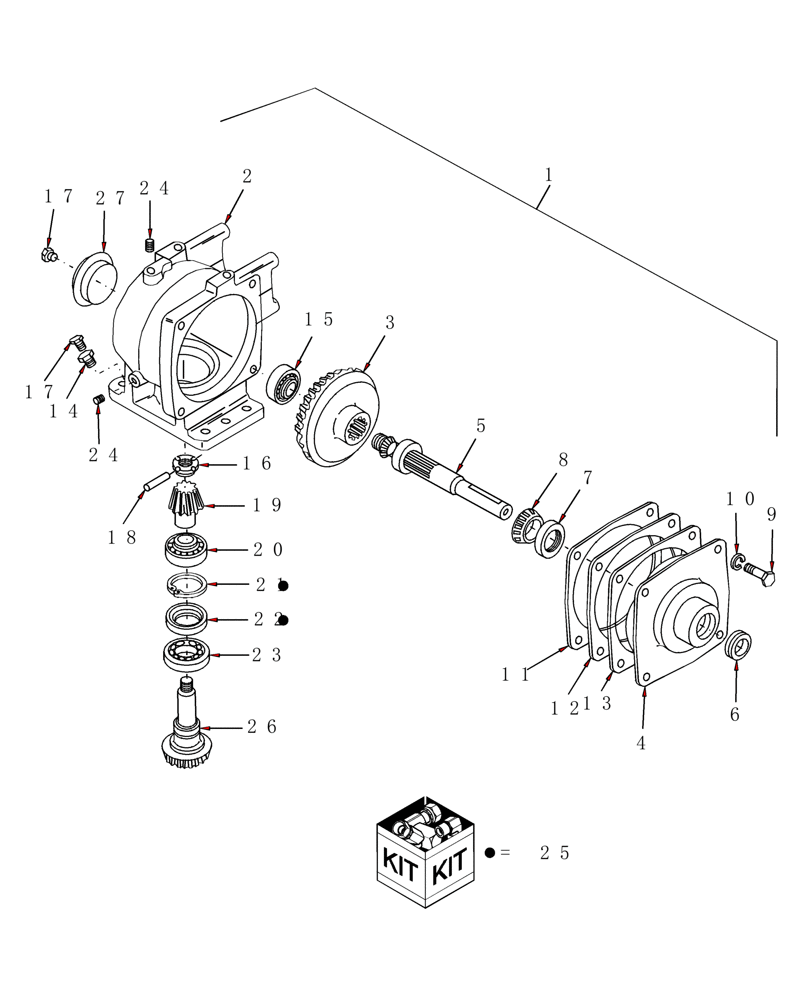

Запчасти Case IH MDX81 (007) - GEARBOX BSN YFN146307 (58) - ATTACHMENTS/HEADERS

1

87014685

GEARBOX

1шт.

87039881R

REMAN-GEARBOX

MDX71, MDX81, MDX91 All (5/02-7/08), Reman For New P/N 87014685

1шт.

87039881C

CORE-GEARBOX

Return Number

1шт.

2

86535574

HOUSING

1шт.

3

86522627

BEVEL GEAR

54T

1шт.

4

86525654

CAP

1шт.

5

86522616

SHAFT

W/ Collar

1шт.

6

66807

SEAL,38.1mm ID x 57.26mm OD x 7.92mm Thk

1шт.

7

17498D

TAPERED BEARING," ID x 76.2125 mm OD x 23.9135 mm

Tapered Roller

1шт.

8

41480

BEARING CONE,38.11mm ID x 25.65mm W

1шт.

9

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

10

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

4шт.

11

86511689

SHIM

.002" Thk

4шт.

12

86511690

SHIM

.003" Thk

4шт.

13

86511691

SHIM

.010" Thk

2шт.

14

221-85

REDUCER,Hex, 3/8" x 1/8" NPT

1шт.

15

530740R91

BEARING ASSY,1.18775" ID x 2.5317" OD x 0.8478"

1шт.

16

86527529

SPECIAL NUT

Slotted, Special

1шт.

17

572820

BREATHER

1шт.

18

856800

GROOVED PIN,4.76mm OD x 38.1mm L

1шт.

19

86527125

DRIVE PINION

18T

1шт.

20

G15215

ROLLER BEARING

1шт.

21

196287

SNAP RING

Int, 3.062"

1шт.

22

86512489

SEAL

1шт.

23

86512026

TAPERED BEARING,50.8mm ID x 82.55mm OD x 23.62mm W

1шт.

24

217-511

PLUG,Sq Hd, 3/8"-18

2шт.

25

86560104

SEAL KIT

Seal & Ret, Ring

1шт.

26

86527124

SHAFT

25T

1шт.

27

86608136

CAP COVER

1шт.
