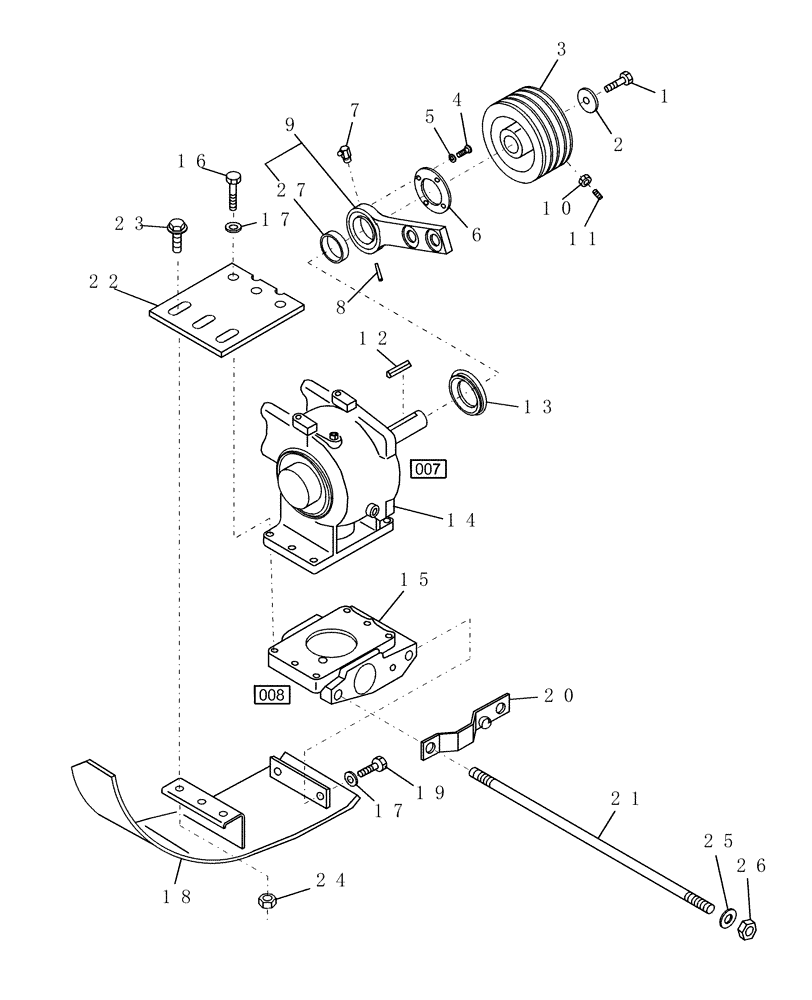

Запчасти Case IH MDX81 (006) - SKID SHOE, MODULE & GEARBOX MOUNT (58) - ATTACHMENTS/HEADERS

1

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

2

623303

WASHER,10.32mm ID x 47.63mm OD x 4.76mm Thk

1шт.

3

86518807

PULLEY

1шт.

4

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

5

492-11038

LOCK WASHER,3/8"

4шт.

6

86515629

SHIELD

1шт.

7

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1шт.

8

80713

LUBE NIPPLE

1/4"-28 x 1-1/8"

1шт.

9

87014711

ARM

1шт.

10

86509499

JAM NUT,3/8"-16, G2

2шт.

11

86539413

SET SCREW,3/8" - 16 x 1-1/4"

2шт.

12

224132

KEY

5/16" Sq x 2"

1шт.

13

86510943

THRUST WASHER,89.5mm ID x 142mm OD x 15mm Thk

1шт.

14

87014685

GEARBOX

Refer to Component Breakdown, Fig. 007

1шт.

87039881R

REMAN-GEARBOX

MDX71, MDX81, MDX91 All (5/02 - 7/08), Reman For New P/N 87014685

1шт.

87039881C

CORE-GEARBOX

Return Number

1шт.

15

87037885

MODULE

Refer to Component Breakdown, Fig. 008

1шт.

16

86539438

LOCK BOLT,Hex, 1/2" x 2", Gr 8

Cap, HH, Self-Locking, G8, 1/2"-13 x 2"

6шт.

17

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

8шт.

18

87014843

SKID/SHOE

1шт.

18

87014821

SKID/SHOE

(MDX71 Only)

1шт.

19

86533474

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

20

87014715

GUARD

1шт.

21

86504407

BOLT

Tie

2шт.

22

87014842

PLATE

1шт.

23

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

3шт.

24

425-288

FLANGE NUT,Flg, 1/2"-13, G5

3шт.

25

86512328

WASHER,19.46mm ID x 35.05mm OD x 3.43mm Thk

1шт.

26

429-1012

NUT,3/4"-10, G8

1шт.

27

86512604

DRIVE BUSHING,88.9mm ID x 93.66mm OD x 25.65mm L

2шт.
