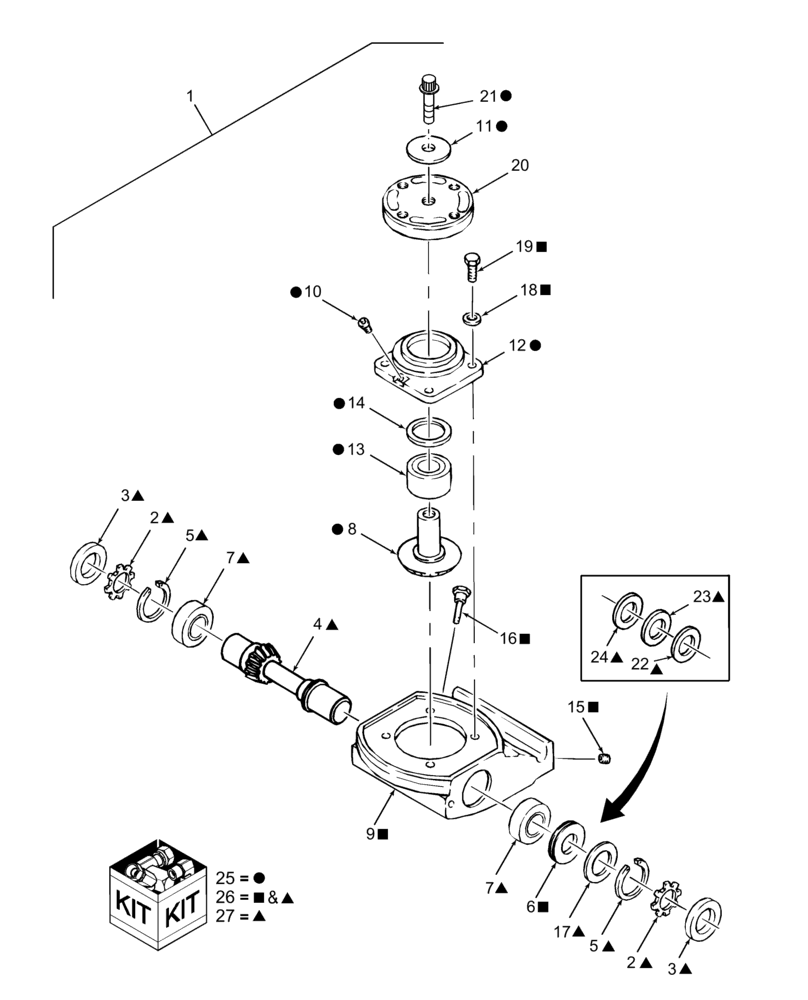

Запчасти Case IH MDX81 (005) - CW MODULE (58) - ATTACHMENTS/HEADERS

1

0C

ORDER COMPONENTS

Module Assy., CW, Complete

1шт.

2

86515894

SLINGER

2шт.

3

86511201

SEAL

2шт.

4

NSS

NOT SOLD SEPARAT

Pinion, 14T

1шт.

5

86508784

SNAP RING

Int, 2.312"

2шт.

6

NSS

NOT SOLD SEPARAT

Use Ref's 22, 23, 24

1шт.

7

86512017

BEARING ASSY

2шт.

8

NSS

NOT SOLD SEPARAT

Gear, 25T

1шт.

9

87044115

HOUSING

1шт.

10

572820

BREATHER

1шт.

11

574245

WASHER,16.76mm ID x 50.8mm OD x 6.35mm Thk

1шт.

12

NSS

NOT SOLD SEPARAT

1шт.

13

NSS

NOT SOLD SEPARAT

Bearing

1шт.

14

9849587

OIL SEAL,50.72mm ID x 63.73mm OD x 6.73mm Thk

1шт.

15

86568834

PLUG,1/4" - 18 NPT

1шт.

16

86506262

DIPSTICK

1шт.

17

86524423

WASHER

1шт.

18

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

4шт.

19

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

20

86629692

HUB

1шт.

21

86600611

PREV TORQUE BOLT,12 Pt Flg, 5/8" - 11 x 1.50"

1шт.

22

122271

SHIM,.003" Thk

2шт.

23

122272

SHIM,.005" Thk

2шт.

24

122273

SHIM,.007" Thk

1шт.

25

86633623

CAP

Top

1шт.

26

86525821

GEARBOX

CW

1шт.

26

84220789R

REMAN-GEARBOX

MDX71, MDX81, MDX91, Reman For New P/N's 86525851 & 84220789

1шт.

26

84220789C

CORE-GEARBOX

Return Number

1шт.

27

86633622

KIT

Pinion

1шт.
