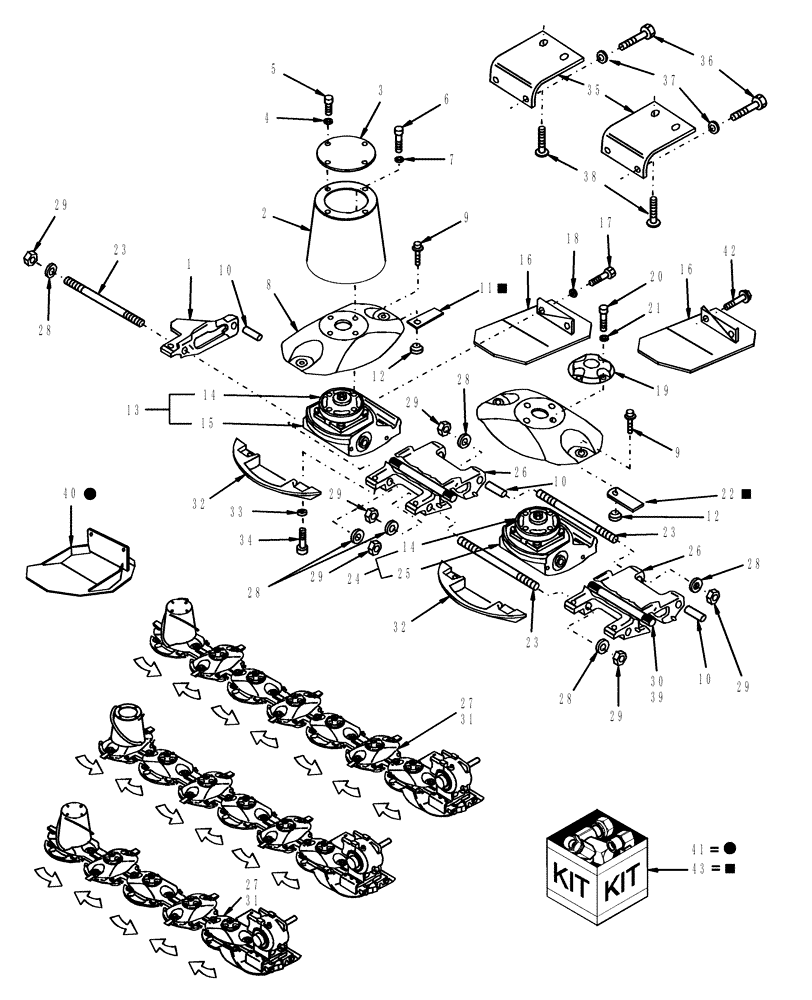

Запчасти Case IH MDX81 (003) - CUTTERBAR (58) - ATTACHMENTS/HEADERS

1

86517530

ARM

RH

1шт.

2

87014710

DRUM

1шт.

2

86538531

AUGER

Drum, Optional, Service Part Only. Has Flighting to Prevent Crop Wrappage In Some Conditions

1шт.

3

87014708

COVER

Top

1шт.

4

492-11038

LOCK WASHER,3/8"

4шт.

5

87499

HEX SOC SCREW,BTN HD, 3/8" - 16 x 7/8"

4шт.

6

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

7

262183

WASHER

4шт.

8

86620468

DISC

1шт.

MDX71(5), MDX81(6), MDZ91(7)

1шт.

9

86543211

FLANGE BOLT,Self-Locking, G8, 1/2"-13 x 13/16"

Binding Hd, Self-Locking, G8, 1/2"-13 x 13/16", (Requires 1/2" Drive Ratchet)

1шт.

MDX71(10), MDX81 (12), MDX91 (14)

1шт.

10

86515496

GROOVED PIN,9.53mm OD x 19.05mm L

.38 x .75 HT

4шт.

11

9847684

BLADE,Knife CCW

CCW, 7° Twist

1шт.

MDX71(4), MDX81(6), MDX91(6)

1шт.

11

86621873

BLADE

CCW, 14° Twist

1шт.

MDX71(4), MDX81(6), MDX91(6)

1шт.

11

87029588

BLADE

CCW, 14° Twist, Over-serrated

1шт.

MDX71(4), MDX81(6), MDX91(6)

1шт.

11

86532078

KNIFE

"V"

1шт.

MDX71(4), MDX81(6), MDX91(6)

1шт.

12

87725066

NUT

1шт.

MDX71(10), MDX81 (12), MDX91 (14)

1шт.

13

0C

ORDER COMPONENTS

Module, CCW

1шт.

14

86633623

CAP

1шт.

15

86525822

GEARBOX

CCW

1шт.

15

84220790R

REMAN-GEARBOX

MDX71, MDX81, MDX91, Reman For New P/N's 86525822 & 84220790

1шт.

15

84220790C

CORE-GEARBOX

Return Number

1шт.

16

86572263

SKID/SHOE

[Welded Shoe], See Figure Note

1шт.

MDX71(6), MDX81(6), MDX91(8)

1шт.

Prior To MY 2006

1шт.

16

87047426

SKID/SHOE

[Formed Shoe], See Figure Note

1шт.

MDX71(6), MDX81(6), MDX91(8)

1шт.

From MY 2006

1шт.

17

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1шт.

MDX71(10), MDX81 (12), MDX91 (14)

1шт.

18

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

1шт.

MDX71(10), MDX81 (12), MDX91 (14)

1шт.

19

87014784

CAP

1шт.

20

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

MDX71(16), MDX81(20), MDX91(24)

1шт.

21

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

1шт.

MDX71(16), MDX81(20), MDX91(24)

1шт.

22

9847683

BLADE,Knife CW

CW, 7° Twist

1шт.

22

86621872

BLADE

CW, 14° Twist

1шт.

MDX71(6), MDX81(6), MDX91(8)

1шт.

22

87029587

BLADE

CW, 14° Twist, Over-serrated

1шт.

MDX71(6), MDX81(6), MDX91(8)

1шт.

22

86532078

KNIFE

"V", CW

1шт.

MDX71(6), MDX81(6), MDX91(8)

1шт.

23

86501934

THREADED ROD

3/4" x 12-13/64"; Services Both Partially and Fully-Threaded Rods

1шт.

24

0C

ORDER COMPONENTS

Module, CW

3шт.

25

86525821

GEARBOX

CW

1шт.

25

84220789R

REMAN-GEARBOX

MDX71, MDX81, MDX91, Reman For New P/N's 86525851 & 84220789

1шт.

25

84220789C

CORE-GEARBOX

Return Number

1шт.

26

86506032

SPACER

Short, 7-7/8"

1шт.

MDX71(4), MDX81(6), MDX91(6)

1шт.

27

86506070

SPACER

Long, 8-11/16", Used on 5 & 7 Disc Cutter Bars, Between Modules 1 & 2; Includes: Ref. 10

1шт.

28

86512328

WASHER,19.46mm ID x 35.05mm OD x 3.43mm Thk

1шт.

MDX71(20), MDX81(24), MDX91(28)

1шт.

29

429-1012

NUT,3/4"-10, G8

1шт.

MDX71(20), MDX81(24), MDX91(28)

1шт.

30

86519042

SHAFT

Short, 248mm

1шт.

MDX71(4), MDX81(6), MDX91(6)

1шт.

31

86519039

SHAFT

Long, 268mm, Used on 5 &7 Disc Cutter Bars Between Modules 1 & 2

1шт.

32

86565383

GUARD

Rock, See Figure Note

1шт.

MDX71(5), MDX81(6), MDZ91(7)

1шт.

Prior To MY 2006

1шт.

32

87047845

STONEGUARD

See Figure Note

1шт.

MDX71(5), MDX81(6), MDZ91(7)

1шт.

From MY 2006

1шт.

33

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

1шт.

MDX71(10), MDX81 (12), MDX91 (14)

1шт.

34

86515925

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8

1шт.

MDX71(10), MDX81 (12), MDX91 (14)

1шт.

35

87014688

SUPPORT

2шт.

36

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

4шт.

37

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

4шт.

38

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

2шт.

39

132096A1

GREASE

14 oz. Cartridge

1шт.

For Use W/Shaft, Ref. 30

1шт.

40

86630488

SHOE

Skid, High

8шт.

41

47754477

KIT

Hi Stubble Skid

1шт.

42

86533474

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

MDX71(6), MDX81(8), MDX91(10)

1шт.

43

86624751

KNIFE SET

Includes (10) 14° CW Blades, Ref 22 & (10) 14° CCW Blades, Ref 11

1шт.

43

86624752

KNIFE SET

Includes (16) 14° CW Blades, Ref 22 & (16) 14° CCW Blades, Ref 11

1шт.
