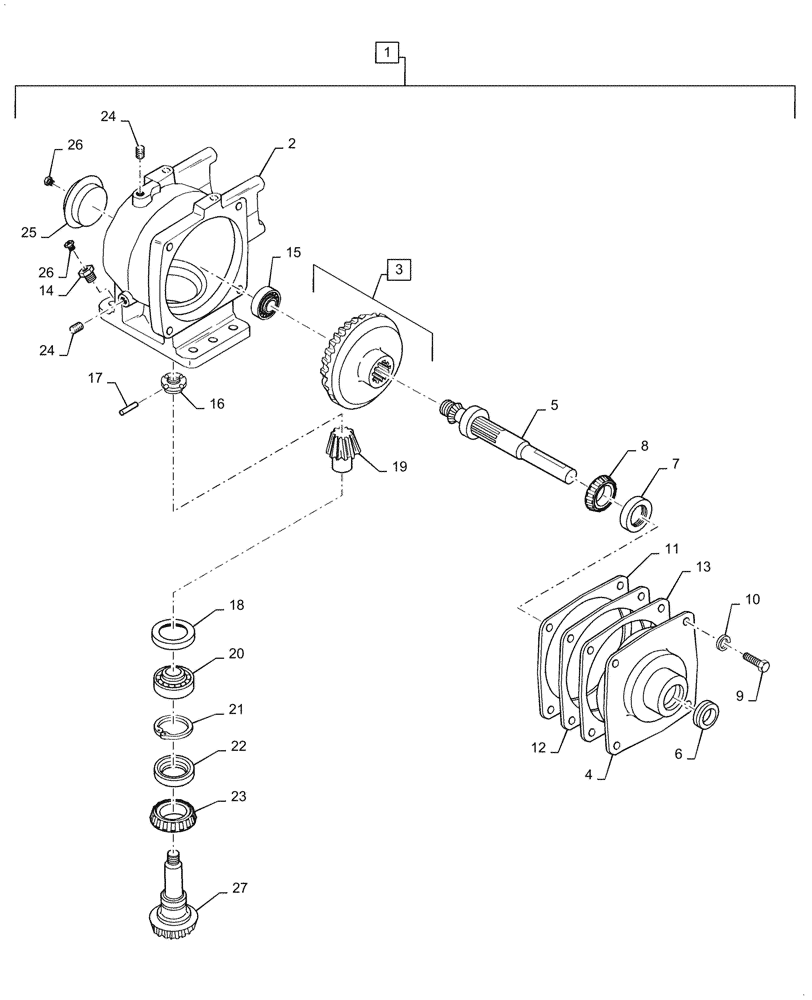

Запчасти Case IH MDX71 (007[01]) - GEARBOX ASN YFN146308 (58) - ATTACHMENTS/HEADERS

1

47952143

GEARBOX

Assy, Incl 2 - 27

1шт.

1

47952143R

REMAN-GEARBOX

Reman Gear Box Assy, Incl 2 - 27

1шт.

1

47952143C

CORE-GEARBOX

Return Number

1шт.

2

47768943

GEARBOX

Divers Mask

1шт.

3

87054844

GEAR SET

Bevel Gear 54T, Incl Ref 19

1шт.

4

86525654

CAP

1шт.

5

86522616

SHAFT

1шт.

6

66807

SEAL,38.1mm ID x 57.26mm OD x 7.92mm Thk

1шт.

7

86977427

BEARING CUP,76.22mm OD x 19.05mm W

1шт.

8

41480

BEARING CONE,38.11mm ID x 25.65mm W

1шт.

9

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

10

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

1/2

4шт.

11

86511689

SHIM

.002

4шт.

12

86511690

SHIM

.003

4шт.

13

86511691

SHIM

.010

2шт.

14

87530208

REDUCER FITTING

Hex, 3/8 x 1/8

1шт.

15

86512014

SPH ROLLER BEARING,30.16mm ID x 64.29mm OD x 21.51mm W

1шт.

16

86527529

SPECIAL NUT

1шт.

17

856800

GROOVED PIN,4.76mm OD x 38.1mm L

1шт.

18

67526

BEARING CUP,77.7mm OD x 15.08mm Thk

1шт.

19

47927210

GEAR

Pinion 18T

1шт.

20

67527

ROLLER BEARING,45.26mm ID x 19.84mm W

1шт.

21

196287

SNAP RING

1шт.

22

86512489

SEAL

1шт.

23

86512026

TAPERED BEARING,50.8mm ID x 82.55mm OD x 23.62mm W

1шт.

24

80781

PLUG,3/8" - 18 NPT

2шт.

25

86608136

CAP COVER

Hub

1шт.

26

572820

BREATHER

2шт.

27

47927207

GEAR

Shaft 25T

1шт.
