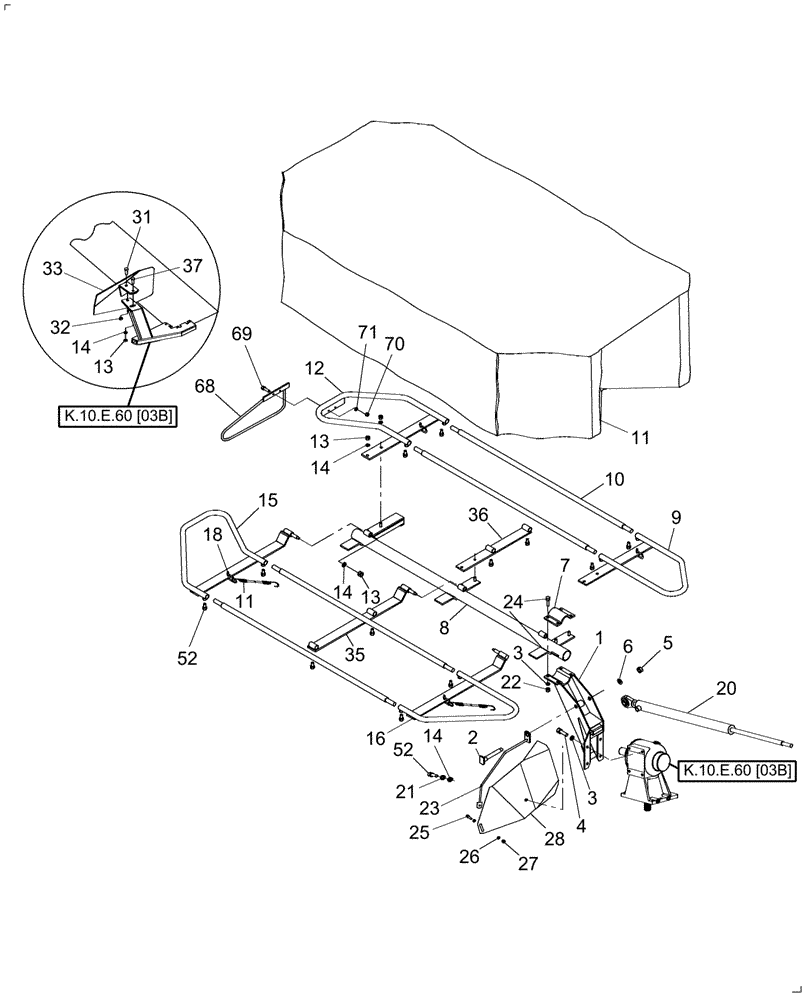

Запчасти Case IH MDX41 (F.20.C[3A]) - SUPPORT 6 DISC, FROM PIN Y9ZSF0016 K - Crop Processing

1

87349000

SUPPORT

1шт.

2

87348083

PIN,25mm OD x 169mm L

1шт.

3

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

8шт.

4

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

4шт.

5

86000441

NUT,M16 x 2.0, Cl 8

1шт.

6

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

1шт.

7

87348315

SUPPORT

1шт.

8

87349779

SUPPORT TUBE

1шт.

9

87348317

FRAME

1шт.

10

87348076

TUBE,27 mm OD x 1760 mm L

4шт.

11

87348077

CANVAS

1шт.

12

84307430

FRAME

1шт.

13

100037

LOCK NUT,M10 x 1.5, Cl 8

12шт.

14

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

13шт.

15

87348318

FRAME

1шт.

16

87348319

FRAME

1шт.

17

87374364

STRAP

2шт.

18

87374363

LINKAGE YOKE

4шт.

20

87348920

HYDRAULIC CYLINDER,25mm Rod, 647mm Stroke

Refer To Component Breakdown, Fig. G.10.A.26[2]

1шт.

21

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

3шт.

22

100038

NUT,M12 x 1.75, Cl 8

4шт.

23

87348088

ARM

1шт.

24

440584

BOLT,Hex, M12 x 1.75 x 55mm, Cl 8.8, Full Thd

4шт.

25

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

26

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

27

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

28

87348846

DEFLECTOR

1шт.

31

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

1шт.

32

100038

NUT,M12 x 1.75, Cl 8

1шт.

33

84307423

BOARD

1шт.

Component of Swathboard and Spring Kit, pn 84308831, See Fig. K.20 (03) for full listing

1шт.

35

87399683

SUPPORT

1шт.

36

87399684

SUPPORT

1шт.

37

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

52

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

13шт.

68

84307429

REINFORCEMENT

1шт.

69

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

70

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

71

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.
