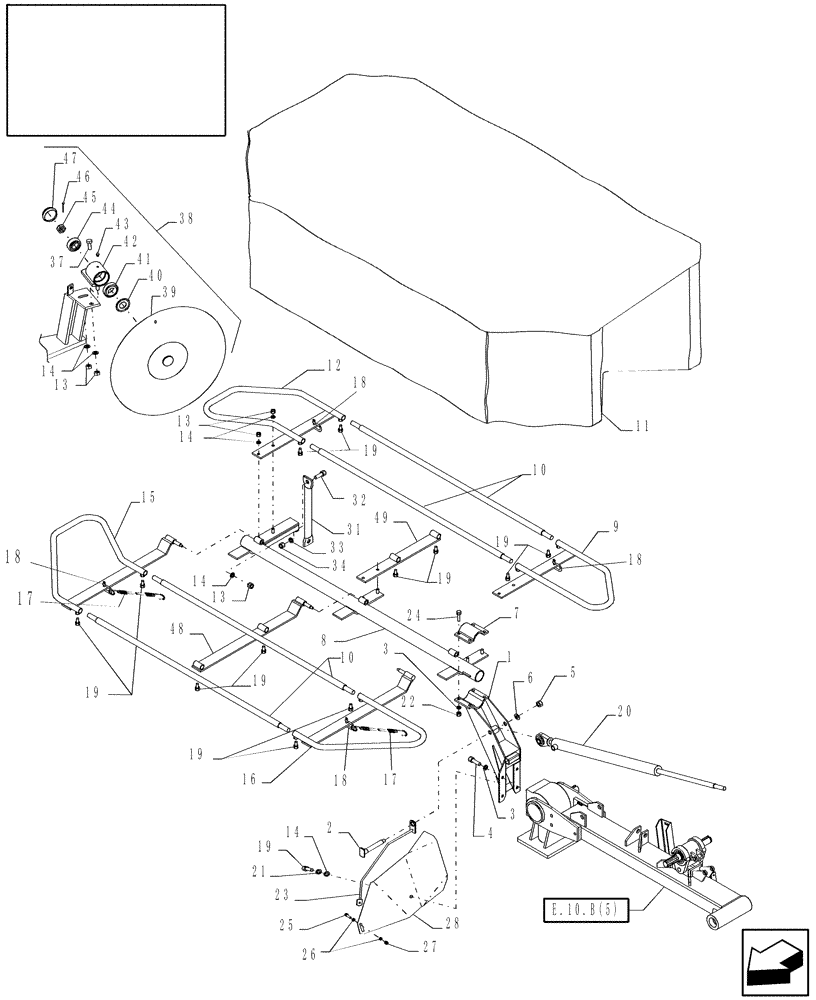

Запчасти Case IH MDX41 (F.20.C[3]) - SUPPORT 6 DISC F - Frame Positioning

1

87349000

SUPPORT

1шт.

2

87348083

PIN,25mm OD x 169mm L

1шт.

3

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

8шт.

4

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

4шт.

5

86000441

NUT,M16 x 2.0, Cl 8

1шт.

6

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

1шт.

7

87348315

SUPPORT

1шт.

8

87349779

SUPPORT TUBE

1шт.

9

87348317

FRAME

1шт.

10

87348076

TUBE,27 mm OD x 1760 mm L

4шт.

11

87348077

CANVAS

Includes decal which is nss

1шт.

12

87348316

FRAME

1шт.

13

100037

LOCK NUT,M10 x 1.5, Cl 8

12шт.

14

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

13шт.

15

87348318

FRAME

1шт.

16

87348319

FRAME

1шт.

17

87374364

STRAP

2шт.

18

87374363

LINKAGE YOKE

4шт.

19

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

13шт.

20

87348920

HYDRAULIC CYLINDER,25mm Rod, 647mm Stroke

Refer To Component Breakdown, Fig. G.10.A.26[2]

1шт.

21

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

3шт.

22

100038

NUT,M12 x 1.75, Cl 8

4шт.

23

87348088

ARM

1шт.

24

440584

BOLT,Hex, M12 x 1.75 x 55mm, Cl 8.8, Full Thd

4шт.

25

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

26

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

27

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

28

87348846

DEFLECTOR

1шт.

31

87349774

TIE-ROD

TIE ROD

1шт.

32

280264

BOLT,Hex, M14 x 50mm, Cl 8.8

2шт.

33

140030

LOCK WASHER,M14

2шт.

34

412370

NUT,M14 x 2, Cl 8

2шт.

37

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

38

87350007

WHEEL ASSY.

1шт.

39

87350009

WHEEL ASSY.

1шт.

40

86837113

COVER

1шт.

41

86705858

BEARING ASSY,25mm ID x 52mm OD x 16.25mm W

1шт.

42

87350006

HUB

1шт.

43

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

1шт.

44

161713

BEARING ASSY,20mm ID x 47mm OD x 15.2mm W

1шт.

45

412103

SLOTTED NUT

1шт.

46

130005

COTTER PIN,M3.2 x 32

1шт.

47

86837115

CAP

1шт.

48

87399683

SUPPORT

Support

1шт.

49

87399684

SUPPORT

Support

1шт.
