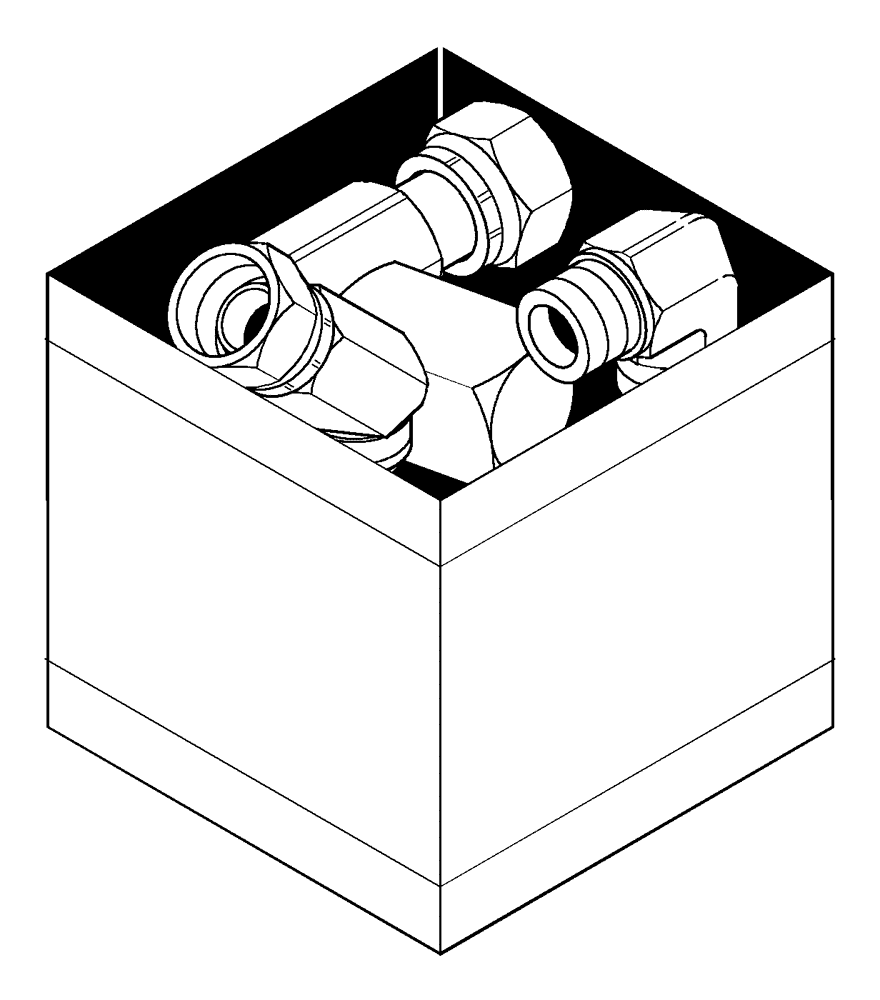

Запчасти Case IH MDX31 (K.20[2]) - KIT, SWATHBOARD 5 DISC K - Crop Processing

1

84308830

KIT

Swathboard, 5 D, Contains Ref. 2 Through 11

1шт.

Updates Disc Mower To Fixed Swathboard.

1шт.

2

84307427

REINFORCEMENT

See Fig. K.10.E.60 (02B), Ref. 35

1шт.

3

84307425

SUPPORT

See Fig. K.10.E.60 (02B), Ref. 28

1шт.

4

84307423

BOARD

See Fig. F.20.C (2A), Ref. 33

1шт.

5

87360086

SERRATED SCREW,M10 x 30mm

3шт.

6

86500689

NUT,M10 x 1.5, Cl 10

3шт.

7

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

1шт.

8

100038

NUT,M12 x 1.75, Cl 8

1шт.

9

86511099

HEX SOC SCREW,M12 x 50mm, Cl 12.9, Full Thd

3шт.

10

337475

NUT,M12, Cl 10

3шт.

11

87360262

SPACER

1шт.
