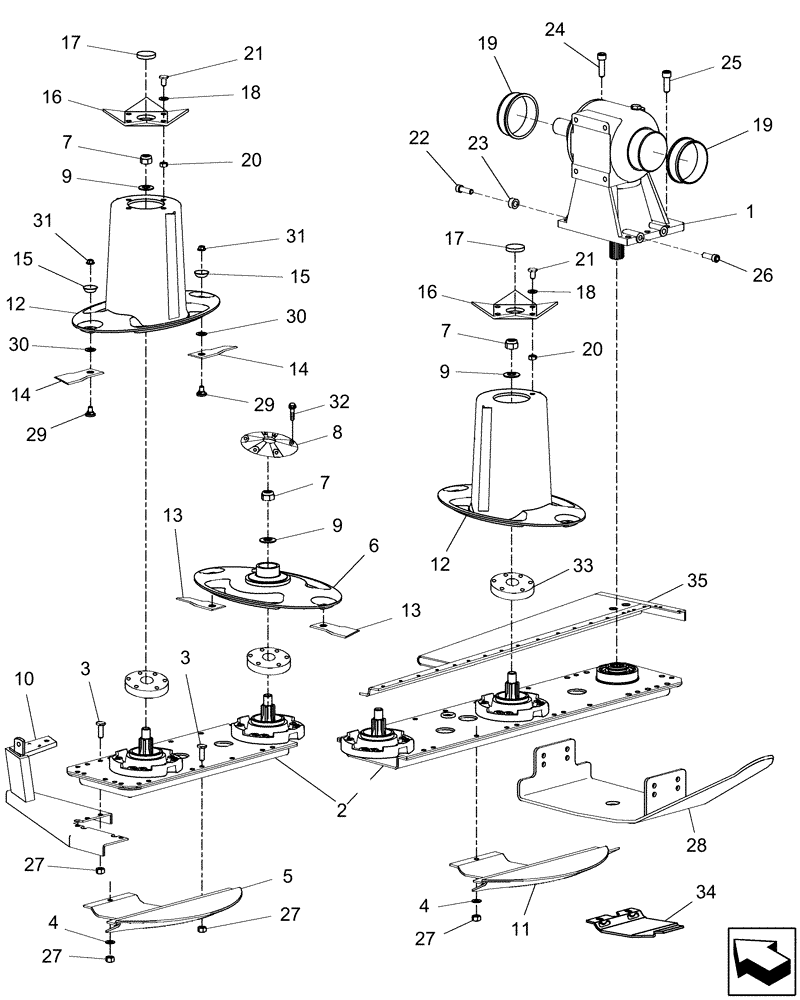

Запчасти Case IH MDX31 (K.10.E.60[02B]) - CUTTERBAR, EXTERNAL COMPONENTS - FROM PIN Y9ZSD0001 K - Crop Processing

1

87352517

GEARBOX ASSY

For Component Breakdown See Fig. K.10.E.40

1шт.

2

87362466

CUTTER

Bar; For Component Breakdown See Fig. K.10.E.60 [05]

1шт.

3

87360086

SERRATED SCREW,M10 x 30mm

M10 x 30

16шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

5

84123587

GUARD

Skid Shoe

5шт.

6

84177683

DISC

Disc

4шт.

7

832-46420

NUT,M20 x 2.5, Cl 8

6шт.

8

84177686

DISC

Cover

4шт.

9

322359

BELLEVILLE WASHER,M20 Bolt Size x 40mm OD x 3.2mm Thk

6шт.

10

87353985

SUPPORT

1шт.

10

84307462

SUPPORT

1шт.

From PIN Y9ZSD0018

1шт.

11

84123588

GUARD

Skid Shoe

1шт.

12

84177684

DISC

Cone

2шт.

13

84177687

KNIFE

Clockwise

6шт.

14

84177688

KNIFE

Counter-Clockwise

6шт.

15

87358642

CUP

12шт.

16

87348082

PLATE

2шт.

17

87362951

PLUG

2шт.

18

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

8шт.

19

87350238

BUSHING,90.5mm ID x 100.5mm OD x 30.3mm L

2шт.

20

832-46408

NUT,M8 x 1.25, Cl 8

8шт.

21

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

8шт.

22

86566100

HEX SOC SCREW,M10 x 35mm, Cl 12.9, Full Thd

2шт.

Not Used After PIN Y9ZSD0018

1шт.

23

87358999

SPACER

2шт.

Not Used After PIN Y9ZSD0018

1шт.

24

86508426

HEX SOC SCREW,M12 x 1.75 x 45mm, Cl 12.9, Full Thd

3шт.

24

86511099

HEX SOC SCREW,M12 x 50mm, Cl 12.9, Full Thd

3шт.

From PIN Y9ZSD0018

1шт.

25

280685

HEX SOC SCREW,M12 x 40mm, Cl 12.9

5шт.

26

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

27

86500689

NUT,M10 x 1.5, Cl 10

22шт.

28

87358661

SUPPORT

1шт.

28

84307425

SUPPORT

1шт.

From PIN Y9ZSD0018

1шт.

Component of Swathboard Kit 84308830, see Fig. K.20 (2) for complete listing

1шт.

29

87359007

FLANGE BOLT,M12 x 24.50mm

M12 x 24.5

12шт.

30

87358654

WASHER,64mm ID x 90mm OD x 1.5mm Thk

12шт.

31

87359003

NUT

M12

12шт.

32

84178462

SPECIAL BOLT

30шт.

33

84177686

DISC

Support

5шт.

34

84177689

SKID/SHOE

Wear

5шт.

Service Only. Can Be Mounted Beneath Ref.s 5 & 11 To Provide Additional Wear Protection (Use Existing Hardware)

1шт.

35

84307427

REINFORCEMENT

1шт.

From PIN Y9ZSD0018

1шт.

Component of Swathboard Kit 84308830, see Fig. K.20 (2) for complete listing

1шт.
