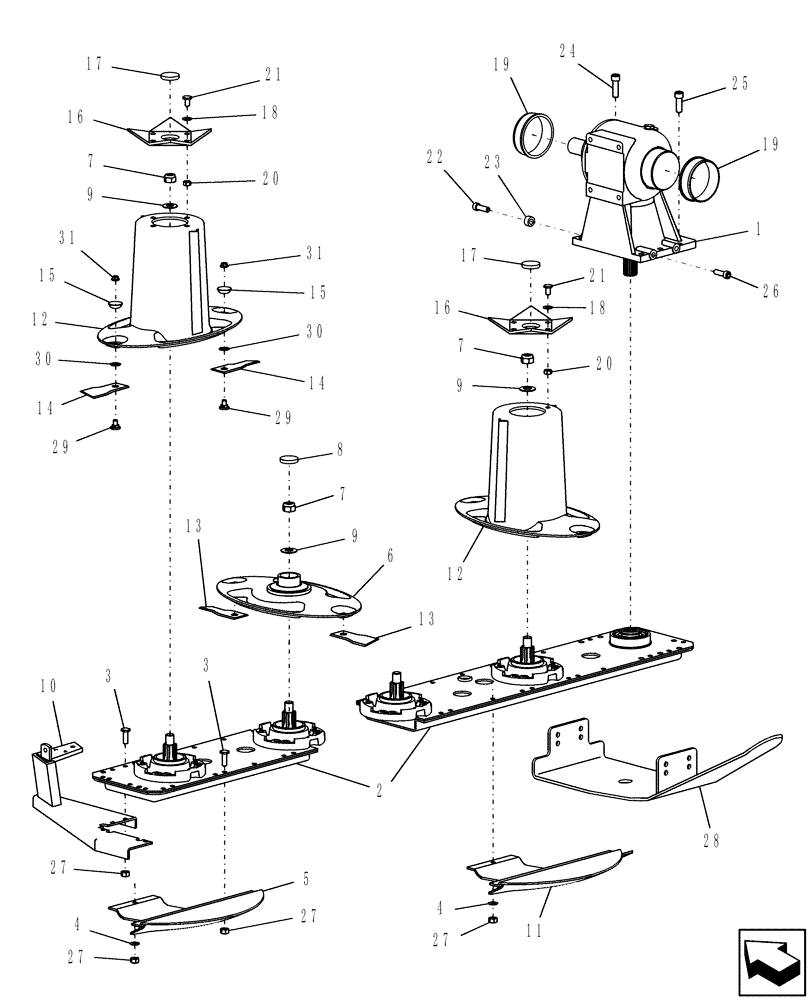

Запчасти Case IH MDX31 (K.10.E.60[02A]) - CUTTERBAR, EXTERNAL COMPONENTS - PRIOR TO PIN Y9ZSD0001 K - Crop Processing

1

87352517

GEARBOX ASSY

For Component Breakdown See Fig. K.10.E.40

1шт.

2

87362466

CUTTER

Bar; For Component Breakdown See Fig. K.10.E.60 [05]

1шт.

3

87360086

SERRATED SCREW,M10 x 30mm

M10 x 30

16шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

5

87358655

SUPPORT

Skid Shoe

5шт.

6

87359032

DISC

4шт.

7

832-46420

NUT,M20 x 2.5, Cl 8

6шт.

8

87359711

PLUG

4шт.

9

322359

BELLEVILLE WASHER,M20 Bolt Size x 40mm OD x 3.2mm Thk

6шт.

10

87353985

SUPPORT

1шт.

11

87358656

SUPPORT

Skid Shoe

1шт.

12

87358657

DISC

Cone

2шт.

13

87348087

KNIFE

Clockwise

6шт.

14

87348084

KNIFE

Counter-Clockwise

6шт.

15

87358642

CUP

12шт.

16

87348082

PLATE

2шт.

17

87362951

PLUG

2шт.

18

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

8шт.

19

87350238

BUSHING,90.5mm ID x 100.5mm OD x 30.3mm L

2шт.

20

832-46408

NUT,M8 x 1.25, Cl 8

8шт.

21

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

8шт.

22

86566100

HEX SOC SCREW,M10 x 35mm, Cl 12.9, Full Thd

2шт.

23

87358999

SPACER

2шт.

24

86508426

HEX SOC SCREW,M12 x 1.75 x 45mm, Cl 12.9, Full Thd

3шт.

25

280685

HEX SOC SCREW,M12 x 40mm, Cl 12.9

5шт.

26

86559251

HEX SOC SCREW,M10 x 1.5 x 22mm, Cl 12.9, Full Thd

2шт.

27

86500689

NUT,M10 x 1.5, Cl 10

22шт.

28

87358661

SUPPORT

1шт.

29

87359007

FLANGE BOLT,M12 x 24.50mm

M12 x 24.5

12шт.

30

87358654

WASHER,64mm ID x 90mm OD x 1.5mm Thk

12шт.

31

87359003

NUT

M12

12шт.
