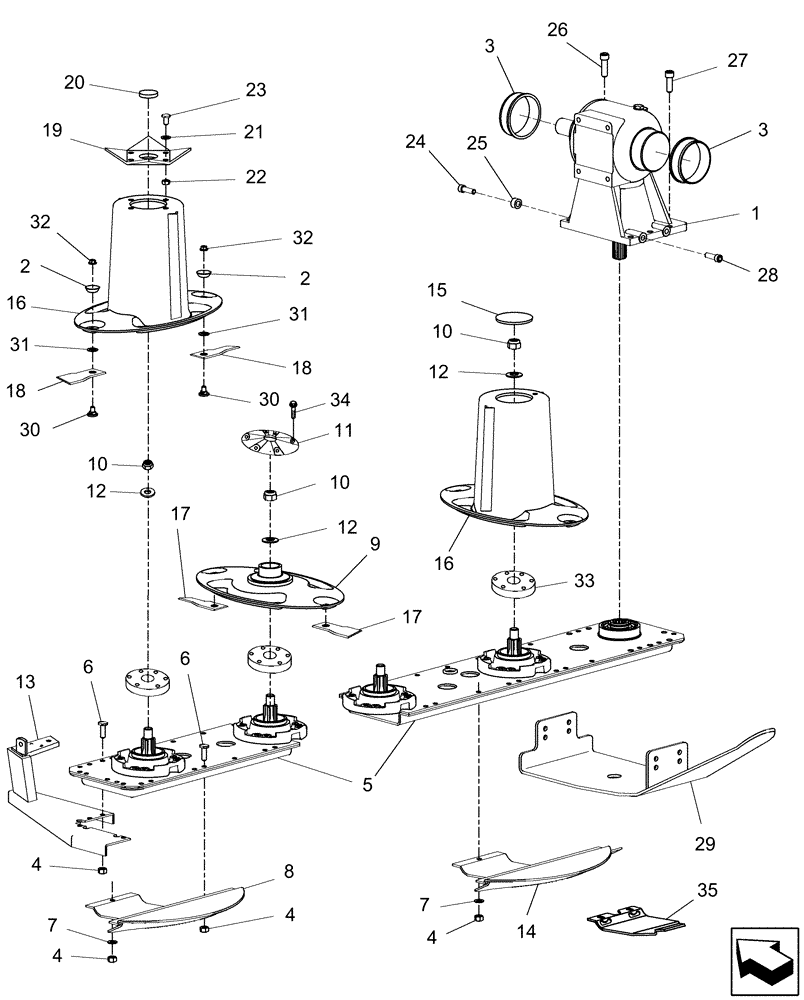

Запчасти Case IH MDX21 (K.10.E.60[01B]) - CUTTERBAR, EXTERNAL COMPONENTS - FROM PIN Y9ZSB0001 K - Crop Processing

1

87352517

GEARBOX ASSY

For Component Breakdown See Fig. K.10.E.40

1шт.

2

87358642

CUP

8шт.

3

87350238

BUSHING,90.5mm ID x 100.5mm OD x 30.3mm L

2шт.

4

86500689

NUT,M10 x 1.5, Cl 10

16шт.

5

87362465

CUTTER

Bar; For Component Breakdown, See Fig. K.10.E.60[03]

1шт.

6

87360086

SERRATED SCREW,M10 x 30mm

12шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

8

84123587

GUARD

Skid Shoe

3шт.

9

84177683

DISC

Disc

2шт.

10

832-46420

NUT,M20 x 2.5, Cl 8

4шт.

11

84177685

COVER

Cover

2шт.

12

322359

BELLEVILLE WASHER,M20 Bolt Size x 40mm OD x 3.2mm Thk

4шт.

13

87353985

SUPPORT

1шт.

13

84307462

SUPPORT

1шт.

From PIN Y9ZSB0006

1шт.

14

84123588

GUARD

Skid Shoe

1шт.

15

87358650

PLUG

1шт.

16

84177684

DISC

Cone

2шт.

17

84177687

KNIFE

Knife, Clockwise

4шт.

18

84177688

KNIFE

Knife, Counter-Clockwise

4шт.

19

87348082

PLATE

1шт.

20

87362951

PLUG

1шт.

21

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

4шт.

22

832-46408

NUT,M8 x 1.25, Cl 8

4шт.

23

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

24

86566100

HEX SOC SCREW,M10 x 35mm, Cl 12.9, Full Thd

2шт.

25

87358999

SPACER

2шт.

26

86508426

HEX SOC SCREW,M12 x 1.75 x 45mm, Cl 12.9, Full Thd

3шт.

27

280685

HEX SOC SCREW,M12 x 40mm, Cl 12.9

5шт.

28

86559251

HEX SOC SCREW,M10 x 1.5 x 22mm, Cl 12.9, Full Thd

2шт.

29

87358661

SUPPORT

1шт.

30

87359007

FLANGE BOLT,M12 x 24.50mm

M12 x 24.5

8шт.

31

87358654

WASHER,64mm ID x 90mm OD x 1.5mm Thk

8шт.

32

87359003

NUT

M12

8шт.

33

84177686

DISC

Support, Disc

4шт.

34

84178462

SPECIAL BOLT

Bolt, Drawing

4шт.

35

84177689

SKID/SHOE

Wear

4шт.

Service Only. Can Be Mounted Beneath Ref.s 8 & 14 To Provide Extra Wear Protection (Use Existing Hardware)

1шт.
