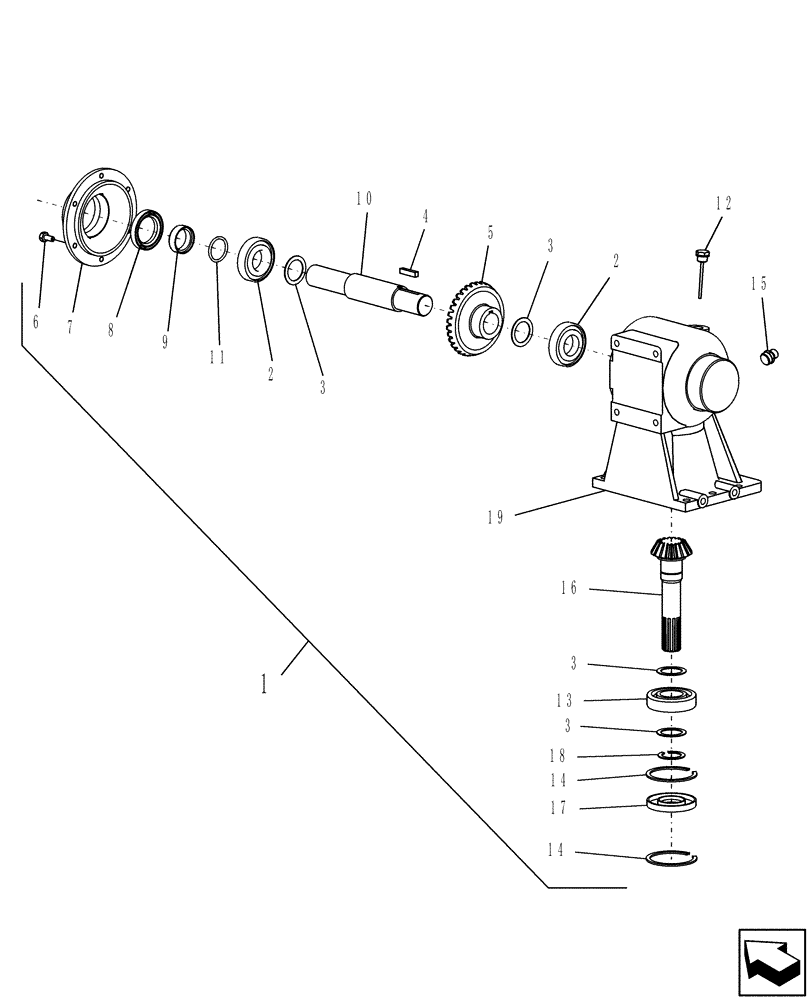

Запчасти Case IH MDX21 (K.10.E.40) - GEARBOX K - Crop Processing

1

87352517

GEARBOX ASSY

Includes: Ref.s 2 Thru 19

1шт.

2

87359683

TAPERED BEARING

2шт.

3

87359034

WASHER

4шт.

4

86539170

KEY

1шт.

5

87358988

BEVEL GEAR

1шт.

7

87358643

COVER

1шт.

8

87360613

OIL SEAL

1шт.

9

87359044

BUSHING

1шт.

10

87358644

DRIVE SHAFT

1шт.

11

87359709

O-RING,34.59mm ID x 1.568" OD x 2.62mm

1шт.

12

87358646

DIPSTICK

1шт.

13

210048

BALL BEARING,35mm ID x 80mm OD x 21mm W

1шт.

14

80300633

SNAP RING,M80, Int

2шт.

15

86539157

BREATHER,3/8" Gas

1шт.

16

87358645

PINION

1шт.

17

84814786

OIL SEAL,35mm ID x 80mm OD x 10mm Thk

1шт.

18

370004

SNAP RING,M35 x 1.5mm Thk, External

1шт.

19

87358658

HOUSING

1шт.

6

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

8шт.
