Запчасти Case IH MDX21 (E.60.A) - DECALS E - Body and Structure

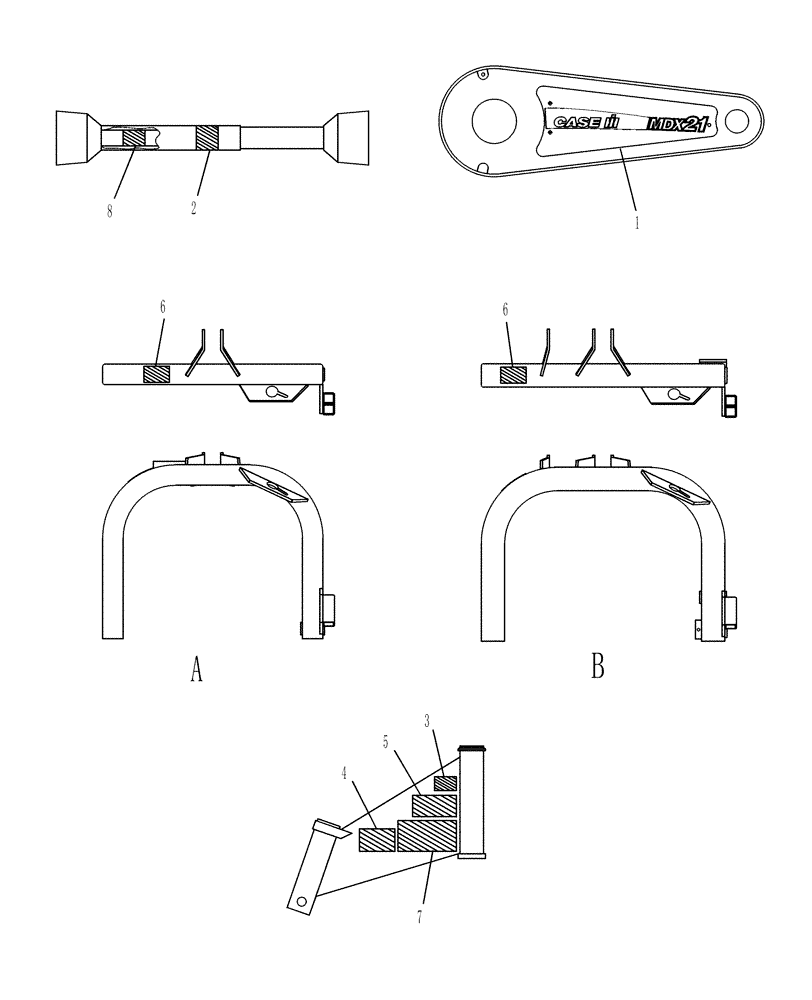

Схема запчастей Case IH MDX21 - (E.60.A) - DECALS E - Body and Structure
6
2
7
3
6
1
8
b
5
4
a

Артикул

Название

Примечание

Количество

1

87341183

DECAL

MDX21

1шт.

1

87341184

DECAL

MDX31

1шт.

1

87341187

DECAL

MDX41

1шт.

2

849471

DANGER DECAL

Rotating Driveline, English

1шт.

2

849482

DANGER DECAL

Rotating Driveline, French

1шт.

2

9801260

DANGER DECAL

DANGER, Rotating Driveline, Spanish

1шт.

3

NS

NOT SERVICED

PIN Plate

1шт.

4

86624301

WARNING DECAL

WARNING, Before Operating Machine Read; English

1шт.

4

86624302

WARNING DECAL

WARNING, Before Operating Machine Read; French

1шт.

4

86624303

DECAL

WARNING, Before Operating Machine Read; Spanish

1шт.

5

86624775

WARNING DECAL

Set Machine To Clear Obstructions, English

1шт.

5

86625172

WARNING DECAL

WARNING, Set Machine To Clear Obstructions: French

1шт.

5

86625173

WARNING DECAL

WARNING, Set Machine To Clear Obstructions, Spanish

1шт.

6

87041061

WARNING DECAL

WARNING, PTO Shielding, English

1шт.

6

87042013

DECAL

WARNING, PTO Shielding, French

1шт.

6

87042014

DECAL

WARNING, PTO Shielding, Spanish

1шт.

7

87059842

DECAL

WARNING, Before Disconnecting; English

1шт.

7

87359562

DECAL

WARNING, Before Disconnecting; French

1шт.

7

87359564

DECAL

WARNING, Before Disconnecting; Spanish

1шт.

8

849472

DANGER DECAL

- Shield Missing - English

1шт.

8

849483

DANGER DECAL

Shield Missing - French

1шт.

8

9801256

DANGER DECAL

DANGER - Shield Missing - Spanish

1шт.

Выбрано товаров: 22
