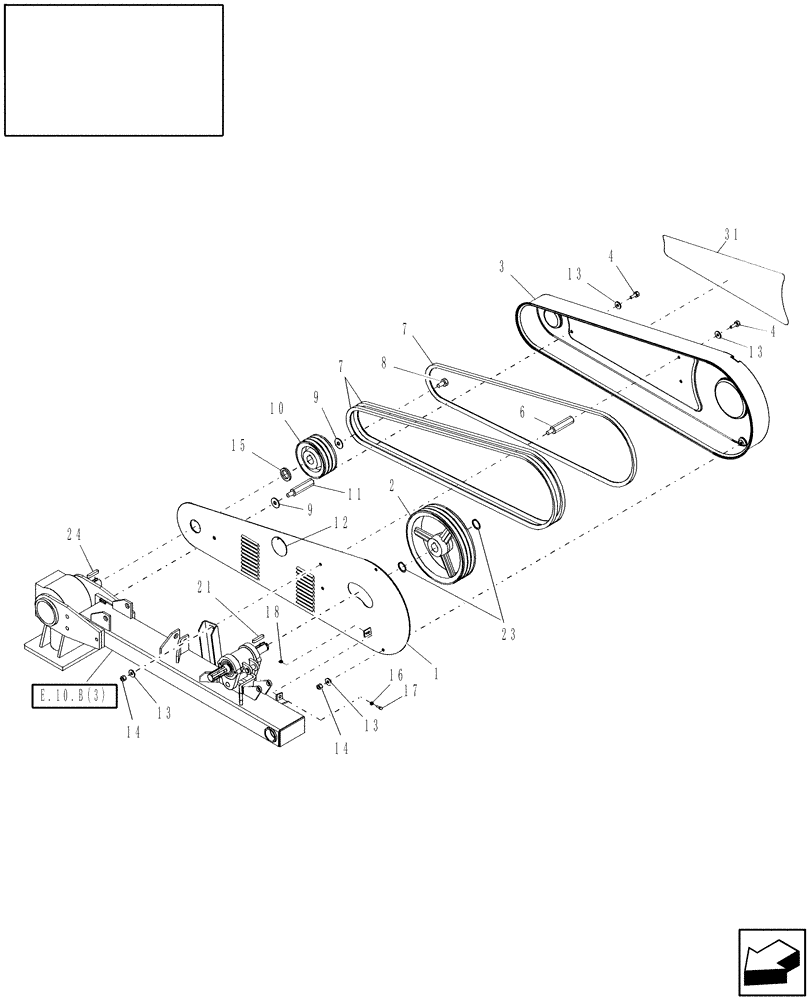

Запчасти Case IH MDX21 (C.50.B.45.40[1]) - DRIVE, PULLEYS, SHAFTS, & BELTS C - Power Train

1

87347241

COVER

1шт.

2

87349786

PULLEY

1шт.

3

87350246

COVER

1шт.

Does Not Include Decal

1шт.

4

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

5шт.

6

87350249

SPACER

4шт.

7

87358177

SET OF BELTS,2500.00 mm L

1шт.

8

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

1шт.

9

9511052

WASHER,13.5mm ID x 44mm OD x 4mm Thk

2шт.

10

87350002

PULLEY

1шт.

11

87350248

SPACER

1шт.

12

87348973

PLUG

1шт.

13

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

9шт.

14

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

15

87350245

SPACER

1шт.

16

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

1шт.

17

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

18

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

21

170012

KEY,8mm W x 50mm OAL

1шт.

23

370004

SNAP RING,M35 x 1.5mm Thk, External

2шт.

24

170012

KEY,8mm W x 50mm OAL

1шт.

31

87341183

DECAL

Case IH MDX21

1шт.

31

87655412

DECAL

Case IH MDX21, Start Year: 01-SEP-07

1шт.
