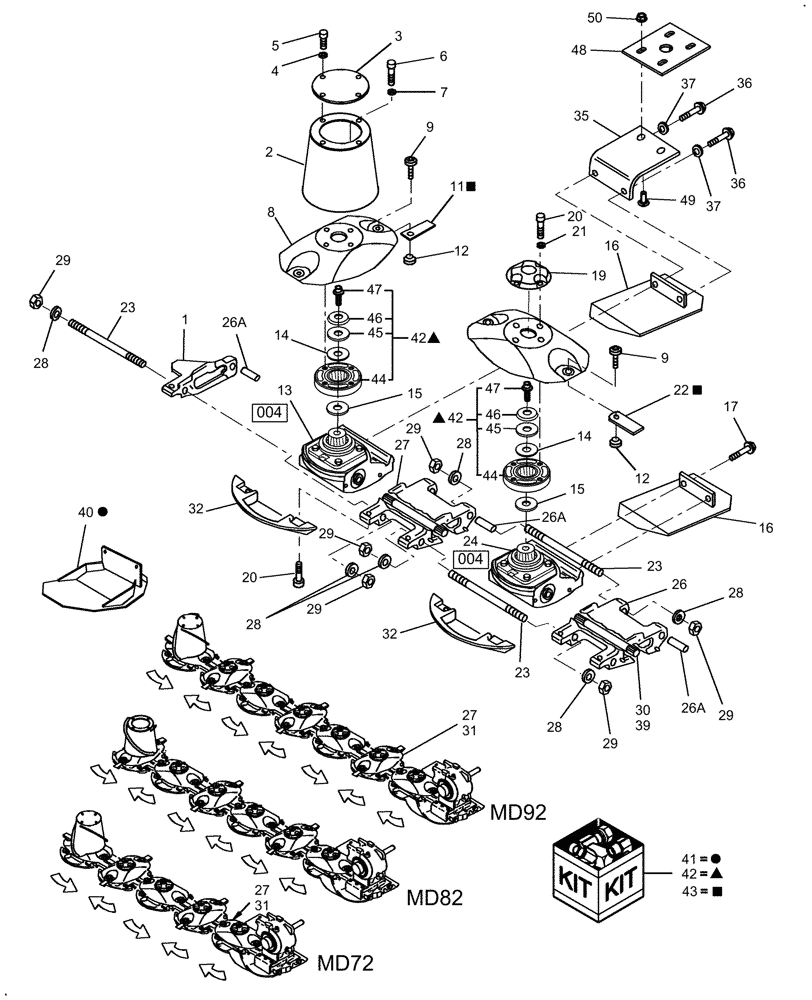

Запчасти Case IH MD92 (003) - CUTTERBAR (58) - ATTACHMENTS/HEADERS

1

86517530

ARM

RH

1шт.

2

87014710

DRUM

1шт.

3

87014708

COVER

Top

1шт.

4

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

5

87499

HEX SOC SCREW,BTN HD, 3/8" - 16 x 7/8"

4шт.

6

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

4шт.

7

262183

WASHER

4шт.

8

87342192

DISC

1шт.

9

86543211

FLANGE BOLT,Self-Locking, G8, 1/2"-13 x 13/16"

Binding Hd, Self-Locking, G8, 1/2"-13 x 13/16", (Requires 1/2" Drive Ratchet)

1шт.

11

9847684

BLADE,Knife CCW

CCW, 7° Twist

1шт.

11

86621873

BLADE

CCW, 14° Twist

1шт.

11

86532078

KNIFE

V

1шт.

11

87029588

BLADE

CCW, Over-serrated, 14° Twist

1шт.

12

87725066

NUT

Knife

1шт.

13

0C

ORDER COMPONENTS

Module, CCW

1шт.

14

87376405

LOCK WASHER,28.68mm ID x 56mm OD x 6.35mm Thk

6шт.

15

87376403

SEAL

Hub

6шт.

16

87047426

SKID/SHOE

1шт.

17

86533474

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

19

87014784

CAP

See Also: Fig. 006[1]

1шт.

20

9790143

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

1шт.

21

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

1шт.

22

9847683

BLADE,Knife CW

CW, 7° Twist

1шт.

22

86621872

BLADE

CW, 14° Twist

1шт.

22

86532078

KNIFE

V, CW

1шт.

22

87029587

BLADE

CW, Over-serrated, 14° Twist

1шт.

23

86501934

THREADED ROD

3/4" x 12 13/64"; Services Both Partially and Fully-Threaded Rods

1шт.

24

0C

ORDER COMPONENTS

Module, CW

1шт.

26

87044107

SPACER

Short, 7 7/8", Includes: Ref. 26A

1шт.

26a

86515496

GROOVED PIN,9.53mm OD x 19.05mm L

3/8 x 3/4" HT

1шт.

27

87044109

SPACER

Long

1шт.

28

86512328

WASHER,19.46mm ID x 35.05mm OD x 3.43mm Thk

1шт.

29

86518194

NUT,3/4"-10, G8

1шт.

30

86519042

SHAFT

Short, 248mm

1шт.

31

86519039

SHAFT

Long, 268mm, Used on 5 &7 Disc Cutter Bars Between Modules 1 & 2

1шт.

32

87047845

STONEGUARD

1шт.

35

87014688

SUPPORT

2шт.

36

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

4шт.

37

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

4шт.

39

9861804DS

GREASE

14 oz. Cartridge

1шт.

For Use W/Shaft, Ref. 30

1шт.

40

87622885

SHOE

Skid, High

8шт.

41

47754477

KIT

High Stub, Incl, 40, and Instructions.

1шт.

42

87580643

REPAIR KIT

Shock Hub; See Also, Fig. 006[2]

1шт.

43

86624751

KNIFE SET

Includes (10) 14° CW Blades, Ref. 22 & (10) 14° CCW Blades, Ref. 11.

1шт.

43

86624752

KNIFE SET

Includes (16) 14° CW Blades, Ref. 22 & (16) 14° CCW Blades, Ref. 11

1шт.

43

87037027

SET OF BLADES

Includes: (16) 14° CW OS Blades, Ref. 22 & (16) 14° CCW OS Blades, Ref. 11.

1шт.

44

87598765

HUB

Shock

1шт.

45

574245

WASHER,16.76mm ID x 50.8mm OD x 6.35mm Thk

1шт.

45

86589278

BELLEVILLE WASHER,17mm ID x 41.5mm OD x 4.5mm Thk

1шт.

47

87579665

BOLT,5/8" - 11 x 1-3/4"

Cap, 12 Pt, Flg Hd, 5/8"-11 x 1-3/4", Locking Patch

1шт.

Loctite patch should be 5 threads long and it starts 2 threads up from the bottom of the bolt.

1шт.

48

NS

NOT SERVICED

For Shipping Purposes Only

1шт.

49

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

3шт.

50

86521607

FLANGE NUT,Flg, 1/2"-13, G5

3шт.
