Запчасти Case IH MD92 (002) - SHIELDS (90) - PLATFORM, CAB, BODYWORK AND DECALS

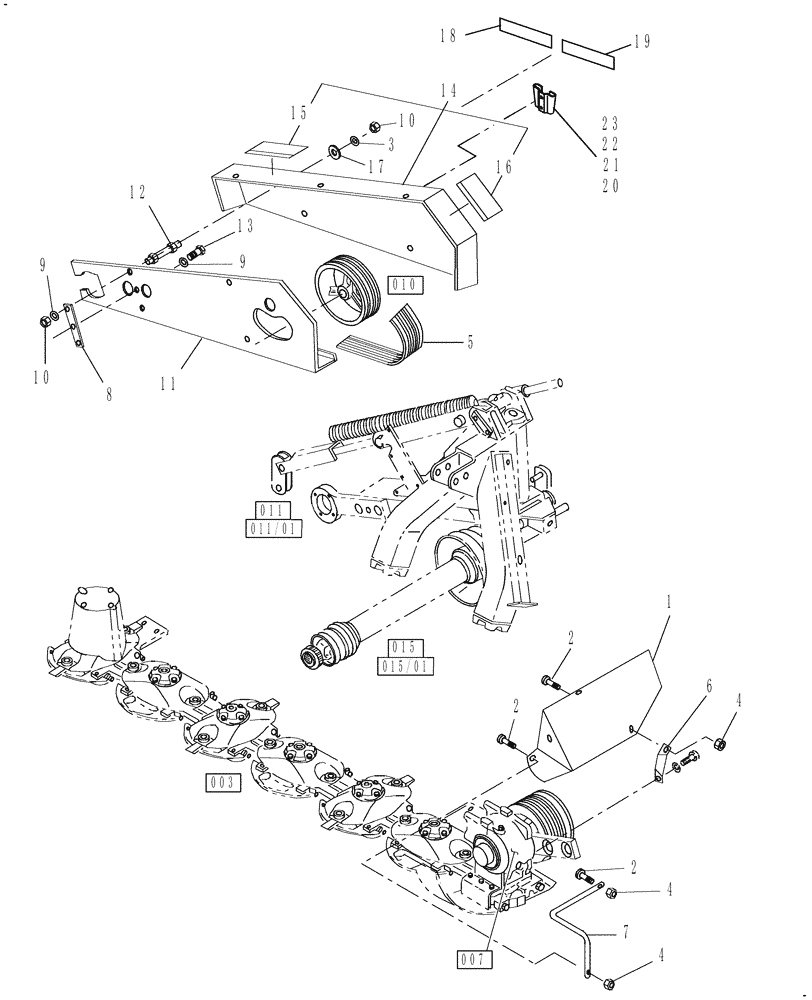

Схема запчастей Case IH MD92 - (002) - SHIELDS (90) - PLATFORM, CAB, BODYWORK AND DECALS
015
011/01
011
010
007
003
015/01
9
7
2
4
18
23
13
21
2
17
5
16
14
4
20
2
22
6
19
15
4
8
11
12
10
10
9
3
1

Артикул

Название

Примечание

Количество

1

87014831

SHIELD

MD72 & MD82

1шт.

1

87014693

SHIELD

MD92

1шт.

2

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

3шт.

3

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

4

86629544

NUT,5/16” – 18, GR B

3шт.

5

87012453

V-BELT,0.66" W x 110.90" L, 4 Ribs

1шт.

6

87014691

BRACKET

Use Existing Hardware

1шт.

7

87014840

SUPPORT

MD72

1шт.

7

87014801

SUPPORT

MD82 & MD92

1шт.

8

87014793

PLATE

1шт.

9

80680

LOCK WASHER,3/8 0.381 CST ZND

5шт.

10

9628503

NUT,3/8"-16, G5

8шт.

11

87014781

SHIELD

1шт.

12

86506790

STUD

4шт.

13

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

14

87014675

OUTER SHIELD

1шт.

15

86520230

WARNING DECAL

1шт.

15

86525978

DECAL

WARNING, French

1шт.

15

86528004

DECAL

WARNING, Spanish

1шт.

16

86628571

WARNING DECAL

Stand Clear, English

1шт.

16

86629518

WARNING DECAL

WARNING, Stand Clear, French

1шт.

16

86629519

WARNING DECAL

WARNING, Stand Clear, Spanish

1шт.

17

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

4шт.

18

86547781

REFLECTOR,RED

Red Retroreflective Tape

1шт.

19

86547783

REFLECTOR,Tape, Red Orange

Red-Orange Fluorescent Tape

1шт.

20

847590

BRACKET

SMV

1шт.

21

280616

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

22

9635082

NUT,5/16" - 18, Gr 5

2шт.

23

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

Выбрано товаров: 29
