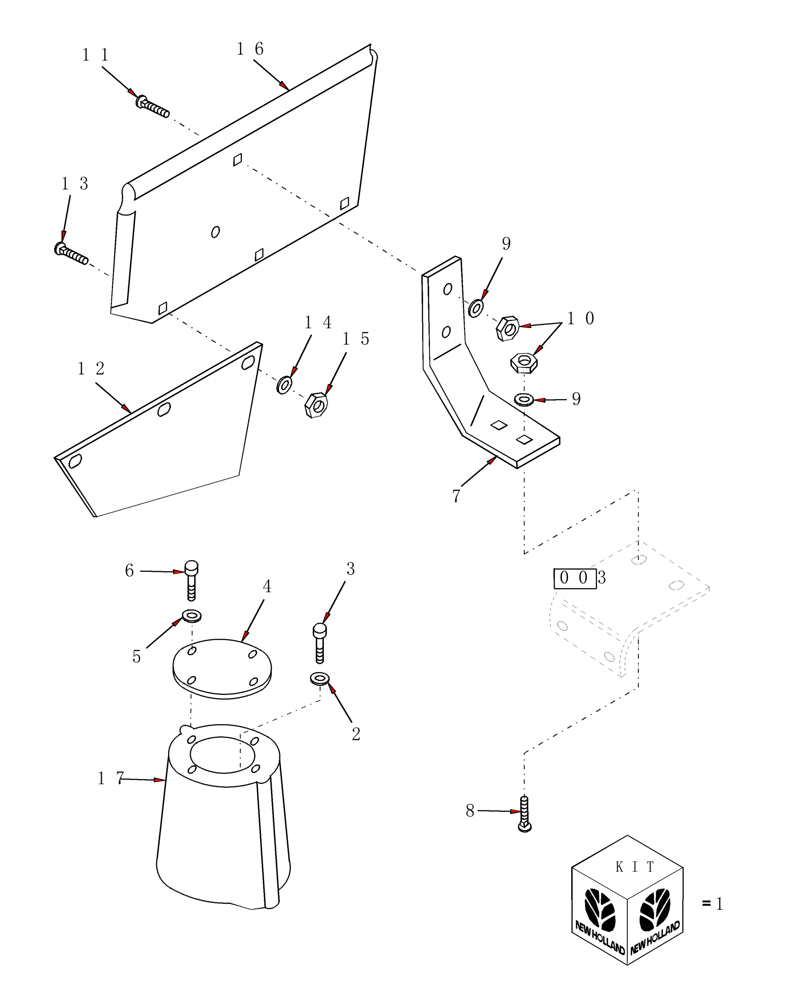

Запчасти Case IH MD92 (016) - LH WINDROW KIT (88) - ACCESSORIES

1

86560107

KIT

Windrow, LH, Includes: Ref. 2 thru 17

1шт.

2

262183

WASHER

4шт.

3

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

4шт.

4

87014707

SHIELD

Top

1шт.

5

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

6

87499

HEX SOC SCREW,BTN HD, 3/8" - 16 x 7/8"

4шт.

7

87014819

SUPPORT

LH

1шт.

8

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

2шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

10

280431

NUT,1/2"-13, G5

4шт.

11

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

2шт.

12

86515489

FLAP

Rubber Flap

1шт.

13

280430

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

14

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3шт.

15

88902

NUT,3/8"-16

3шт.

16

87014713

DEFLECTOR

H

1шт.

17

87014709

DRUM

1шт.
