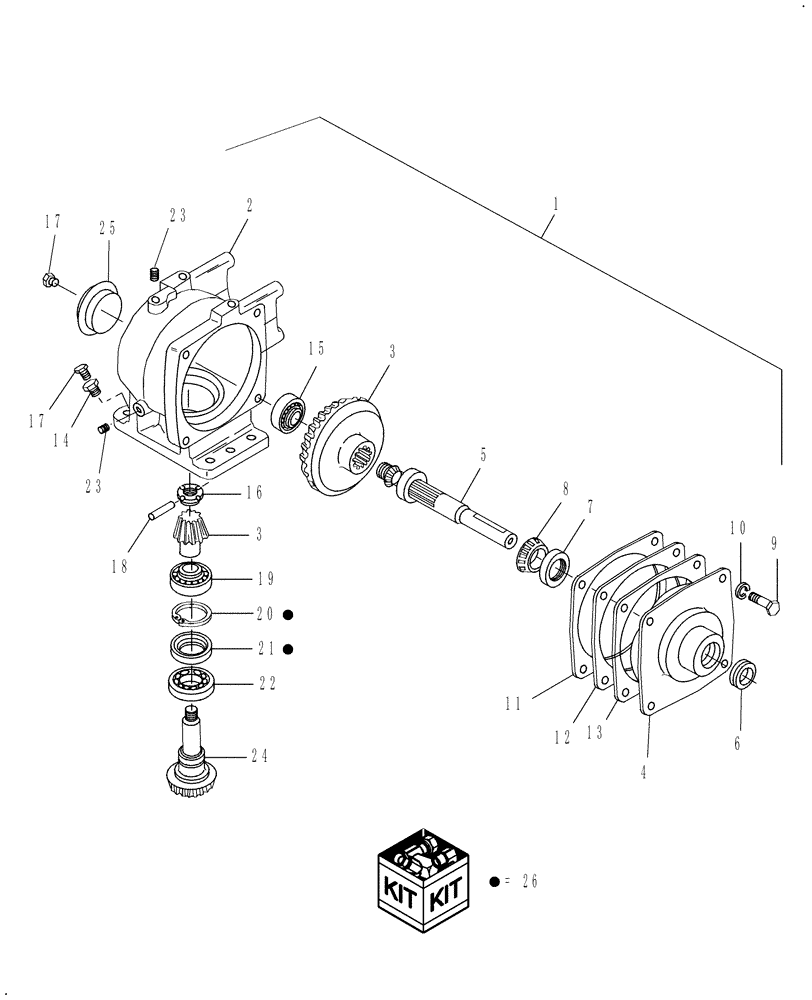

Запчасти Case IH MD92 (008) - GEARBOX BSN YFN146307 (58) - ATTACHMENTS/HEADERS

1

87039881

GEARBOX ASSY

1шт.

87039881R

REMAN-GEARBOX

MD72, MD82, MD92 All (8/08-)

1шт.

87039881C

CORE-GEARBOX

Return Number

1шт.

2

86535574

HOUSING

1шт.

3

87054844

GEAR SET

54T

1шт.

4

86525654

CAP

1шт.

5

86522616

SHAFT

W/ Collar

1шт.

6

66807

SEAL,38.1mm ID x 57.26mm OD x 7.92mm Thk

1шт.

7

86977427

BEARING CUP,76.22mm OD x 19.05mm W

1шт.

8

41480

BEARING CONE,38.11mm ID x 25.65mm W

1шт.

9

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

10

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

4шт.

11

86511689

SHIM

.002"

4шт.

12

86511690

SHIM

.003"

4шт.

13

86511691

SHIM

.010"

2шт.

14

87916

HYD CONNECTOR

Hex, Serial Range: 3/4"-1/8"

1шт.

15

86512014

SPH ROLLER BEARING,30.16mm ID x 64.29mm OD x 21.51mm W

1шт.

16

86527529

SPECIAL NUT

Slotted, Special

1шт.

17

572820

BREATHER

2шт.

18

856800

GROOVED PIN,4.76mm OD x 38.1mm L

1шт.

19

86512027

BEARING SET,1.781" ID x 3.063" OD x .781" W

1шт.

20

196287

SNAP RING

Int, 3.062"

1шт.

21

86512489

SEAL

1шт.

22

86512026

TAPERED BEARING,50.8mm ID x 82.55mm OD x 23.62mm W

1шт.

23

80781

PLUG,3/8" - 18 NPT

Pipe

2шт.

24

87036674

BEVEL GEAR

Gear, 25T

1шт.

25

86608136

CAP COVER

1шт.

26

86560104

SEAL KIT

Seal & Retaining Ring

1шт.
