Запчасти Case IH MD82 (001) - COVERS & SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS

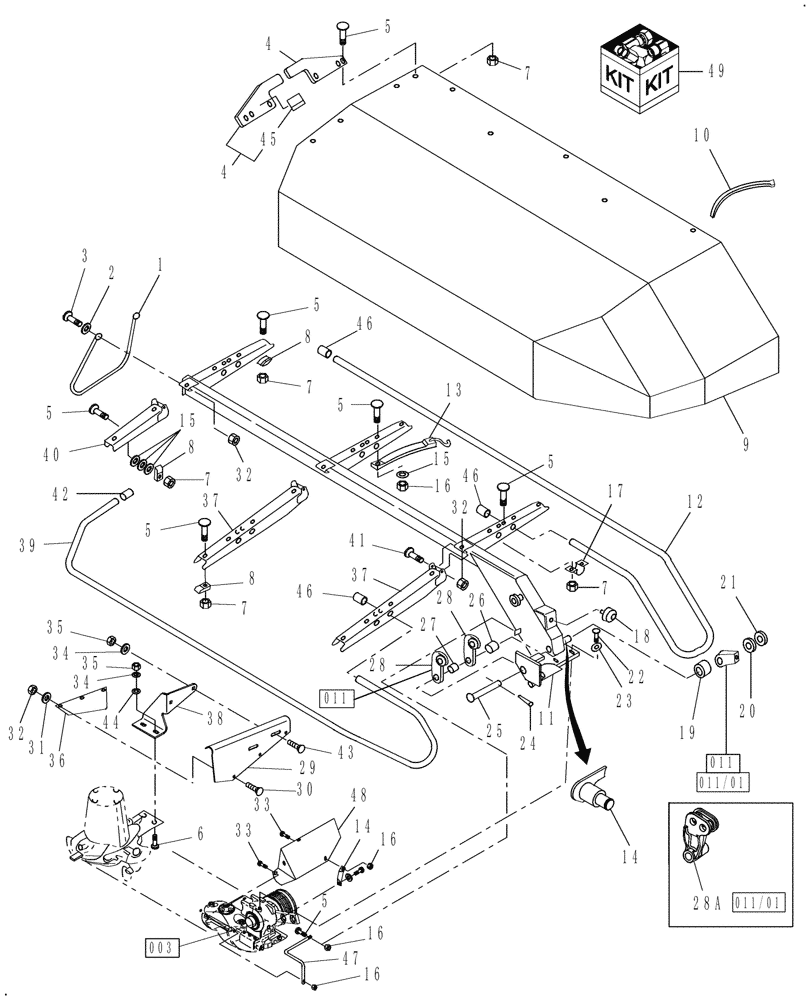

Схема запчастей Case IH MD82 - (001) - COVERS & SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS
011
25
36
30
46
16
10
4
16
19
11
26
35
5
5
5
46
28
44
31
14
32
47
37
8
5
40
32
7
7
38
32
9
28a
7
21
39
34
15
28
17
16
27
8
5
13
7
7
29
23
4
6
43
14
33
3
42
37
49
5
34
18
5
35
41
22
2
16
1
20
8
12
33
15
48
24
46
45
011/01
011/01
003
011

Артикул

Название

Примечание

Количество

1

87014802

SUPPORT

1шт.

2

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

3

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

4

87014622

GUARD

Includes: Ref 45

2шт.

5

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

9шт.

6

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

2шт.

7

145458

SERRATED NUT,5/16"-18 GR 5 ZND

8шт.

8

86510639

CLAMP,27mm ID, 9mm Bolt Hole, J Type

4шт.

9

86622313

CURTAIN

MD72

1шт.

Includes decals.

1шт.

9

86622314

CURTAIN

MD82

1шт.

Includes decals.

1шт.

9

86622315

CURTAIN

MD92

1шт.

Includes decals.

1шт.

10

529070

CABLE TIE,368.3mm L

CABLE STRAP

6шт.

11

87025760

SUPPORT ASSY.

Cover, MD72

1шт.

11

87060334

SUPPORT ASSY.

Cover, MD82

1шт.

11

87060335

SUPPORT ASSY.

Cover, MD92

1шт.

12

87014565

PIPE

Rear, MD72

1шт.

12

87014706

PIPE

Rear, MD82

1шт.

12

87014564

PIPE

Rear, MD92

1шт.

13

86518682

FASTENER

1шт.

14

87014691

BRACKET

1шт.

15

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

7шт.

16

145458

SERRATED NUT,5/16"-18 GR 5 ZND

1шт.

17

86510640

BRACKET

2шт.

18

9605140

BUMPER

1шт.

19

87014841

HUB

1-7/8" L

1шт.

20

27373

WASHER,29.37mm ID x 50.8mm OD x 3.17mm Thk

1шт.

21

244245

SNAP RING,#112, Ext

1шт.

22

86539437

LOCK BOLT,Hex, 1/2" x 1.25", Gr 8

Cap, HH, Self-Locking, G8, 1/2"-13 x 1-1/4"

6шт.

23

262183

WASHER

6шт.

24

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

1шт.

25

86510463

PIN

1шт.

26

87014794

HUB

MD72

1шт.

27

86636638

HUB

MD72

1шт.

28

87014823

LINK

MD72

2шт.

28a

87047824

ARM ASSY.

MD82 & MD92

1шт.

29

87059286

SWATHBOARD

RH, Use W/ Ref. 38

1шт.

30

280430

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

31

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3шт.

32

88902

NUT,3/8"-16

7шт.

33

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

2шт.

34

80679

LOCK WASHER,1/20.507 CST ZND

5шт.

35

280431

NUT,1/2"-13, G5

5шт.

36

86515489

FLAP

Rubber Flap

1шт.

37

87025758

SUPPORT ASSY.

Front

2шт.

38

87059287

SUPPORT

RH, Use W/ Ref. 29

1шт.

39

87014811

PIPE

Front, MD72

1шт.

39

87014562

PIPE

Front, MD82

1шт.

39

87014816

PIPE

Front, MD92

1шт.

40

87014563

SUPPORT

1шт.

41

88959

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

3шт.

42

180418

PLUG

1шт.

43

87868

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

1шт.

44

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

45

86628571

WARNING DECAL

WARNING - Stand Clear - English

1шт.

45

86629518

WARNING DECAL

WARNING - Stand Clear - French

1шт.

45

86629519

WARNING DECAL

WARNING - Stand Clear - Spanish

1шт.

46

86528337

CAP

3шт.

47

87014840

SUPPORT

MD72

1шт.

47

87014801

SUPPORT

MD82 & MD92

1шт.

48

87014831

SHIELD

MD72

1шт.

48

87014693

SHIELD

MD82 & MD92

1шт.

49

717355006

DIA KIT, ADD PROD

Kit, RH Swathboard; Includes: Ref.s 6, 29 Thru 32, 34 Thru 36, 38, 43, & 44

1шт.

Выбрано товаров: 65
