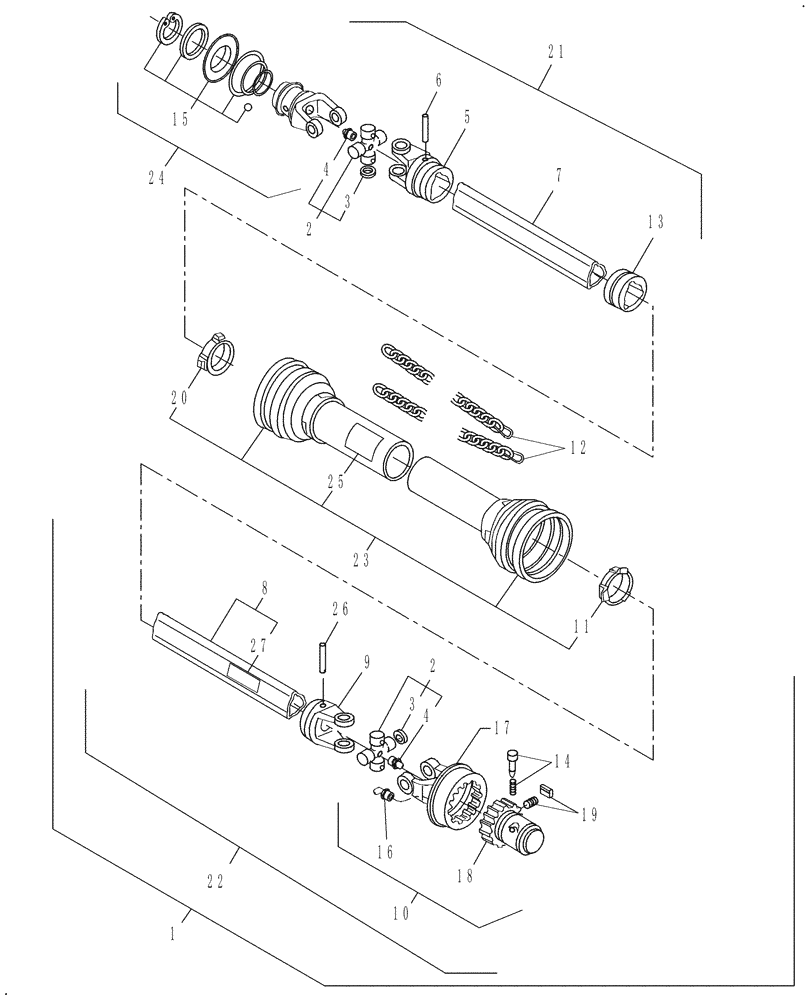

Запчасти Case IH MD72 (015) - PTO, MD72 (31) - IMPLEMENT POWER TAKE OFF

1

87013311

PTO

Complete, Includes: Ref. 2 - 27

1шт.

2

87018246

SPIDER

Includes Ref. 3 & 4 [Lube fitting at center, as shown]

1шт.

2

87520078

SPIDER ,U-JOINT

JOINT, SPIDER Includes Ref. 3 & 4 [Lube fitting at end of boss, not shown]

2шт.

3

301642

SNAP RING,M28, Int

8шт.

4

150024

LUBE NIPPLE,45 Degree, M8 x 1

2шт.

5

274236

YOKE

Front

1шт.

6

87520073

ROLL PIN

1шт.

7

87018247

TUBE,415 mm L

Female

1шт.

8

87018248

TUBE,36.30 mm OD x 420 mm L

Male

1шт.

9

274240

YOKE

Rear

1шт.

10

87018249

PTO CLUTCH

Includes: Ref. 14, 17 - 19

1шт.

11

277839

RING

Bearing

1шт.

12

278645

CHAIN

Safety

2шт.

13

86520382

SLEEVE

Grease

1шт.

14

782083

LOCK PIN

Kit

1шт.

15

87018254

KIT

PTO, Lock Collar

1шт.

16

278921

LUBE NIPPLE

1шт.

17

NSS

NOT SOLD SEPARAT

Housing, Clutch

1шт.

18

NSS

NOT SOLD SEPARAT

Hub

1шт.

19

NSS

NOT SOLD SEPARAT

Clutch, Ratchet

3шт.

20

277838

RING

Bearing

1шт.

21

87018259

FRONT PTO ASSY

Includes: Ref. 2, 5 -7, 12, 13, 20, 23 - 25 & 27

1шт.

22

87018260

REAR PTO ASSY

Includes: Ref. 2, 8 - 12, 23 & 26

1шт.

23

87614370

SHIELD

Includes Ref. 11, 12, 20 & 25 [For use when lube fitting is at center of Ref 2]

1шт.

23

84199537

PTO

Shield, Includes Ref. 11, 12, 20 & 25 [For use when lube fitting is at end of Ref 2]

1шт.

24

87018245

YOKE

Includes: Ref. 15

1шт.

25

849471

DANGER DECAL

1шт.

25

849482

DANGER DECAL

French

1шт.

25

9801260

DANGER DECAL

DANGER - Spanish

1шт.

26

86625846

PIN

Spring

1шт.

27

849472

DANGER DECAL

1шт.

27

849483

DANGER DECAL

French

1шт.

27

9801256

DANGER DECAL

DANGER - Spanish

1шт.
