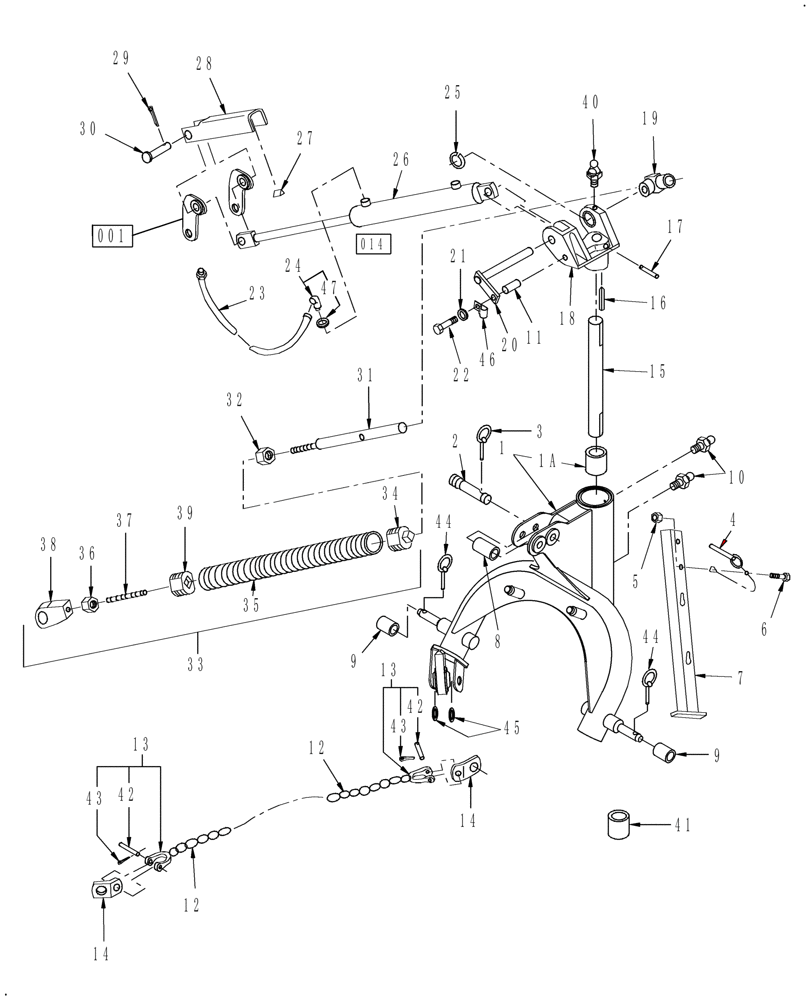

Запчасти Case IH MD72 (011) - FRAME, MAIN, MD72 (58) - ATTACHMENTS/HEADERS

1

87014567

FRAME

1шт.

Includes decals.

1шт.

1a

86517392

BUSHING,76.43mm ID x 89.23mm OD x 63.5mm L

2шт.

2

86510381

PIN

1шт.

3

270184

LINCH PIN,6.35mm OD

1шт.

4

86510262

PIN,15.88mm OD

1шт.

5

280129

NUT,1/4"-20

1шт.

6

280492

BOLT,Hex, 1/4" - 20 x 3 1/2", Gr 5

1шт.

7

87014833

STAND

Stand

1шт.

8

86584601

BUSHING

Cat. I to I, Serial Range: I-II

1шт.

To be used to mount to tractors with Category II 3 Point Hitch

1шт.

9

87760407

BUSHING,22.4mm ID x 28.4mm OD x 44.4mm L

22.4 mm ID x 44.4 mm L, Cat. I to I, Serial Range: I-II

2шт.

To be used to mount to tractors with Category II 3 Point Hitch

1шт.

10

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

2шт.

11

87655399

SPACER

1шт.

12

9826529

CHAIN,799mm L

Safety

2шт.

13

573120

SHACKLE

Chain Shackle

4шт.

14

86573217

CONNECTING LINK

4шт.

15

86506573

PIN,44.45mm OD x 455mm L

1шт.

16

87496

KEY

Square, 3/8" x 2-1/2"

1шт.

17

280578

PIN,9.53mm OD x 69.85mm L

2шт.

18

86506848

PIVOT ASSY.

Top

1шт.

19

86515075

PIVOT ASSY.

Pivot

1шт.

20

87014810

PIN,25.4mm OD x 219mm L

1шт.

21

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

22

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

23

86513851

HOSE,9.53mm ID x 1828.8mm L, SAE 100R17

1шт.

24

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

25

37185

SNAP RING

Ext, M50

1шт.

26

87515541

CYLINDER,Double Acting, 28.57mm Rod, 540.51mm Stroke

Hydraulic, 2.5 x 21.8

1шт.

26

87515541R

REMAN-HYD CYLINDER

MD72 (8/08-)

1шт.

26

87515541C

CORE-HYD CYLINDER

Return Number

1шт.

27

216328

BUMPER

1шт.

28

87014687

CHANNEL

1шт.

29

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

1шт.

30

514864

PIN

Clevis, 1" x 3-1/8"

1шт.

31

86515706

ROD

1шт.

32

87919

JAM NUT,Jam, 1"-8, G2

1шт.

33

86515701

SPRING

Complete

1шт.

34

86515704

SPRING NUT

Spring

1шт.

35

NSS

NOT SOLD SEPARAT

Spring, Extension

1шт.

36

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

37

86519106

ROD

180mm L

1шт.

38

86519104

EAR

Ear

1шт.

39

86515702

SPRING NUT

Spring

1шт.

40

87414

LUBE NIPPLE,1/4" - 28

1шт.

41

87014718

SPACER

Optional, for use W/Cat. III Tractors

2шт.

42

64162

CLEVIS PIN,12.6mm OD x 54.76mm L

1/2" x 2"

2шт.

43

80755

COTTER PIN,1/8" OD x 1" L

1шт.

44

132757

LINCH PIN,11.11mm OD x 44.45mm L

2шт.

45

86629477

WASHER

1-1/8"ID x 1-5/8"OD x 1/8" Thk

2шт.

46

86512388

CLAMP,19.05mm ID, 10.41mm Bolt Hole, P Type

1шт.

47

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
