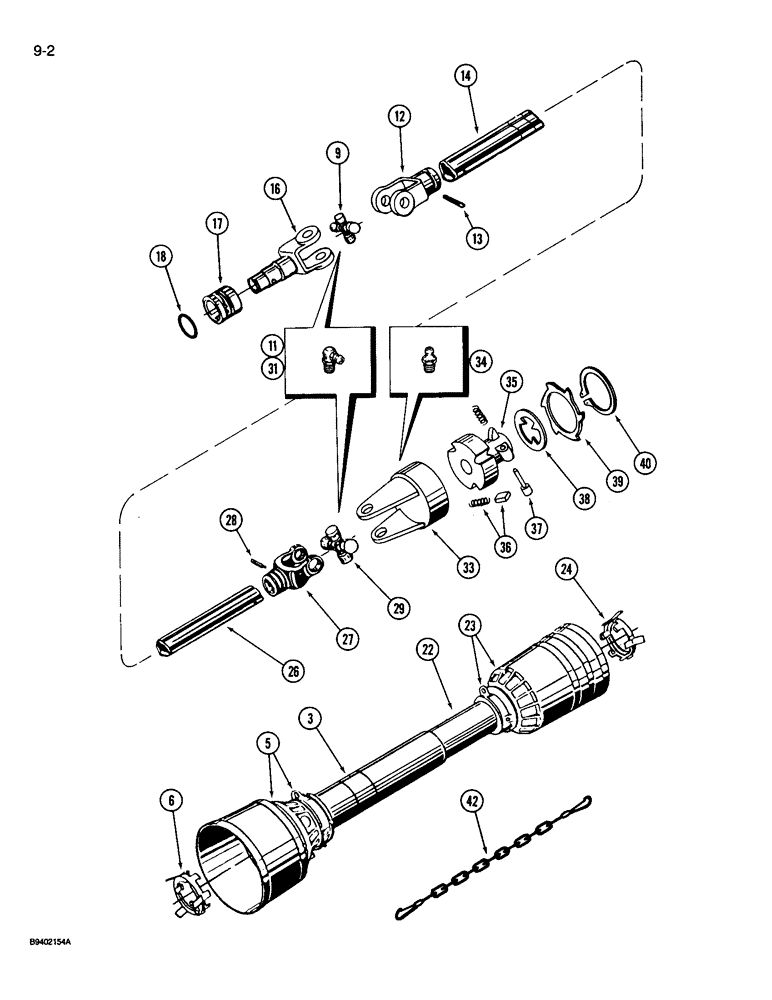

Запчасти Case IH 3206 (9-02) - IMPLEMENT INPUT SHAFT (09) - CHASSIS/ATTACHMENTS

ZA526342

JOINT

SHAFT ASSEMBLY - tractor half

1шт.

ZA526340

SHIELD

ASSEMBLY - implement input

1шт.

3

NSS

NOT SOLD SEPARAT

SHIELD - implement input

1шт.

96335C1

PRODUCT GRAPHIC

DECAL - warning, implement input shield, not shown, see page 9-37

1шт.

5

NSS

NOT SOLD SEPARAT

CONE - shield

1шт.

6

700708773

BEARING COVER

BEARING - guard (replaces ZA210334)

1шт.

9

700708781

BEARING ASSY

JOINT ASSEMBLY - universal (replaces ZA210344)

1шт.

11

700707193

NIPPLE, LUBE

FITTING - grease (replaces ZA210343)

1шт.

12

NSS

NOT SOLD SEPARAT

YOKE - tractor

1шт.

item #12 yoke is case no. 1988122c1

1шт.

13

CAS763896

SPLIT PIN/SAFETY PIN

PIN - tractor yoke (replaces ZA210325)

1шт.

14

NSS

NOT SOLD SEPARAT

TUBE - yoke

1шт.

1326528C1

DECAL

- danger, missing shield, not shown, see page 9-37

1шт.

1969123C1

LINKAGE YOKE

YOKE ASSEMBLY - twist collar

1шт.

16

NSS

NOT SOLD SEPARAT

YOKE - tractor end

1шт.

item #16 yoke is case no. za526320 djo 7/31/97

1шт.

17

1960445C1

COLLAR

- twist

1шт.

18

1960446C1

RING

- retaining

1шт.

ZA526343

JOINT

SHAFT ASSEMBLY - implement half

1шт.

ZA526341

SHIELD

ASSEMBLY - implement input

1шт.

22

NSS

NOT SOLD SEPARAT

SHIELD - implement input

1шт.

23

NSS

NOT SOLD SEPARAT

CONE - shield

1шт.

24

700708772

BEARING COVER

BEARING - guard (replaces ZA210335)

1шт.

26

NSS

NOT SOLD SEPARAT

TUBE - yoke

1шт.

27

NSS

NOT SOLD SEPARAT

YOKE - implement half

1шт.

28

763888

SPLIT PIN/SAFETY PIN

PIN - implement yoke (replaces ZA210328)

1шт.

29

700708781

BEARING ASSY

JOINT ASSEMBLY - universal, replaces ZA210344

1шт.

31

700707193

NIPPLE, LUBE

FITTING - grease (replaces ZA210343)

1шт.

ZA551180

YOKE

CLUTCH AND YOKE ASSEMBLY

1шт.

33

700709052

FORK

HOUSING - clutch (replaces ZA551182)

1шт.

34

700708915

NIPPLE, LUBE

FITTING - grease (replaces ZA551181)

1шт.

35

ZA551184

HUB

- clutch

1шт.

ref #35 (P/N ZA551184) - If unit has twist collar that pushes in pin on ref 35, he may have Bondioli-parsi # RS240080001 also large. R-He has 1969123C1.

1шт.

36

700708779

RATCHET

SPRING ASSEMBLY - ratchet tooth (replaces ZA551183 and ZA106556)

3шт.

37

700708790

KIT

PIN - push (replaces ZA210331)

1шт.

ref #37 P/N 700708790) - includes spring and washer

1шт.

38

700708778

RING

- seal (replaces ZA551185)

1шт.

39

700708777

WASHER

- retaining special (replaces ZA551186)

1шт.

40

700708775

SNAP RING

RING - retaining (replaces ZA551187)

1шт.

42

ZA527088

CHAIN (AG)

CHAIN - shield

1шт.
