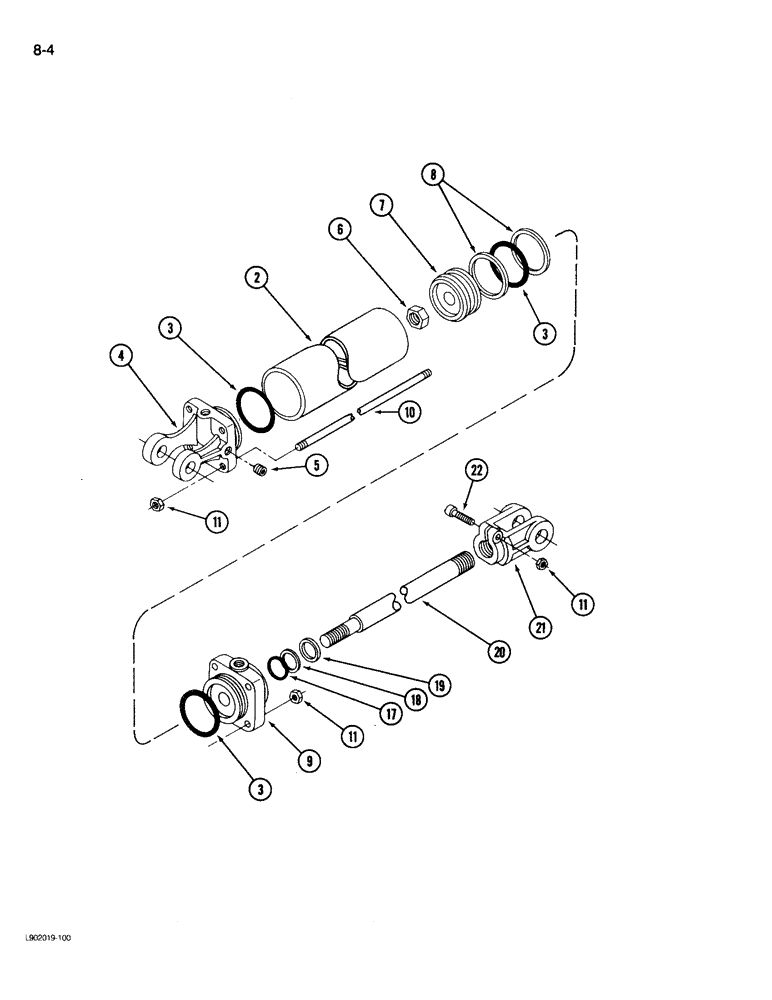

Запчасти Case IH 3206 (8-4) - HYDRAULIC CYLINDER (08) - HYDRAULICS

ZA526085

CYLINDER

ASSEMBLY - hydraulic, no longer available, order ZA527933 cylinder

1шт.

ZA527933

CYLINDER

ASSEMBLY - hydraulic, replaces ZA526085

1шт.

2

NSS

NOT SOLD SEPARAT

BARREL - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - sealing

3шт.

Part of Seal Repair Kit, P/N ZA207009

1шт.

4

B17277

CLEVIS

END - cylinder clevis

1шт.

5

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

- hex socket, 3/8 inch

1шт.

6

232-46112

LOCK NUT,3/4"-16, GC

NUT, LOCK, 3/4"-16, GC

1шт.

7

B17272

PISTON

- cylinder, replaces 851022C1

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - backup

2шт.

Part of Seal Repair Kit, P/N ZA207009

1шт.

9

ZA207015

HEAD

- cylinder

1шт.

10

ZA526333

ROD

- tie, cylinder, used with ZA526085 cylinder

4шт.

10

ZA401311

ROD

- tie, cylinder, used with ZA527933 cylinder

4шт.

11

425-106

NUT,3/8"-16, Cl 5

9шт.

17

NSS

NOT SOLD SEPARAT

O-RING - cylinder head

1шт.

Part of Seal Repair Kit, P/N ZA207009

1шт.

18

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

Part of Seal Repair Kit, P/N ZA207009

1шт.

19

NSS

NOT SOLD SEPARAT

WIPER - cylinder

1шт.

Part of Seal Repair Kit, P/N ZA207009

1шт.

20

ZA526332

PISTON ROD

ROD - cylinder

1шт.

21

ZA207012

CLEVIS

- cylinder end

1шт.

22

61-33828

HEX SOC SCREW,3/8"-16 x 1 3/4"

SCREW - cap, hex socket, 3/8 NC x 1-3/4 inch

1шт.

ZA207009

KIT

- seal repair, Includes: ref. nos. 3, 8, 17, 18, 19

1шт.
