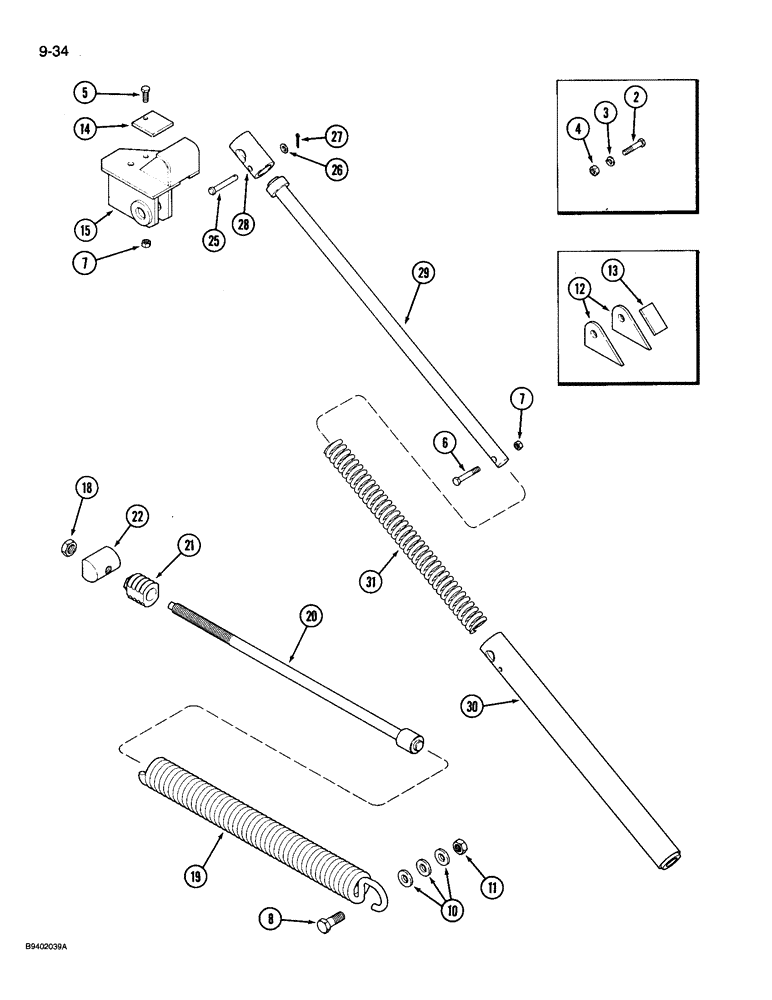

Запчасти Case IH 3206 (9-34) - FLOTATION KIT (09) - CHASSIS/ATTACHMENTS

ZA527275

KIT

FLOTATION KIT

1шт.

2

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

1шт.

3

492-11038

LOCK WASHER,3/8"

1шт.

4

425-106

NUT,3/8"-16, Cl 5

1шт.

5

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

6

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

1шт.

7

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

2шт.

8

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

BOLT - carriage, 5/8 NC x 1-3/4 inch

1шт.

10

1980597C1

WASHER

- 21/32 x 1-1/2 x 1/4 inch

3шт.

11

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

12

NSS

NOT SOLD SEPARAT

ANCHOR - cylinder (See Note)

2шт.

13

NSS

NOT SOLD SEPARAT

GUSSET (See Note)

1шт.

14

ZA527069

PLATE

- pivot

1шт.

15

ZA527065

ANCHOR

- cylinder

1шт.

NSS

NOT SOLD SEPARAT

EXTENSION ASSEMBLY - flotation kit

1шт.

18

425-1412

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4 inch NC

1шт.

19

ZA527041

SPRING

- float

1шт.

20

ZA527042

ROD

- tension

1шт.

21

ZA527045

INSERT

- spring

1шт.

22

ZA527046

PIVOT

BAR - pivot

1шт.

NSS

NOT SOLD SEPARAT

TENSION ASSEMBLY - flotation kit

1шт.

25

602032R1

HEADED PIN,3/8" x 2 7/16"

PIN - 3/8 x 2.438 inch

1шт.

26

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

27

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

28

ZA526131

SPACER

- tension shaft end

1шт.

29

ZA527050

SHAFT

- tension

1шт.

30

ZA527052

TUBE

- tension

1шт.

31

ZA527056

SPRING

- float

1шт.
