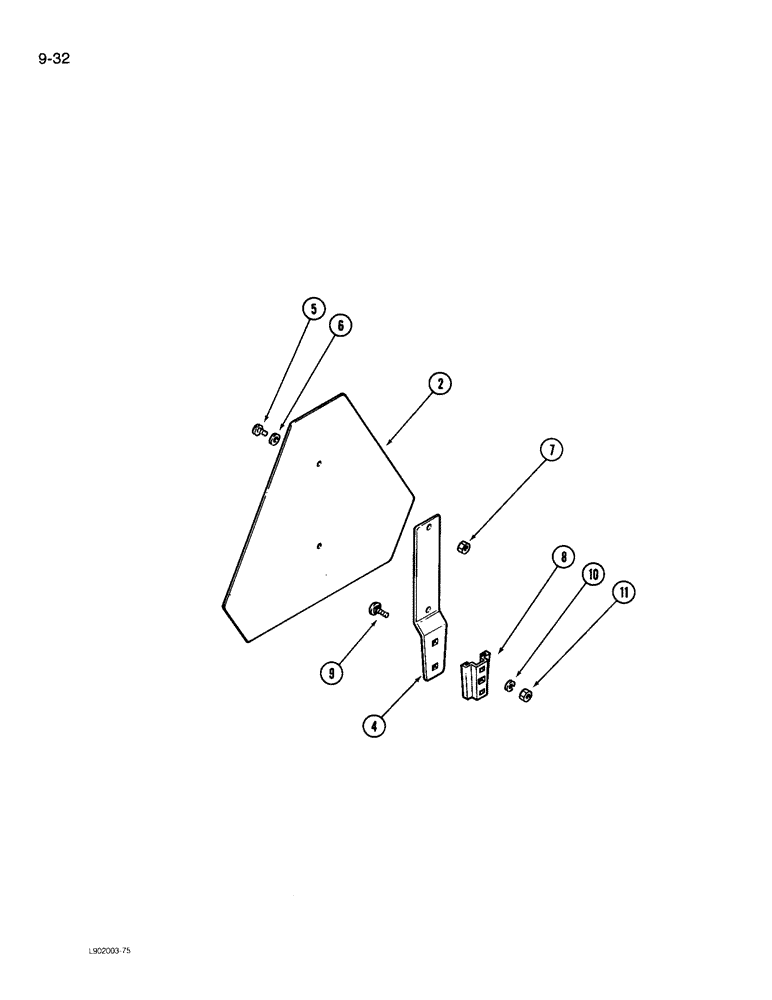

Запчасти Case IH 3206 (9-32) - SMV EMBLEM (09) - CHASSIS/ATTACHMENTS

407220R1

PRODUCT GRAPHIC

KIT - slow moving vehicle

1шт.

2

NSS

NOT SOLD SEPARAT

EMBLEM - slow moving vehicle (Order 407220R1)

1шт.

321-4311

DECAL

- slow moving vehicle

1шт.

4

NSS

NOT SOLD SEPARAT

BRACKET - emblem support (Order 407220R1)

1шт.

5

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- pan head machine, No.10 NC x 1/4 inch

2шт.

6

607893R1

WASHER

- 7/32 x 1/2 x 1/16 inch

2шт.

7

225-14110

NUT,#10-24

2шт.

8

A59457

BRACKET

- mounting

1шт.

9

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

2шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.
