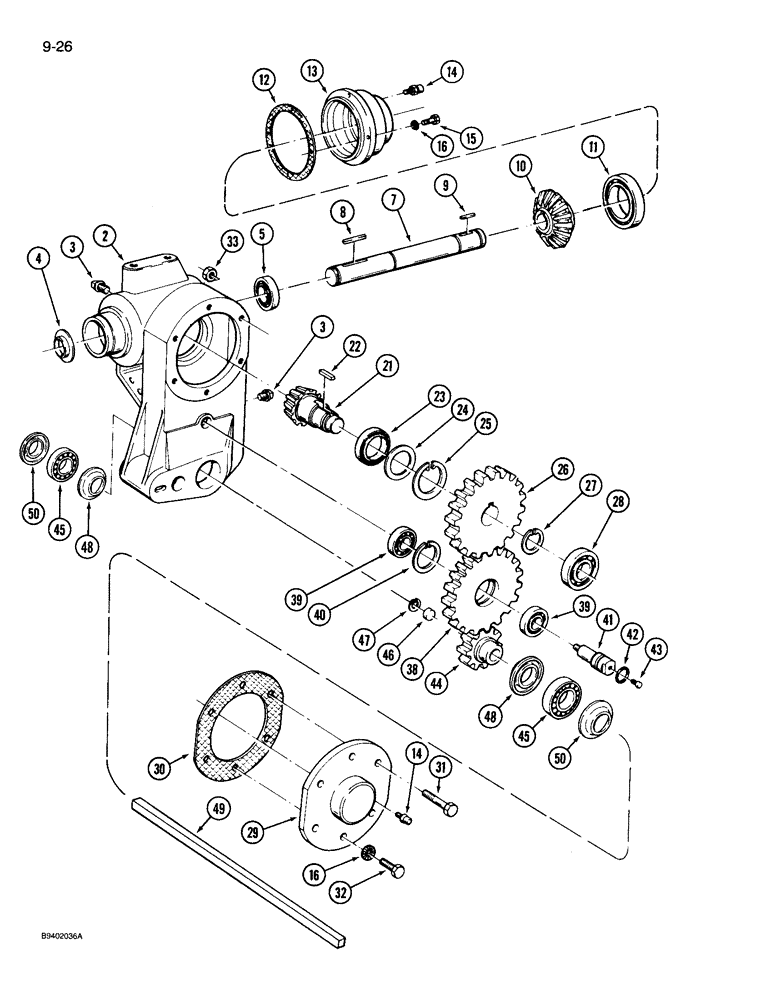

Запчасти Case IH 3206 (9-26) - ZA526176 GEARBOX (09) - CHASSIS/ATTACHMENTS

ZA526176

TERMINAL BOX

GEARBOX ASSEMBLY - mower

1шт.

ref #8 (P/N 832-41320) - subs to 832-41310, 10mm.

1шт.

Each P/N ZA526209 knife holder (Ref. 4) and P/N ZA526399 cutter bar disc (Ref. 5) can be upgraded to later production, if desired, by ordering one P/N ZA527236 block (except for outer disc), two P/N 27431R1 bolts, two P/N ZA527733 bolts, two P/N 492-11038 lock washers, two P/N ZA526472 shields, two P/N ZA526904 stops, and two P/N ZA526905 nuts, plus (for outer disc only) one P/N ZA527342 block, one P/N ZA527332 cap, and four more P/N ZA527733 bolts. These parts are shown in Fig. 9-18.

1шт.

2

ZA526177

CASE

HOUSING - gearbox, not available, order ZA527238 housing, ZA527262 gear, ZA527264 shaft, two ZA527263 bearings, 800-2147 ring, and two ZA527239 plugs. See page 9-29.

1шт.

3

ZA526186

PLUG

- housing

2шт.

4

ZA526185

SHIELD

COVER - bearing dust

1шт.

5

117510R91

BEARING, BALL

BEARING - ball

1шт.

6

800-1135

SNAP RING,M35, Ext

Retaining, if used (not shown) M35, Ext

3шт.

7

ZA526184

SHAFT

- input

1шт.

8

ZA526255

KEY

- shaft, 10 x 8 x 70 mm

1шт.

9

ZA526247

KEY

- shaft, 10 x 8 x 63 mm

1шт.

10

ZA526183

GEAR

- bevel

1шт.

11

ZA526245

BALL BEARING

BEARING - ball

1шт.

12

ZA526180

SHIM,0.10mm Thk

Housing 0.10mm Thk

1шт.

12

ZA526181

SHIM,0.20mm Thk

Housing 0.20mm Thk

1шт.

12

ZA526182

SHIM,0.50mm Thk

Housing 0.50mm Thk

1шт.

13

ZA526179

HOUSING

- input shaft

1шт.

14

ZA526178

PLUG

- vent, required for machine serial numbers prior to 503 (3204 mower), 502 (3205 mower), and 551 (3206 mower)

2шт.

14

ZA526428

PLUG

- vent, late production (Replaces ZA526178)

2шт.

15

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

16

892-11010

LOCK WASHER,M10

if used M10

7шт.

21

ZA526187

SHAFT

- pinion gear

1шт.

22

ZA526249

KEY

- 12 x 8 x 25 mm

1шт.

23

361017R91

BALL BEARING,1.9685" ID x 3.5433 mm OD x 0.7894 mm

- ball

1шт.

24

ZA526191

SHIM

- pinion gear, standard

1шт.

24

ZA526188

SHIM,0.10mm Thk

Pinion gear 0.10mm Thk

1шт.

24

ZA526189

SHIM,0.30mm Thk

Pinion gear 0.30mm Thk

1шт.

24

ZA526190

SHIM,0.50mm Thk

Pinion gear 0.50mm Thk

1шт.

25

933077R1

SNAP RING,M90, Int

RING - retaining

1шт.

26

ZA526193

GEAR

- drive

1шт.

27

933572R1

SNAP RING,M42, Ext

RING - retaining

1шт.

28

ST213

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

BEARING - ball, if used

1шт.

29

ZA526196

COVER

- gearbox

1шт.

30

ZA526195

GASKET

- cover

1шт.

31

30032R1

BOLT,Hex, M10 x 1.5 x 85mm, Cl 10.9

- hex, 10 x 85 mm

3шт.

32

628-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

3шт.

33

832-41310

NUT,M10 x 1.5, Cl 10

NUT - hex, self-locking, 10 mm - 1.5, class 10

3шт.

38

ZA526200

GEAR

- counter spur

1шт.

39

ZA526253

BALL BEARING

BEARING - ball

2шт.

40

933167R1

SNAP RING,M42, Int

RING - retaining

1шт.

41

ZA526199

SHAFT

- intermediate

1шт.

42

ZA526198

O-RING

- intermediate shaft

1шт.

43

ZA526197

PLUG

- intermediate shaft

1шт.

44

ZA526202

GEAR

- output

1шт.

45

295109R91

BALL BEARING

- ball, if used

2шт.

46

ZA526221

DISC

- gear, if used

1шт.

47

933695R1

SNAP RING,M18, Int

RING - retaining, if used

1шт.

48

ZA526474

SHIELD

- bearing, if used

2шт.

49

REF

INSTRUCTION

SHAFT - drive, see page 9-22

1шт.

50

ZA526230

RING

SHIELD - bearing

2шт.
