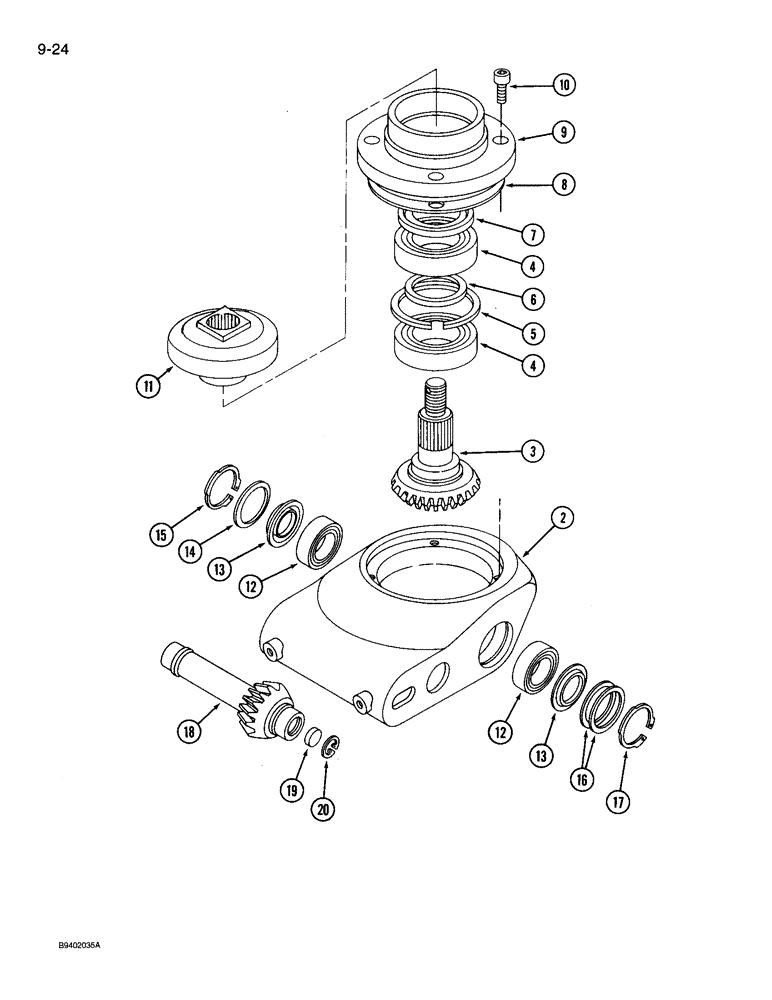

Запчасти Case IH 3206 (9-24) - DISC DRIVE GEARBOX (09) - CHASSIS/ATTACHMENTS

ZA526205

DRIVE ASSY.

GEARBOX - disc drive, right

1шт.

ZA526206

DRIVE ASSY.

GEARBOX - disc drive, left

1шт.

2

ZA526052

HOUSING

- gearbox

1шт.

3

ZA526053

GEAR SHAFT

SHAFT - gear, driven

1шт.

The nut that goes on ref #3 za526053 is za526905 takes two. sb nhfsb01690. 8-4-98 cw

1шт.

4

ZA526057

BALL BEARING,45mm ID x 75mm OD x 16mm W

BEARING - ball (Replaces ST3006)

2шт.

5

ZA526067

RING

- bearing retaining

1шт.

6

ZA526064

SPACER

- bearing

1шт.

7

ZA526063

SHIELD

- bearing

1шт.

8

ZA526059

SHIM,0.10mm Thk

Housing 0.10mm Thk

1шт.

8

ZA526060

SHIM,0.25mm Thk

Housing 0.25mm Thk

1шт.

8

ZA526070

SHIM,0.50mm Thk

Housing 0.50mm Thk

1шт.

9

ZA526056

HOUSING

- bearing

1шт.

10

861-8020

HEX SOC SCREW,M8 x 20mm, Cl 12.9

SCREW - hex socket, 8 - 1.25 x 20 mm, class 12.9

4шт.

11

ZA526055

HUB

- drive

1шт.

12

ZA526036

BALL BEARING,24.99mm ID x 47mm OD x 12mm W

BEARING - housing

2шт.

13

ZA526061

SHIELD

- bearing

2шт.

14

ZA526896

SPRING

- washer (Replaces ZA526062)

1шт.

15

ZA526066

RING

- retaining

1шт.

16

ZA526035

SHIM

- gearshaft, thin

1шт.

16

ZA526034

SHIM

- gearshaft, intermediate

1шт.

16

ZA526033

SHIM

- gearshaft, thick

1шт.

17

800-2147

SNAP RING,M47, Int

RING, SNAP, M47, Int

1шт.

18

ZA526054

SHAFT

- gear, drive

1шт.

19

ZA526221

DISC

- gearshaft (Outer drive only)

1шт.

20

933695R1

SNAP RING,M18, Int

RING - retaining (Outer drive only)

1шт.

ZA526204

GREASE

- special, 3.35 ounce (0.099 liter) per gearbox

1шт.

ZA745212

GREASE

- special, 16 ounce

1шт.
