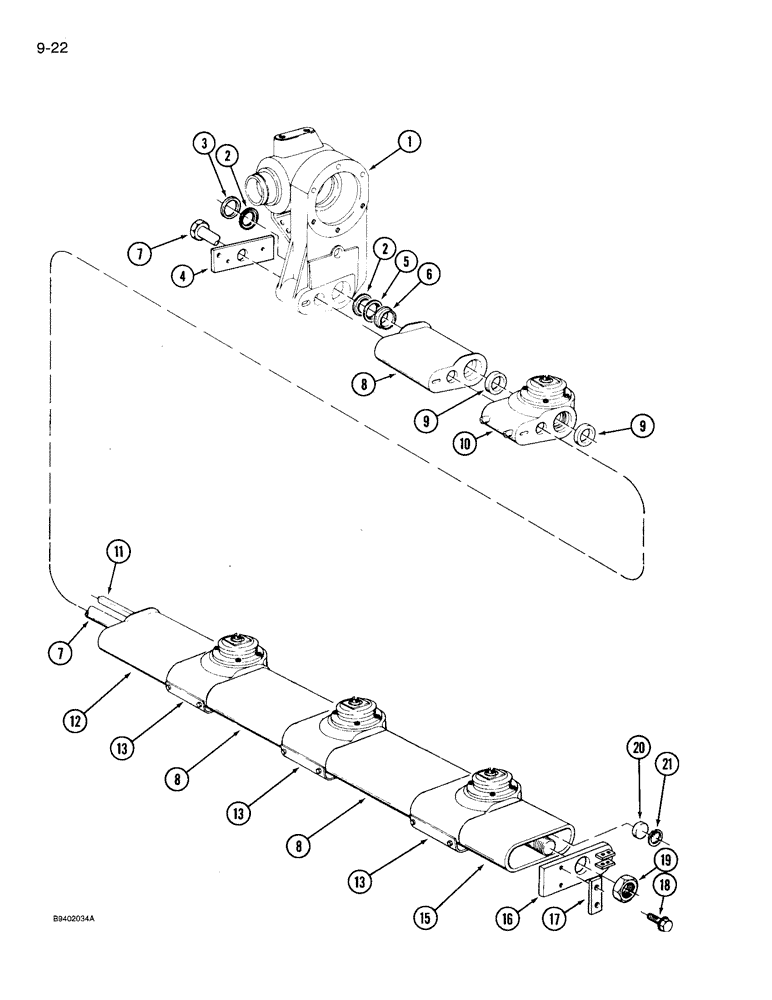

Запчасти Case IH 3206 (9-22) - CUTTER BARS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

HOUSING - gearbox, see pages 9-27 - 9-31

1шт.

2

ZA526230

RING

- connecting rod

2шт.

3

ZA526231

RING

- support

1шт.

4

ZA526232

COVER

- cutter bar

1шт.

5

ZA526229

WASHER

- spring

1шт.

6

ZA526228

RING

SPACER - ring

1шт.

7

ZA526276

ROD

- connecting, 3204 mower

1шт.

7

ZA526227

ROD

- connecting, 3205 mower

1шт.

7

ZA526278

ROD

- connecting, 3206 mower

1шт.

8

ZA526219

BLOCK

SPACER - block, all except second from gearbox housing

3-5шт.

9

ZA526218

RING

SPACER - ring

8-12шт.

10

ZA526206

DRIVE ASSY.

DRIVE ASSEMBLY - disc, left-hand, counterclockwise rotation

2-3шт.

10

ZA526205

DRIVE ASSY.

DRIVE ASSEMBLY - disc, right-hand, clockwise rotation

2-3шт.

11

ZA526275

SHAFT

- drive, 3204 mower

1шт.

11

ZA526226

SHAFT

- drive, 3205 mower

1шт.

11

ZA526277

SHAFT

- drive, 3206 mower

1шт.

12

ZA526220

BLOCK

SPACER - block, second from gearbox housing, 3205 mower only

1шт.

12

ZA526219

BLOCK

SPACER - block, second from gearbox housing, 3204 and 3206 mowers

1шт.

13

ZA526234

SLIDE

SKID - mower, see page 9-15

4-6шт.

ZA526438

SHOE

PLATE - skid wear, replaces ZA526238, see page 9-15

4-6шт.

15

ZA526225

BLOCK

SPACER - block, end

1шт.

16

ZA526172

PLATE

ASSEMBLY - end

1шт.

17

ZA526224

PLATE

- lock

1шт.

18

905-10025

BOLT,Hex Flg, M10 x 25mm

- hex flange, 10 x 25 mm

2шт.

19

ZA526257

NUT

- hex, 30 mm

1шт.

20

ZA526221

DISC

- drive shaft stop, outer disc drive

1шт.

21

933695R1

SNAP RING,M18, Int

RING - retaining, replaces ZA526222

1шт.
