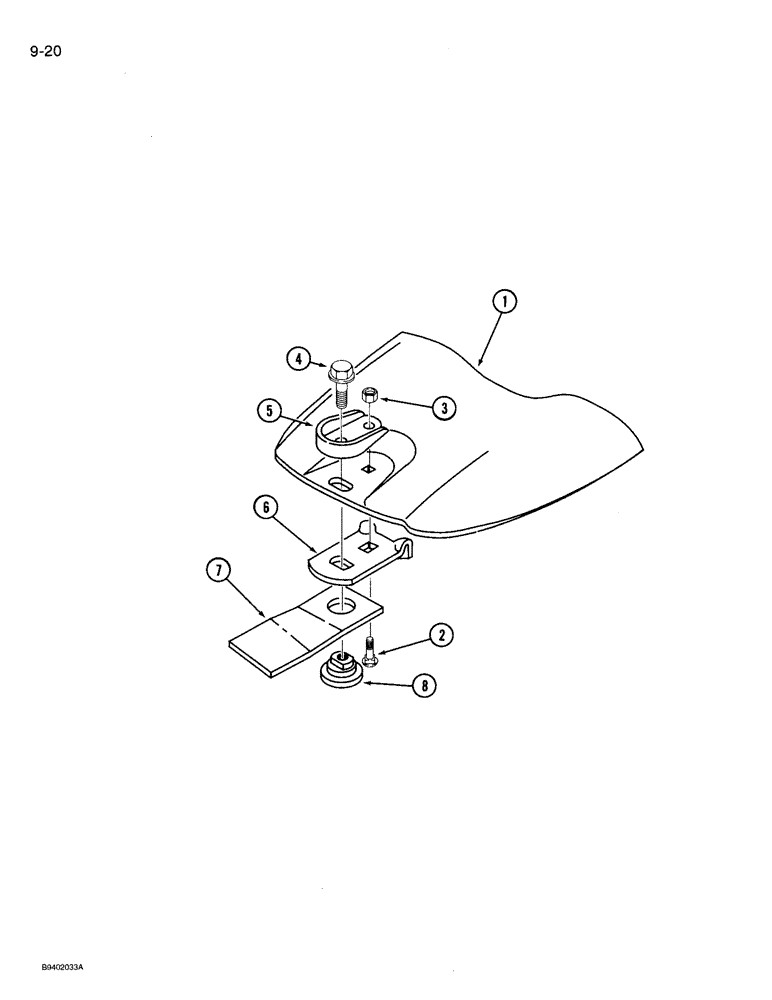

Запчасти Case IH 3206 (9-20) - HEAVY DUTY CUTTER BAR DISC AND KNIFE ASSEMBLY (09) - CHASSIS/ATTACHMENTS

124540A1

ROTOR

DISC ASSEMBLY - clockwise rotation, heavy duty conversion kit

2-3шт.

124541A1

ROTOR

DISC ASSEMBLY - counterclockwise rotation, heavy duty conversion kit

2-3шт.

1

113386A1

DISC

- cutterbar

1шт.

2

420-2614

PLOW BOLT,#3, 3/8" - 16 x 7/8", Gr 8

BOLT - plow, 3/8 NC x 7/8 inch, grade 8

2шт.

3

232-4246

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

4

113381A1

BOLT

- special, 3/8 NF x 7/8 inch, grade 8

2шт.

5

113380A1

GUARD

SHIELD - bolt head

2шт.

6

113379A1

STOP

- knife

2шт.

7

113382A1

KNIFE

- right-hand (Clockwise rotation), standard pitch, if used

2шт.

7

113383A1

KNIFE

- left-hand (Counterclockwise rotation), standard pitch, if used

2шт.

7

113384A1

KNIFE

- right-hand (Clockwise rotation), high pitch, if used

2шт.

7

113385A1

KNIFE

- left-hand (Counterclockwise rotation), high pitch, if used

2шт.

8

113378A1

NUT

- cutterbar knife

2шт.
