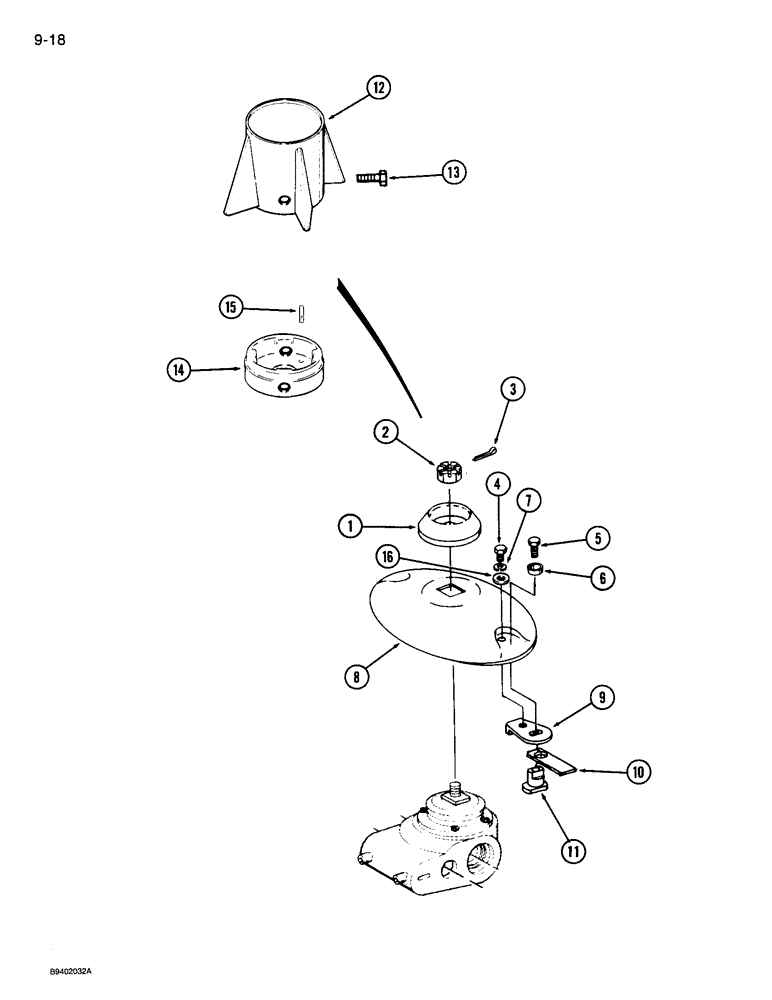

Запчасти Case IH 3206 (9-18) - CUTTER BAR DISCS AND KNIVES, OVERALL P.I.N. CCB0010501 AND AFTER OR MACHINE SERIAL NUMBER 000574 (09) - CHASSIS/ATTACHMENTS

1

ZA527236

BLOCK

- pressure

3-5шт.

2

ZA526207

NUT

- hex slotted, M18

4-6шт.

3

32-820

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

4-6шт.

4

27431R1

BOLT,Hex, 3/8" - 16 x 1/2", Gr 8

- hex lock, 3/8 NC x 1/2 inch Grade 8

8-12шт.

5

ZA527733

BOLT

- special, 3/8 x 7/8 inch, Grade 8, replaces ZA526903

8-12шт.

6

ZA526472

SHIELD

- bolt head

8-12шт.

7

492-11038

LOCK WASHER,3/8"

8-12шт.

8

122331A1

DISC

- cutter bar, replaces ZA526471

4-6шт.

9

ZA526904

STOP

- knife

8-12шт.

10

ZA526215

KNIFE

- right-hand (clockwise rotation), standard pitch, if used

4-6шт.

10

ZA526216

KNIFE

- left-hand (counterclockwise rotation), standard pitch, if used

4-6шт.

10

ZA527330

KNIFE

- right-hand (clockwise rotation), high pitch, if used

4-6шт.

10

ZA527331

KNIFE

- left-hand (counterclockwise rotation), high pitch, if used

4-6шт.

11

ZA526905

NUT

- cutter bar knife

8-12шт.

12

ZA527332

CAP

- disc, outer disc only

1шт.

13

ZA527733

BOLT

- special, 3/8 x 7/8 inch, Grade 8

4шт.

ZA527342

HUB

BLOCK ASSEMBLY - pressure, outer disc only

1шт.

14

NSS

NOT SOLD SEPARAT

BLOCK - pressure

1шт.

15

135-259

PIN

- roll, 1/4 x 1 inch

1шт.

16

396-31041

WASHER,10.31mm ID x 20.63mm OD x 3.4mm Thk

If used 13/32" x 13/16" x .134", HDN

8-12шт.
