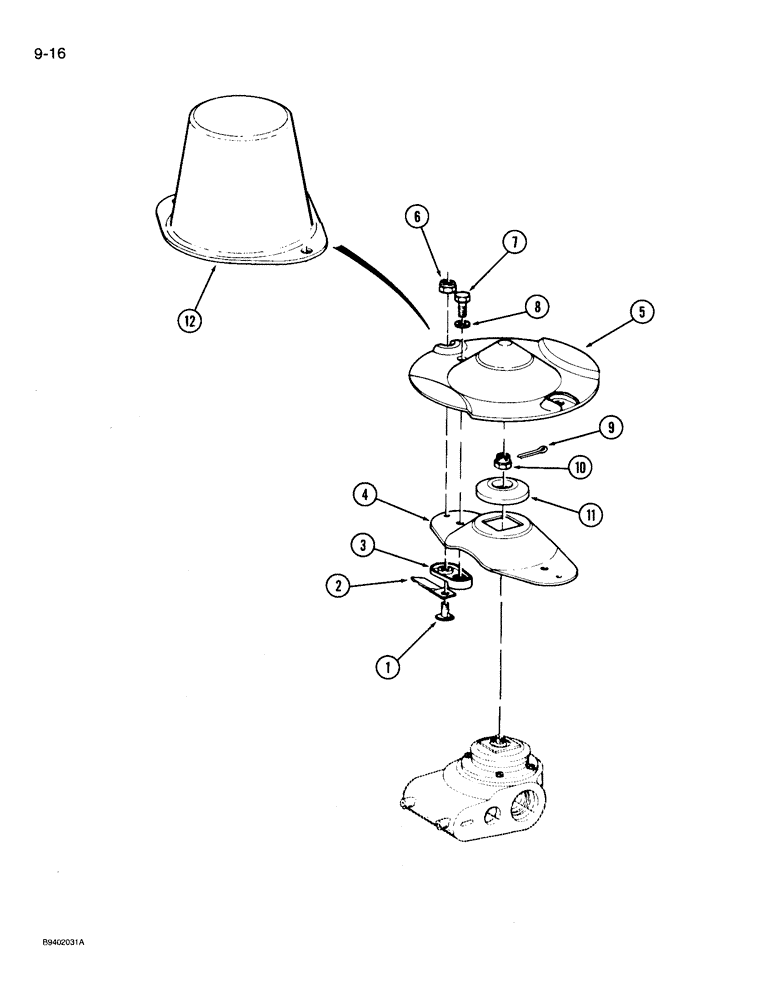

Запчасти Case IH 3206 (9-16) - CUTTER BAR DISCS AND KNIVES, PRIOR TO OVERALL P.I.N. CCB0010501 OR MACHINE SERIAL NUMBER 000574 (09) - CHASSIS/ATTACHMENTS

1

ZA526214

BOLT

- special, 10 mm

8-12шт.

2

ZA526215

KNIFE

- right-hand (clockwise rotation), standard pitch, if used

4-6шт.

2

ZA526216

KNIFE

- left-hand (counterclockwise rotation), standard pitch, if used

4-6шт.

2

ZA527330

KNIFE

- right-hand (clockwise rotation), high pitch, if used

4-6шт.

2

ZA527331

KNIFE

- left-hand (counterclockwise rotation), high pitch, if used

4-6шт.

3

ZA526217

STOP

- knife

8-12шт.

4

ZA526209

HOLDER

- knife

4-6шт.

Each P/N ZA526209 knife holder (Ref. 4) and P/N ZA526399 cutter bar disc (Ref. 5) can be upgraded to later production, if desired, by ordering one P/N ZA527236 block (except for outer disc), two P/N 27431R1 bolts, two P/N ZA527733 bolts, two P/N 492-11038 lock washers, two P/N ZA526472 shields, two P/N ZA526904 stops, and two P/N ZA526905 nuts, plus (for outer disc only) one P/N ZA527342 block, one P/N ZA527332 cap, and four more P/N ZA527733 bolts. These parts are shown in Fig. 9-18.

1шт.

5

ZA526399

DISC

- cutter bar

4-6шт.

Each P/N ZA526209 knife holder (Ref. 4) and P/N ZA526399 cutter bar disc (Ref. 5) can be upgraded to later production, if desired, by ordering one P/N ZA527236 block (except for outer disc), two P/N 27431R1 bolts, two P/N ZA527733 bolts, two P/N 492-11038 lock washers, two P/N ZA526472 shields, two P/N ZA526904 stops, and two P/N ZA526905 nuts, plus (for outer disc only) one P/N ZA527342 block, one P/N ZA527332 cap, and four more P/N ZA527733 bolts. These parts are shown in Fig. 9-18.

1шт.

6

832-41310

NUT,M10 x 1.5, Cl 10

NUT - hex, self-locking, 10 mm - 1.5, class 10

8-12шт.

7

613-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, 8 x 25 mm

8-12шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , Replaces 120214 5/16"

8-12шт.

9

32-820

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), , replaces 103386 1/8" x 1 1/4"

4-6шт.

10

ZA526207

NUT

- hex slotted, 18 mm

4-6шт.

11

ZA526208

BLOCK

- pressure

3-5шт.

12

ZA526233

CAP

- disc, outer disc only

1шт.
