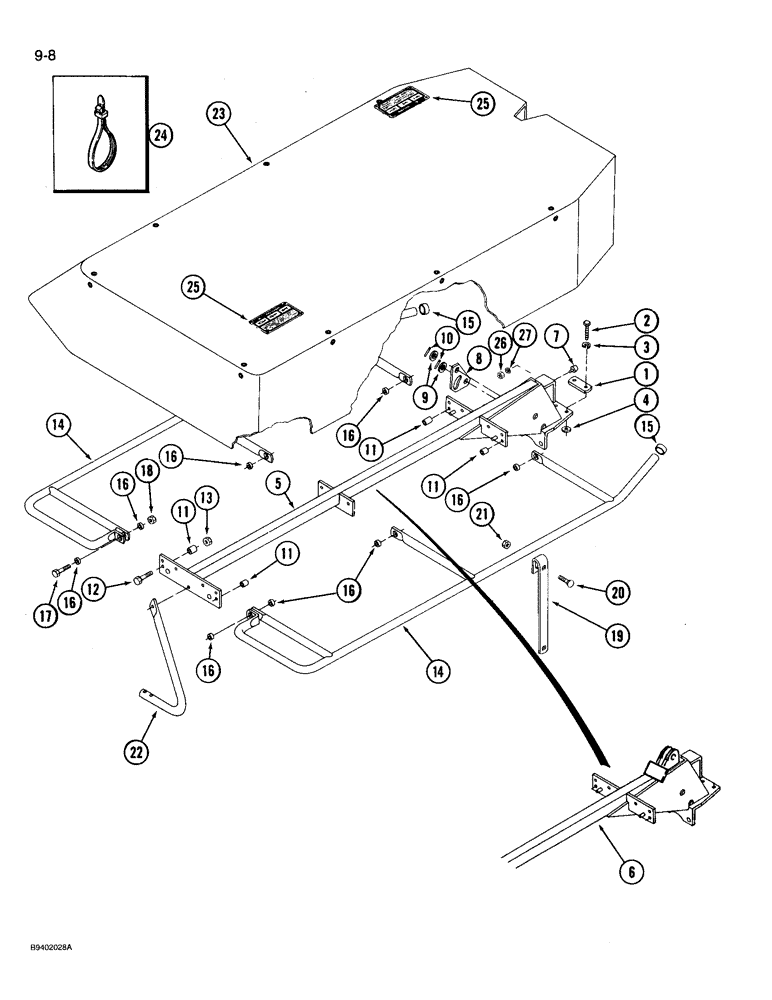

Запчасти Case IH 3206 (9-08) - MOWER COVER AND SUPPORTS (09) - CHASSIS/ATTACHMENTS

1

ZA526148

PLATE

SUPPORT - mounting bracket

1шт.

2

30846R1

BOLT,Hex, M14 x 2 x 35mm, Cl 10.9, Full Thd

- hex, 14 x 35 mm

2шт.

3

892-11041

WASHER - lock, 14 mm

2шт.

4

495-81136

WASHER,10.31mm ID x 25.4mm OD x 3.81mm Thk

- flat, 13/32 x 1 x 1/8 inch, if used

1шт.

5

ZA527917

FUNNEL

BRACKET - mounting (3204 Mower), replaces ZA526014, no longer available, order one ZA526665 bracket, one ZA527988 link, and two 495-81205 washers (items 6, 8, and 9, below)

1шт.

5

ZA527918

FUNNEL

BRACKET - mounting (3205 Mower), replaces ZA526015, no longer available, order one ZA526666 bracket, one ZA527988 link, and two 495-81205 washers (items 6, 8, and 9, below)

1шт.

5

ZA527919

FUNNEL

BRACKET - mounting (3206 Mower), replaces ZA526016

1шт.

ZA740950

DECAL

- warning, not shown, not available, order ZA211862, see page 9-37 for decals

2шт.

6

ZA526665

FUNNEL

BRACKET - mounting (3204 Mower), replaces ZA527917

1шт.

6

ZA526666

FUNNEL

BRACKET - mounting (3205 Mower), replaces ZA527918

1шт.

ZA211862

WARNING DECAL

DECAL, WARNING, Keep shields in place, Not shown, Replaces ZA740950, See page 9-37 for decals

2шт.

7

1337163C1

BUMPER

- rubber

1шт.

8

ZA526141

LINK

- lift, used with item 5 brackets, above

1шт.

8

ZA527988

LINK

- lift, used with item 6 brackets, above

1шт.

9

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 7/64", Replaces 614451R1, Used with item 5 brackets, above

2шт.

9

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-9/32 x 2 x 3/64 inch, used with item 6 brackets, above

2шт.

10

38-32032

PIN,7.92mm OD x 50.8mm L

2шт.

11

612233R1

SPACER,5/8" Tube x 1 1/8"

- 13/32 x 5/8 x 1-3/16 inch

4шт.

12

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

4шт.

13

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

4шт.

14

ZA526040

SUPPORT

- mower cover (3204 Mower)

2шт.

14

ZA526041

SUPPORT

- mower cover (3205 Mower)

2шт.

14

ZA526042

SUPPORT

- mower cover (3206 Mower)

2шт.

15

ZA526285

CAP

- support, vinyl

2шт.

16

1337162C1

SPACER

BUSHING - 25/64 x 9/16 x 5/16 inch

8шт.

17

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

17

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

18

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

1шт.

19

ZA526022

STRAP

- weight

3шт.

20

433-632

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 2", G5

3шт.

21

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

3шт.

22

ZA527171

SUPPORT

- mounting bracket, replaces ZA526072

1шт.

#22 - if looking for bolts at end of this part use #17 per TSG - ae 8/98

1шт.

23

ZA526030

CURTAIN

COVER - mower (3204 Mower)

1шт.

23

ZA526031

CURTAIN

COVER - mower (3205 Mower)

1шт.

23

ZA526032

CURTAIN

COVER - mower (3206 Mower)

1шт.

24

1958319C1

STRAP

- nylon retaining, replaces 28962C1

14шт.

25

ZA526020

PRODUCT GRAPHIC

SIGN - danger (See Page 9-37)

2шт.

26

425-106

NUT,3/8"-16, Cl 5

1шт.

27

492-11038

LOCK WASHER,3/8"

1шт.
