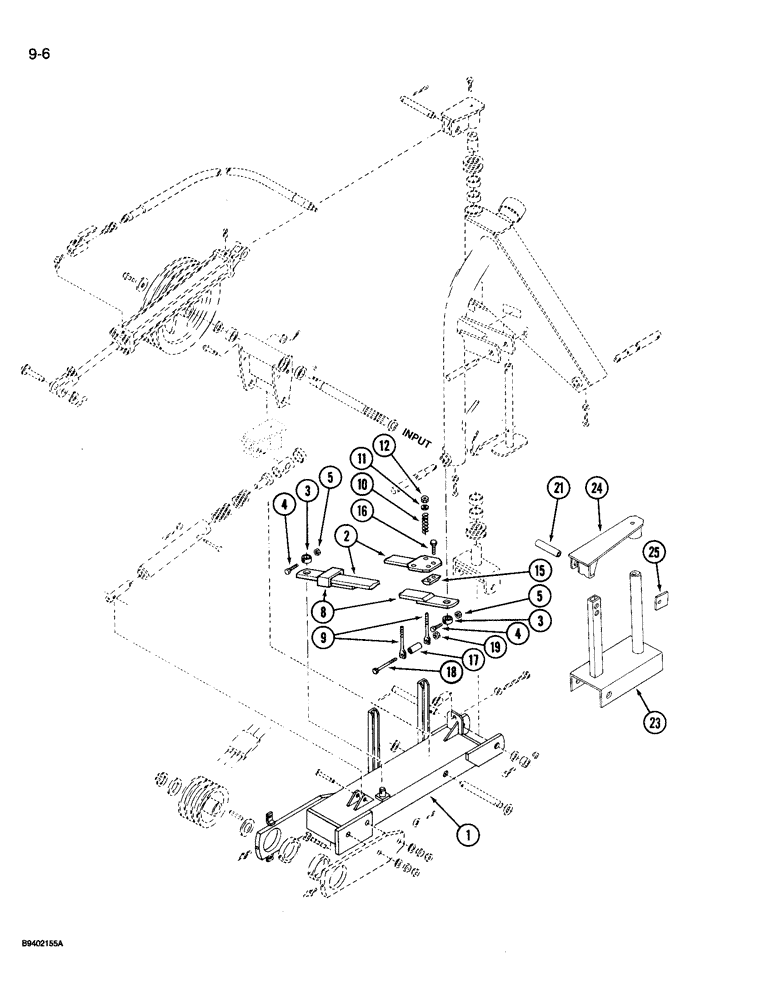

Запчасти Case IH 3206 (9-06) - MAIN FRAME, LOWER (09) - CHASSIS/ATTACHMENTS

1

ZA526101

BEAM

FRAME - main, lower

1шт.

2

ZA526476

LATCH

ASSEMBLY - frame (Replaces ZA526263)

1шт.

3

ZA526169

STOP

- 1-3/4 x 1-1/2 x 7/8 inch

2шт.

4

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch (Replaces 180044)

2шт.

5

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

2шт.

8

ZA526479

BAR

BRACKET - catch (Replaces ZA526267)

1шт.

9

ZA526478

SHIELD

EYEBOLT - Retaining (Replaces ZA526266)

2шт.

10

1337161C1

SPRING

- latch

2шт.

11

495-81162

WASHER,17/32" x 1 1/2" x .179"

- flat, 17/32 x 1-1/2 x 11/64 inch

2шт.

12

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

2шт.

15

ZA526167

BAR

SUPPORT - latch bar

1шт.

16

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

17

ZA713127

SPACER

- 33/64 x 3/4 x 1-7/8 inch (outer)

1шт.

18

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex, 3/8 NC x 3-1/4 inch

1шт.

21

ZA526483

SPACER

(inner)

1шт.

REF

INSTRUCTION

OFFSET HITCH ATTACHMENT (ZA5408007)

1шт.

23

ZA526455

PIVOT

- extension

1шт.

24

ZA526456

EXTENSION

ANCHOR - cylinder extension

1шт.

25

ZA527069

PLATE

- pivot

1шт.
