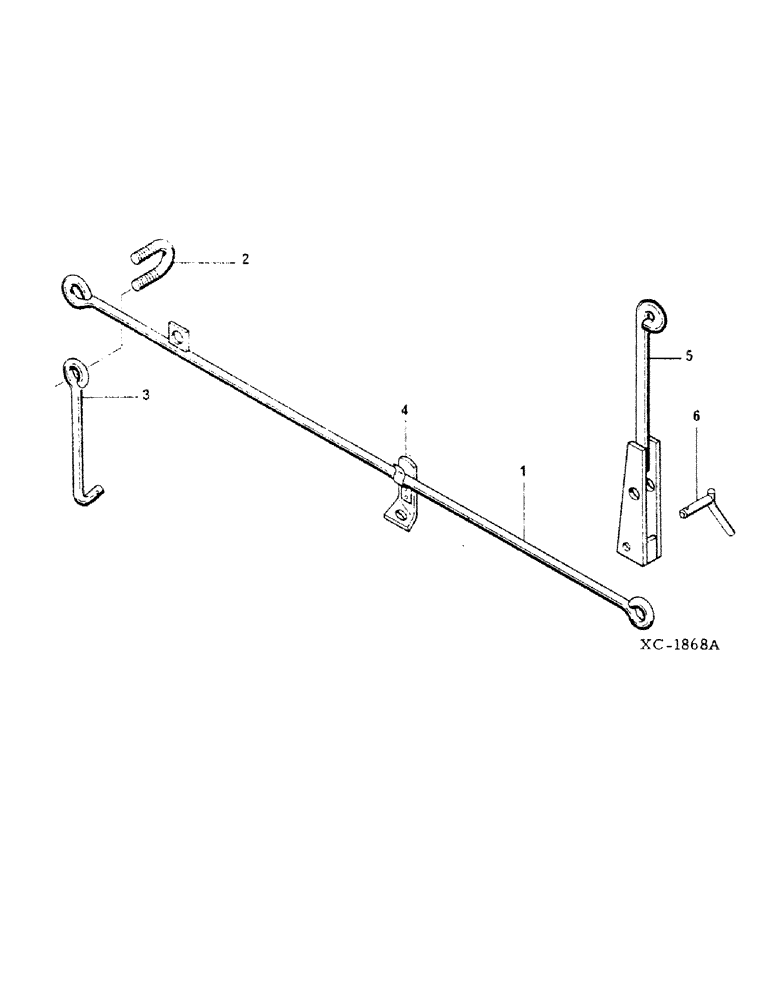

Запчасти Case IH 3106 (A-04) - STAY ROD, 3106 MOWERS

1

3167968R1

ROD

stay

2шт.

517843R1

COTTER PIN

PIN, quick-attaching

1шт.

2

3159024R1

BOLT

U-BOLT

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

102639

NUT,5/8"-11, G5

4шт.

3

3166270R1

HOOK

1шт.

517843R1

COTTER PIN

PIN, quick-attaching

1шт.

4

3167970R1

HOLDER

stay rod, chain lifting

1шт.

4

3176593R1

ROD

HOLDER, stay rod, direct lifting

1шт.

179798

BOLT,Hex, 1/4" - 20 x 1 1/8", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK 1/4"

1шт.

109084

NUT,1/4"-20, G5

1шт.

5

3174813R1

EXTENSION

stay rod, replaces 3172497R1

1шт.

905334R1

PIN

20 x 50mm headed

1шт.

6

3172501R1

PIN

linch

1шт.

739059R2

CLIP

PIN, quick-attaching

1шт.
