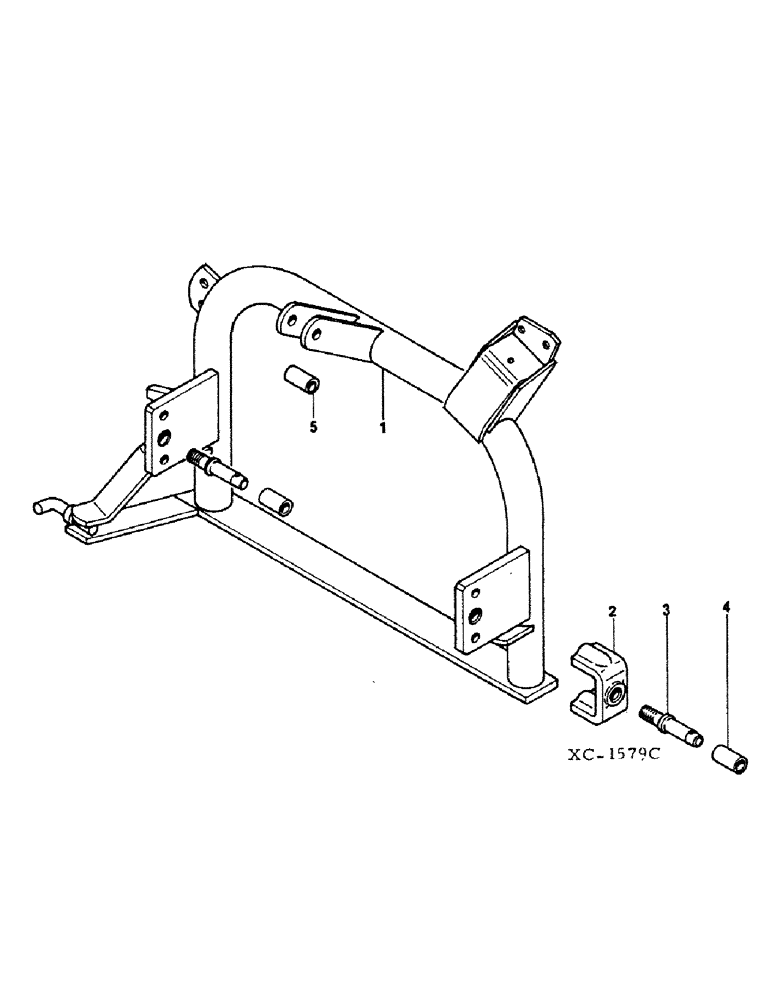

Запчасти Case IH 3106 (A-02) - MAIN FRAME

1

3158976R2

FRAME

MAIN FRAME, 3104 w/chain lifting

1шт.

1

3176585R1

FRAME

MAIN FRAME, 3104 w/direct lifting

1шт.

1

3174811R1

FRAME

MAIN FRAME, 3106 w/chain lifting

1шт.

1

3176586R1

FRAME

MAIN FRAME, 3106 w/direct lifting

1шт.

2

3158993R1

SUPPORT

hitch axle

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

3

1405984R11

PIVOT PIN

AXLE, w/two nuts, 933489R1, hitch

1шт.

933489R1

NUT

22mm hex. jam

2шт.

933490R1

WASHER

22mm lock

2шт.

4

3013957R1

BUSHING

hitch axle

2шт.

5

791241R1

SPACER

BUSHING, hitch upper

1шт.

746788R1

PIN

3/4 x 3-7/8 headed, drilled

1шт.

700387R1

CLIP, SPRING

PIN, quick attaching

1шт.
