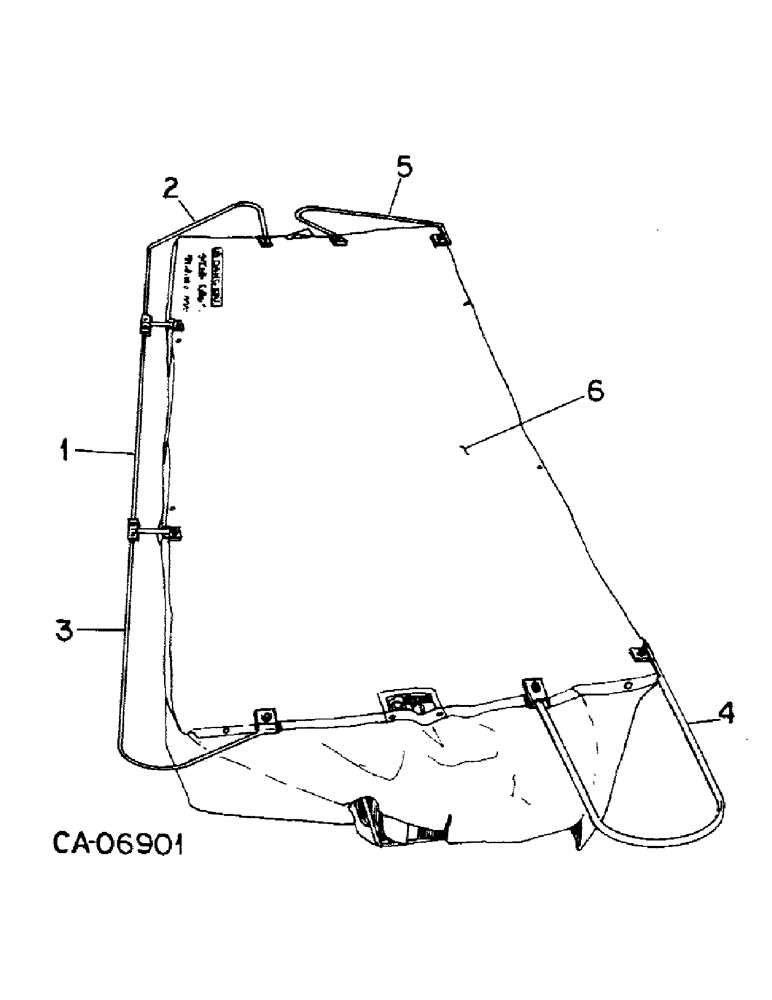

Запчасти Case IH 3106 (A-25) - GUIDE RAILS, 3106

1

3176712R1

SHIELD

RAIL, front center guide

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16 x 1 crg type 5

2шт.

934767R1

WASHER

9 x 22 x 1.5mm

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

2

3176708R1

RAIL

front RH guide

1шт.

434-524

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2", G5

BOLT, 5/16 x 1-1/2 crg type 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

3

3176704R1

RAIL

front LH guide

1шт.

434-524

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2", G5

BOLT, 5/16 x 1-1/2 crg type 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

4

3176706R1

SHIELD

RAIL, rear LH guide

1шт.

434-524

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2", G5

BOLT, 5/16 x 1-1/2 crg type 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

5

3176710R2

RAIL, rear RH guide

1шт.

434-524

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2", G5

BOLT, 5/16 x 1-1/2 crg type 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

6

3174948R92

SKIRT

1шт.

3159140R1

STRIP

6шт.

22237R1

WASHER

.203 x .750 x .054

12шт.
