Запчасти Case IH 3106 (A-17) - CUTTER BAR, 3106

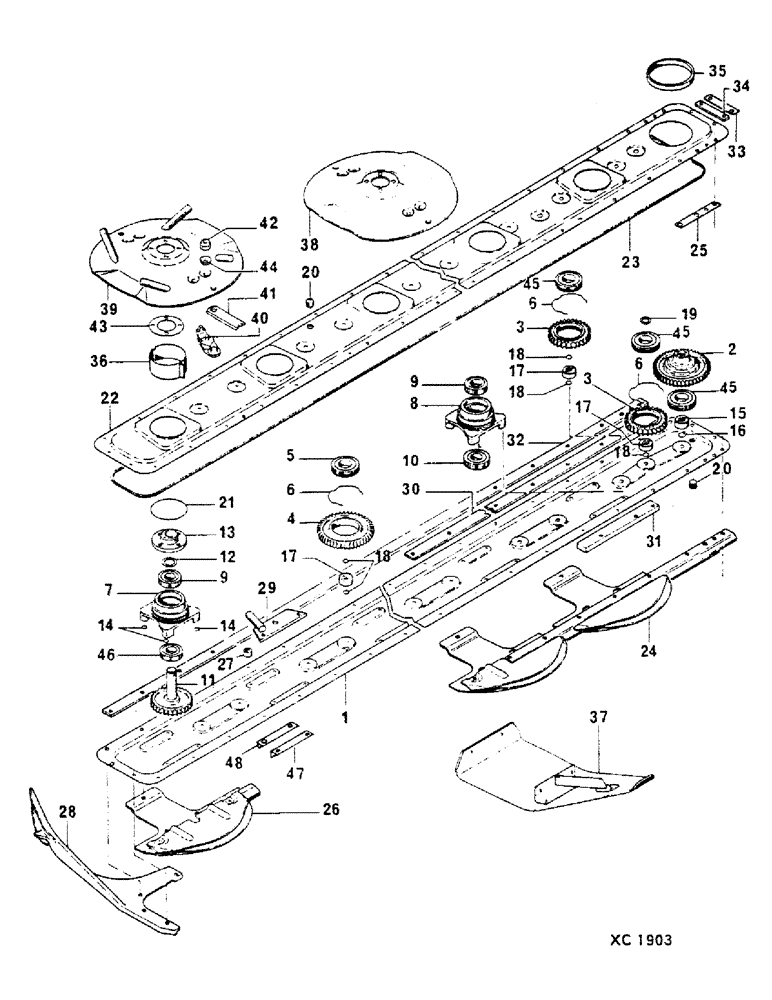

Схема запчастей Case IH 3106 - (A-17) - CUTTER BAR, 3106

Артикул

Название

Примечание

Количество

1

3177515R91

CASE

ASSY, gear, consists of ref no. 1 thru 23, 24 & 36

1шт.

1

3172510R1

CASE

gear

1шт.

2

3164596R1

GEAR

drive

1шт.

3164612R1

BOLT,Hex Flange, M12 x 1.75 x 20mm, Steel

12 x 20mm special

1шт.

3

3164597R1

GEAR

intermediate 33 teeth

2шт.

3164613R1

BOLT,Hex Serr Flg, M12 x 30mm

12 x 30mm special

1шт.

3164614R1

BOLT

12 x 36mm special

1шт.

3164621R1

NUT

12mm special

1шт.

3161013R1

LOCK NUT

12mm special

1шт.

4

3164598R1

GEAR

intermediate 45 teeth

10шт.

3164614R1

BOLT

12 x 36mm special

10шт.

3161013R1

LOCK NUT

12mm special

10шт.

5

3164599R91

BEARING

ball, used on 45 tooth intermediate gears

10шт.

6

3165340R1

RING

snap

12шт.

7

3164601R1

HOUSING

bearing

5шт.

3164608R1

BOLT,Flange, M10 x 1.5 x 20mm, Steel

10 x 20mm special

20шт.

8

3172512R1

HOUSING

bearing

1шт.

3164608R1

BOLT,Flange, M10 x 1.5 x 20mm, Steel

special

4шт.

9

616154R91

BEARING, BALL

upper

6шт.

10

3174393R91

BEARING

ball, lower in first housing

1шт.

11

3164603R1

GEAR

disc

6шт.

12

3164606R1

SHIM

adjusting

18шт.

13

3164607R2

HUB

6шт.

Q5348

LOCK PIN,10mm OD x 45mm L, Slotted

PIN, LOCK, M10 x 45, Slotted

6шт.

932323R1

LOCK PIN,M6 x 45, Slotted

PIN, 6 x 45mm roll

6шт.

14

355966R1

O-RING,0.424" ID x 0.103" Width

7/16 x 5/8 class 5

24шт.

15

3164609R2

STUD

1шт.

16

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/4 x 15/16 class 5

1шт.

17

3164610R1

STUD

12шт.

18

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 class 5

1шт.

19

3164611R1

WASHER

SEAL

1шт.

20

444788

DRAIN PLUG,Sq Soc, 1/2"-14 NPTF

PLUG, 1/2-14 pln sq/skt auto drain

1шт.

21

3165341R1

O-RING

6шт.

22

3172513R1

COVER

gear case

1шт.

3164608R1

BOLT,Flange, M10 x 1.5 x 20mm, Steel

10 x 20mm special

5шт.

3164634R1

BOLT,Hex Flange, M10 x 1.5 x 25mm, Steel

10 x 257m special

7шт.

3164631R1

BOLT,Hex Flange, M10 x 1.5 x 35mm, Steel

10 x 35mm special

6шт.

31679951

BOLT, 10 x 45mm special

7шт.

3164637R1

BOLT,Hex Flange, M12 x 1.75 x 50mm, Steel

12 x 50mm special

4шт.

3177418R1

BOLT,Hex Flange, M12 x 1.75 x 60mm, Steel

12 x 55m special

2шт.

3177419R1

BOLT,Hex Flange, M12 x 1.75 x 70mm, Steel

12 x 70mm special

2шт.

3164622R1

LOCK NUT

10mm special

24шт.

3161013R1

LOCK NUT

12mm special

4шт.

23

3172517R1

O-RING

1шт.

24

3172527R1

REINFORCEMENT

front, with skids

1шт.

3164634R1

BOLT,Hex Flange, M10 x 1.5 x 25mm, Steel

10 x 25mm special

5шт.

25

3172523R1

SHIM

0.5mm

1шт.

25

3172524R1

SHIM

0.2mm

1шт.

26

3164628R3

PLATE

SKID, outer disc, wearing

4шт.

3164608R1

BOLT,Flange, M10 x 1.5 x 20mm, Steel

10 x 20mm special

8шт.

930265R1

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

24шт.

Q108

WASHER

11 x 25 x 1.5mm plain

3шт.

575807R1

WASHER

11 x 25 x 3mm plain

3шт.

3164622R1

LOCK NUT

12mm special

8шт.

27

3164630R1

BUSHING

SPACER

2шт.

28

3172484R2

SUPPORT

grassboard

1шт.

29

3172519R1

PLATE

retainer

1шт.

30

3172521R1

REINFORCEMENT

1шт.

31

3168000R1

REINFORCEMENT

front lower

1шт.

32

3172522R1

REINFORCEMENT

rear upper

1шт.

33

3172525R1

SHIM

.5mm

1шт.

33

3172526R1

SHIM

.2mm

1шт.

34

3168006R2

SPACER

1шт.

35

3168007R1

RING

1шт.

36

3169520R1

SHIELD

6шт.

930264R1

BOLT

6 x 16mm hex. head

6шт.

933411R1

WASHER

6mm lock

6шт.

933445R1

NUT

6mm hex.

6шт.

37

3164641R2

SOLE

inner

1шт.

3164608R1

BOLT,Flange, M10 x 1.5 x 20mm, Steel

10 x 20mm special

4шт.

38

3173934R1

DISC

5шт.

931458R1

SCREW,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

BOLT, M10 x 20 PHC class 8.8

20шт.

39

3173937R2

DISC

outer

1шт.

931458R1

SCREW,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

BOLT, M10 x 20 PHC class 8.8

4шт.

40

3173938R2

DISC

HOLDER, knife

12шт.

41

3164894R3

KNIFE

domed

12шт.

42

3169585R1

LOCK NUT,M12 x 1.75, Cl 8

NUT, self-locking

12шт.

43

3164890R1

SHIM

adjusting

1шт.

44

3173833R1

WASHER

CUPEL

12шт.

45

3174391R91

BALL BEARING

ball

3шт.

46

3174392R91

BEARING

ball

5шт.

47

3174822R1

PLATE

tightening, long

2шт.

48

3174823R1

PLATE

tightening, short

2шт.

Выбрано товаров: 83
