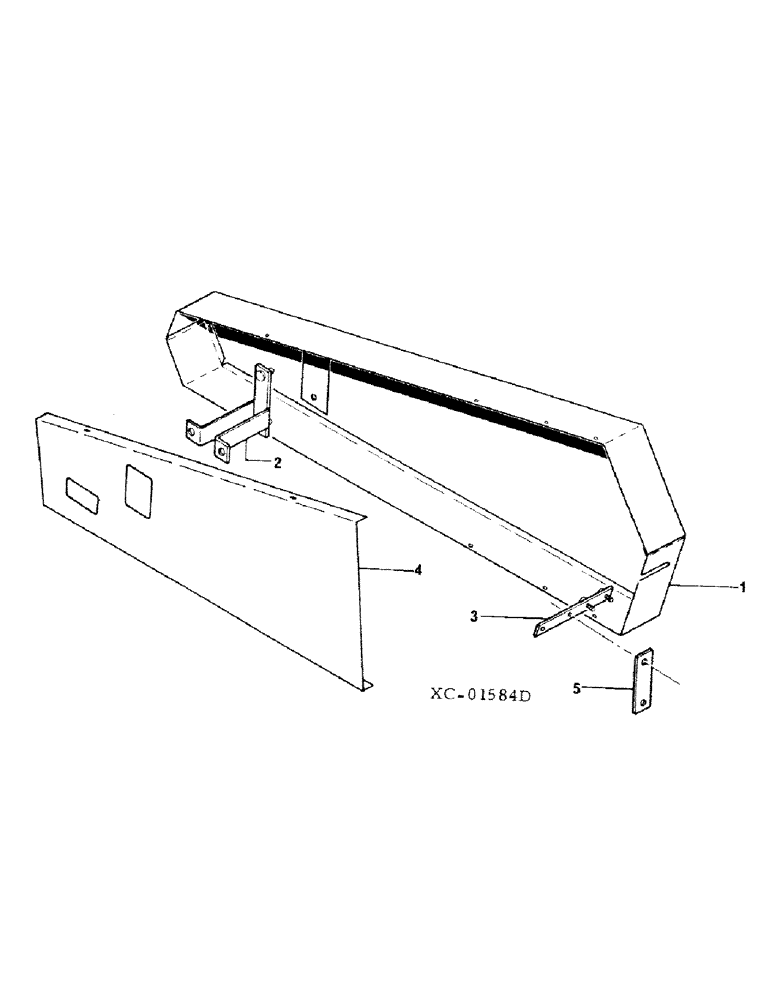

Запчасти Case IH 3104 (A-10) - BELT SHIELD, 3104

1

3171753R2

HOUSING

SHIELD, replaces 3159065R92

1шт.

2

3159071R1

SUPPORT

shield

1шт.

933643R1

WASHER

10 x 24 x 1.5mm plain

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

3

3171758R1

STRAP

shield

1шт.

3

3159074R1

STRAP

shield, former mounting

1шт.

933643R1

WASHER

10 x 24 x 1.5mm plain

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

179842

SPACER

BOLT, 3/8 x 1-3/8 pln type 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

4

3171756R91

SHEET

shield front, replaces 3167950R91, consists of

1шт.

3167949R1

NUT

6mm speed

4шт.

930775R1

BOLT,Hex, M6 x 1 x 10mm, Cl 8.8, Full Thd

SCREW, 6 x 10 mm hex. hd mach

4шт.

933522R1

WASHER

6 mm lock

4шт.

5

3171759R1

SPACER

1шт.
