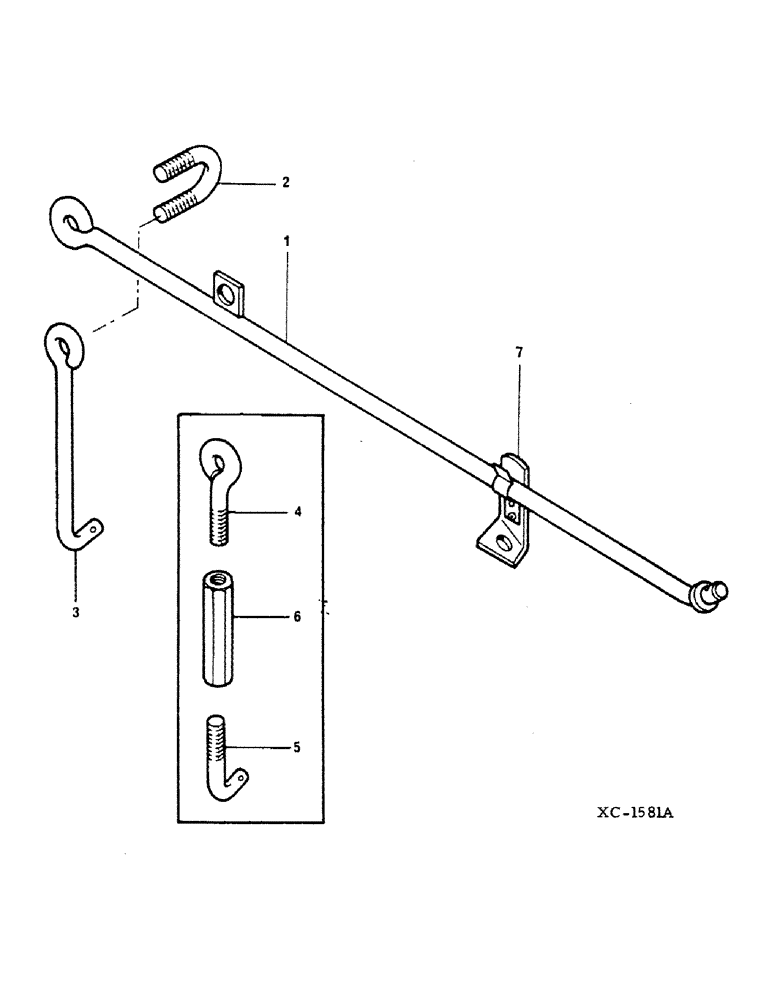

Запчасти Case IH 3104 (A-03) - STAY ROD, 3104 MOWERS

1

3166269R1

ROD

stay, cutter bar, replaces 3159021R1 by also providing 3166270R1

1шт.

517843R1

COTTER PIN

PIN, quick attaching

1шт.

2

3159024R1

BOLT

U BOLT

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

102639

NUT,5/8"-11, G5

4шт.

3

3166270R1

HOOK

not mounting

1шт.

517843R1

COTTER PIN

PIN, quick-attaching

1шт.

4

3159025R1

BOLT (SPREADER)

EYE BOLT, former mounting

1шт.

5

3159026R1

HOOK

former mounting

1шт.

6

791003R1

TURNBUCKLE

former mounting

1шт.

7

3159027R1

NOZZLE HOLDER

HOLDER, stay rod, chain lifting

1шт.

7

3176592R1

PASTE

HOLDER, stay rod, direct lifting

1шт.

179798

BOLT,Hex, 1/4" - 20 x 1 1/8", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK 1/4"

1шт.

109084

NUT,1/4"-20, G5

1шт.
