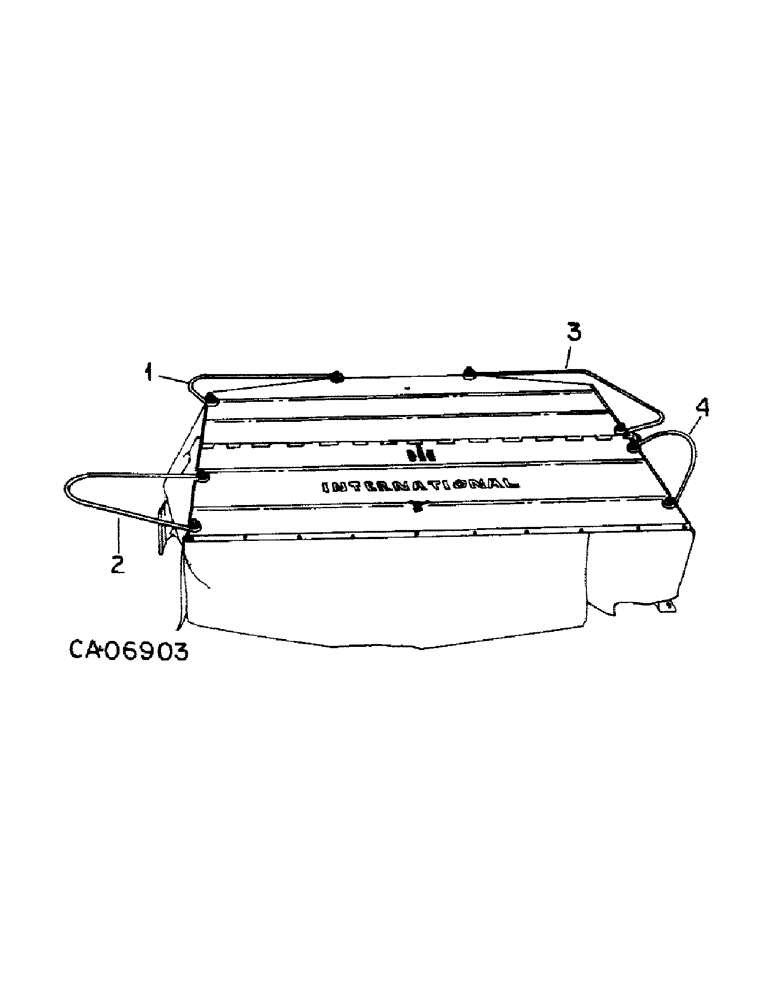

Запчасти Case IH 3104 (A-24) - GUIDE RAILS, 3104

1

3176700R1

SHIELD

RAIL, front LH guide

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

2шт.

934767R1

WASHER

9 x 22 x 1.5mm

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

2

3176701R1

SHIELD

RAIL, rear LH guide

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

2шт.

934767R1

WASHER

9 x 22 x 1.5mm

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

3

3176702R1

SHIELD

RAIL, front RH guide

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

2шт.

934767R1

WASHER

9 x 22 x 1.5mm

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

4

3176703R1

SHIELD

RAIL, rear RH guide

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

2шт.

934767R1

WASHER

9 x 22 x 1.5mm

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.
